100a SP+NE Cut Out Assy – Series 7
from only £31.34 Ex VAT

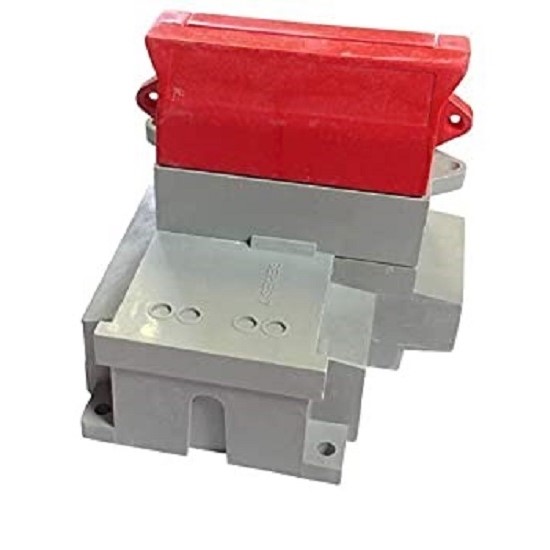

WT Henley 100a SP+NE Cut Out Assy – Series 7
The market leading Series 7 range, sets the standard for safety and convenience in House Service Cut-outs. Designed for Combined Neutral and Earth (CNE) systems, rated up to 100A and fully compliant with BS 7657:2010
- Glass reinforced Polyester (DMC) material provides strength, durability and excellent tracking resistance
- Tamper resistant ‘pin & plug’ protects unused cable entries
- Sharply serrated double entry phase and neutral terminals are suitable for either aluminium or copper conductors from 2.5mm2 up to 35mm2 and socket headed terminal screws (operated by a custom designed tool) ensure effective and secure connections
- Fuse-clips are precision designed to ensure low contact resistance every time
- All phase terminal screws are held captive within the base to make installation as simple as possible
- Designed to ensure secure connection and low contact resistance throughout
- Close-coupled version interfaces with industry standard meter types to prevent theft of supply
- Fully compliant with BS 7657:2010
