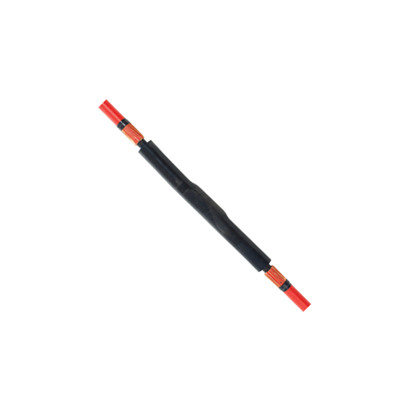

3M Premium Range (QS1000) Cold Shrink Joint - Unarmoured
from only £385.30 Ex VAT
QS1000 series inline cold shrink joints for single core unarmoured XLPE cables
3M™ QS1000 Cold Shrink Series Kits are designed for inline splicing up to 12kV Umax voltage class, Single core polymeric power cable systems with copper wire screen according to HD 620 (IEC 60502).
- Designed to join inline 11kV single core copper wire screen unarmoured XLPE cables
- Low temperature installation
- No heat or flame is needed during splice body installation
- Solderless earth connection by means of Copper Stocking and Constant Force springs
- Thick walled, EPDM rubber Cold Shrink outer re-jacketing tubes provide mechanical protection and moisture sealing of the completed Inline joints
- Faster installation time saving labour costs
- The versatile design of the prefabricated one-piece cold shrink splice body allows installation on a wide range of cable sizes and types and a fast and easy installation at temperatures ranging from - 20°C to + 50°C.
- No special tools are needed during splice installation
- Kit contents - splice body, EPDM outer sleeve, mastic and earthing kit
*EXCLUDES CONNECTORS*
- Tested in accordance CENELEC specification HD629 which encompasses the BS, VDE etc.
- 3M™ QS1000 Inline Joint Series meets and exceeds the requirements of the European standard CENELEC HD 629.1 and IEC 60502-4. See Independent Test Report No. I0436-0E
- The shelf life of 3M™ QS1000 Series Inline Joints is specified as 3 years
- Temperature: - 40°C to +50°C
