3M Premium Range QSIII


from only £498.75 Ex VAT

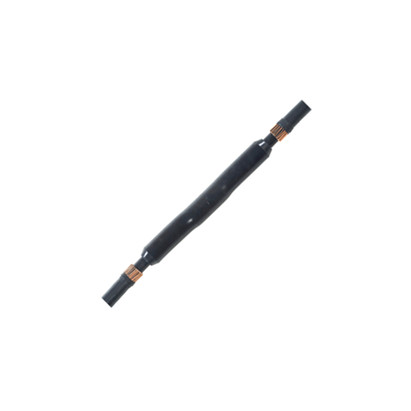

3M QSIII 7 QS2000 series inline cold shrink joints for single core unarmoured XLPE cables

Designed to join inline 33kV single core copper wire screened unarmoured XLPE cables

  • Low temperature installation
  • Faster installation time saving labour costs
  • Tool free installation
  • Use build up kit 94-PG-620-1 when primary insulation is smaller than 28.4mm
  • Kit contents - splice body, EPDM outer sleeve, mastic and earthing kit

*EXCLUDES CONNECTORS*

Technical Data
  • Tested in accordance CENELEC specification HD629 which encompasses the BS, VDE etc.
Order
Part Number Diameter Over Primary Insulation Conductor Size Price Ex VAT Quantity
94-AP631-1 28.4-42.0mm 185-400mm² £498.75
