3M Cold Applied Boots
from only £120.70 Ex VAT
3M Cold Applied Boot
Used in switchgear and transformers where the clearances are insufficient for operation in air or to protect against flash over due to rodents or extreme humidity
- Versatile design allows reliable installations on a wide range of cable terminations and bushings
- Requires no heat or special tools to install
- High interface pressure ensures absolute water tightness
- Compatible with industry approved cable cleaners
- Corrugated centre allows straight and right angle applications
- Designed to fit all typical standard cable lugs
- Suitable for cable sizes: 50-300mm2 at 11kV
Product Overview

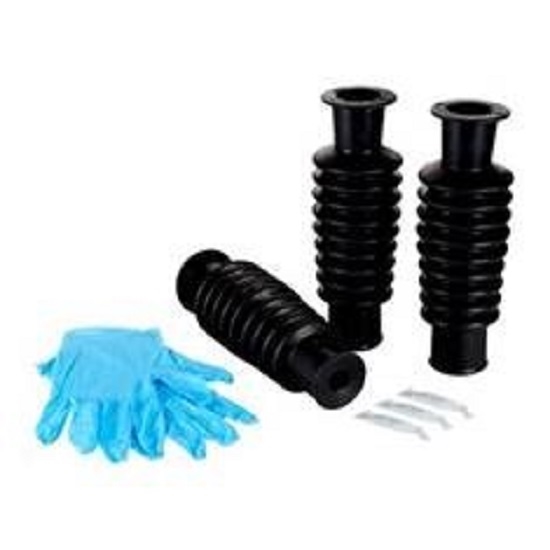

- 3M Barrier Boot Kit 92-EE 717-1 is a innovative kit containing 3 barrier boots, 3 plastic gloves, 3 packets of silicone grease, installation instructions.
- Use 3M Barrier Boot kit 92-EE 717-1 on indoor terminations of power cables maximum rated up to 15 kV, having extruded insulations of polyethylene (high and low density), cross linked polyethylene (XLPE), ethylene propylene rubber (EPR) and aluminium or copper conductors.
- The kit requires no heat or special tools to install. Its versatile design allows reliable installations on a wide range of cable terminations and bushings.
- The high interface pressure ensures absolute water tightness and the kit is compatible with industry approved cable cleaners.
- It’s designed to fit all typical standard cable lugs and the corrugated centre allows straight and right angle applications.
- For rated voltages 6.35/11(12) kV and 8.7/15(17.5) kV
- The Barrier Boot kit 92-EE 717-1 has a specified shelf life of 3 years and can be stored at -40 °C to +50 °C (short term peaks at 60 °C max).
