3Mâ„¢ Constant Force Springs


from only £2.00 Ex VAT

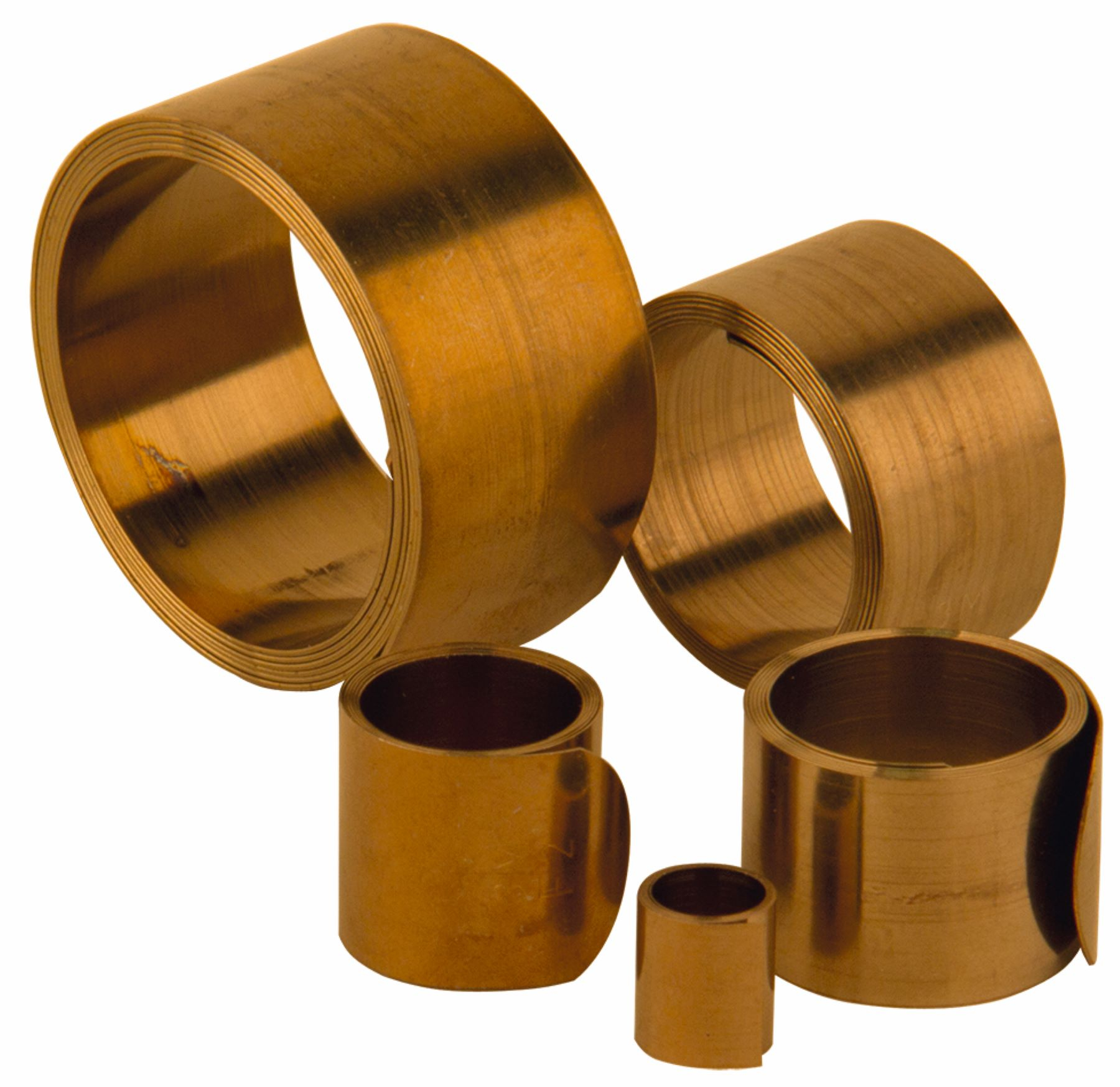

3M™ Constant Force Springs, for Solderness Connections.

3M™ Constant Force Spring is a solderless connection, making it ideal for use on lead and aluminium cable sheaths, cable screening tapes or wires and steel or aluminium armor wires.

  • 3M™ Constant Force Spring is designed for earthing or grounding applications. The spring applies a uniform radial pressure onto the cable when it is rolled onto the cable core or outside diameter.
  • Applies a uniform radial pressure onto the cable
  • For use in earthing or grounding applications
  • Used on lead and aluminium cable sheaths, cable screening tapes or wires and steel or aluminium armour wires
  • Solderless connection



Technical Data
  • Material:  Stainless steel
  • RoHS 2011/65/EU Compliant
Order
Part Number Wolseley Code SAP ID Range Price Ex VAT Quantity

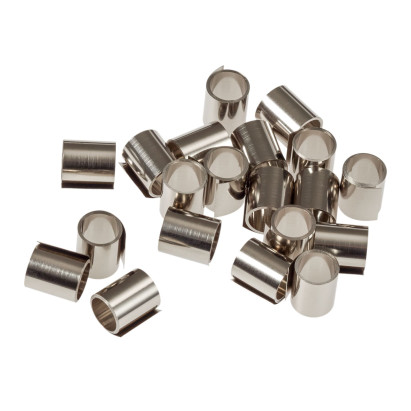

P60 CJ2012 7000032605 9-15mm £2.00
P61 CJ2159 7000032606 14-22mm £3.40
P62 CJ3260 7000032607 18-29mm £3.68
P63 CJ2163 7000032608 23.5-37mm £4.10
P64 CJ2164 7000032609 31-50mm £4.73
P65 CJ3683 7000032610 44-70mm £7.88
P66 CJ4299 58-94mm £9.92
