LV Inline Joints Petrochemical
from only £110.25
Inline petrochemical resin joints for LV armoured power cables
Designed to connect inline multi-core, armoured polymeric, low voltage energy cables in hazardous areas
- Two part mould body with snap fit closing system for quick and easy handling
- Transparent flame retardant mould body for easy control of connector distances
- Flame retardant according to UL94 V0
- Chemical resistant, especially against hydro carbons
- Large shell design allows the use of mechanical connectors
- Clear resin bags to aid with the mixing process
- Supplied with NEW European standard (REACH) compliant 1402 FR hazardous area resin

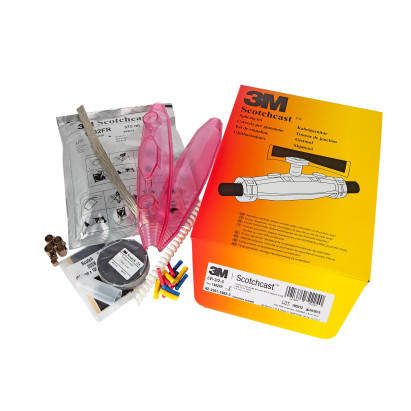

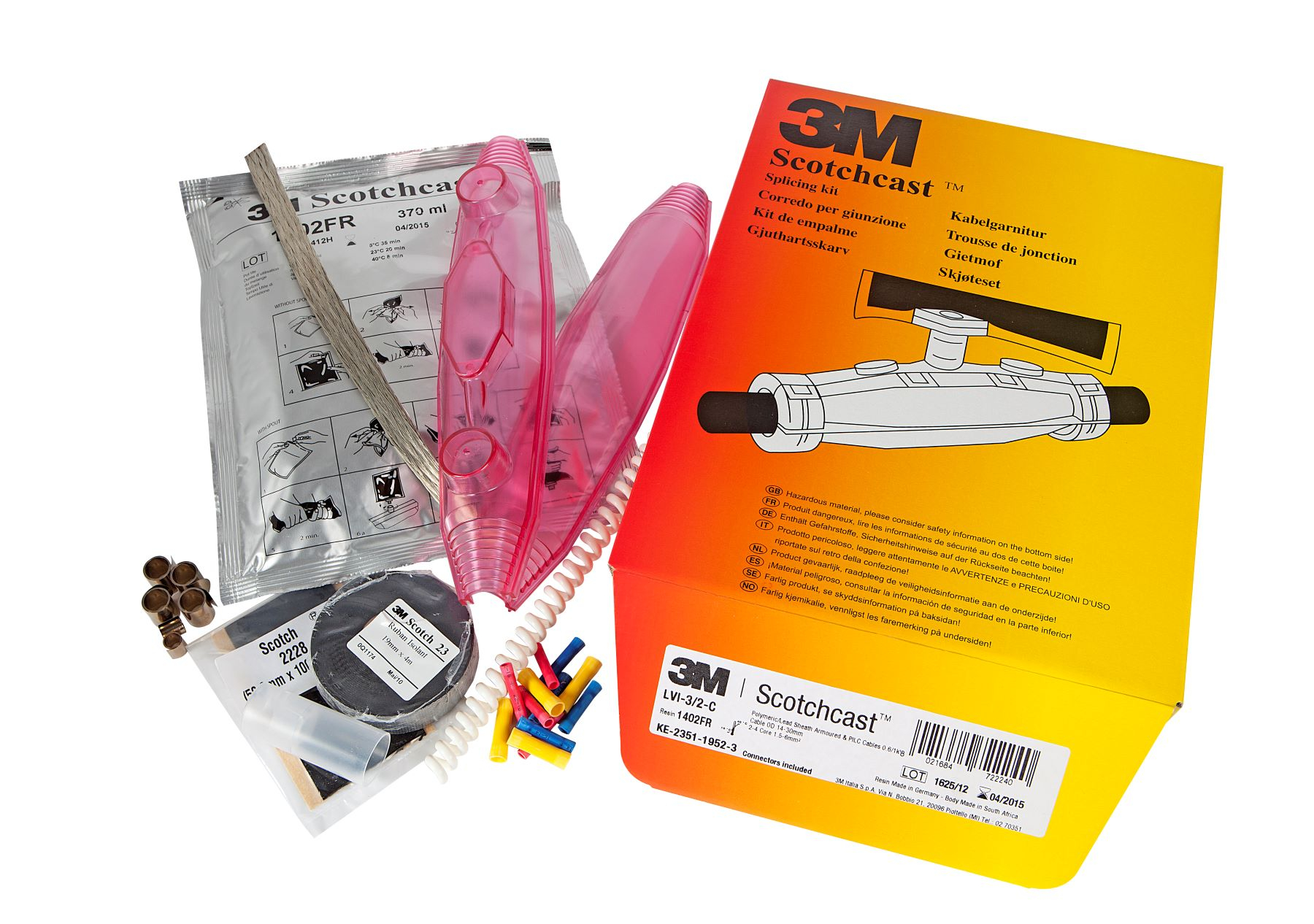

- Kit comprises mould shell, Scotchcast 1402 resin and earth bonding kit
CONNECTORS NOT INCLUDED, PLEASE ORDER SEPARATELY
- 3.3kV Rated
- Tested to Cenelec HD623 (EN 50392)
- Supplied with re-formulated resin conforming to European legislation (REACH)
