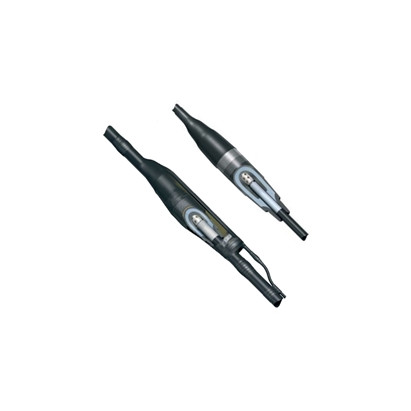

ABB Inline combination joints for single core unarmoured XLPE cables

For jointing XLPE- or EPR-insulated 52–123 kV cables with Al- or Cu-conductor and different cable sheaths

• Designed to join inline single core 52 & 72kV unarmoured XLPE cables
• Premolded three layer rubber body supplied with (JX) or without (JS) screen interruption
• Prefabricated for safe and easy installation
• Compact joint for minimal cable stripping
• Please contact your nearest sales office with details of full cable specification prior to order
• Joint manufactured by joint specialists ABB
• The joint body is made of rubber in three layers: a conductive outer layer, an insulating layer and a conductive inner layer in one piece
• The cable joint is supplied with bolt connector and heat-shrink outer jacket
• A torque wrench, mounting kit, installation cone and installation tool RKM 145 are needed for assembling
• For corrugated aluminium and stainless steel, the flux is not included in the soldering kit. For flux, please contact your local supplier
