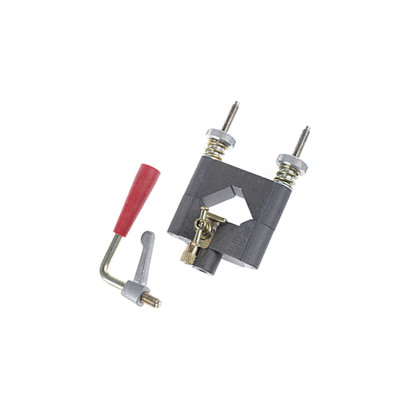

Alroc Bonded Screen Removal Tool

Alroc semi-conductive screen stripping tools are used by high voltage cable jointers to strip bonded semi-conductive screens from 6.6kV, 11kV and 33kV high voltage power cables

Alroc stripping tools can effectively remove the bonded semi-conductor from the HV cables

• Blade length can be adjusted to suit the cable
• Cuts cleanely, leaving a straight edge perfect for LV-HV cable jointing
• Robust design for excellent on site service
• Adjustable handle for comfort
• Lockable blade depth
• 25mm strip length for 11kV
• 40mm strip length for 33kV
• Spare blades available
• Application range: ø 10 - 52 mm
• Insulation thickness: 0 - 1,5 mm
• Max. rotating diameter: 200 mm
• Suggested application:  Vulcanized, extruded, bonded semiconductive layer

Technical Characteristics

• Positioning on the cable through vice system
• Begin stripping can be done from any position on the cable
• Axial feed activation/deactivation device, both directions possible (outside -> inside: 25mm layer remains, inside -> outside: 6mm of layer remains)
• Lightweight, durable design due to the use of light metals, surface anodized
• Optimal sliding properties due to coated contact surfaces
• Interchangeable blade
• Rotation enables to work on limited space
• Perfect circular cut
• Step by step depth adjustment (with locking possibility)
• 235 x 200 x 55 mm
