Sicuro Trefoil – STC Series
from only £0.27 Ex VAT

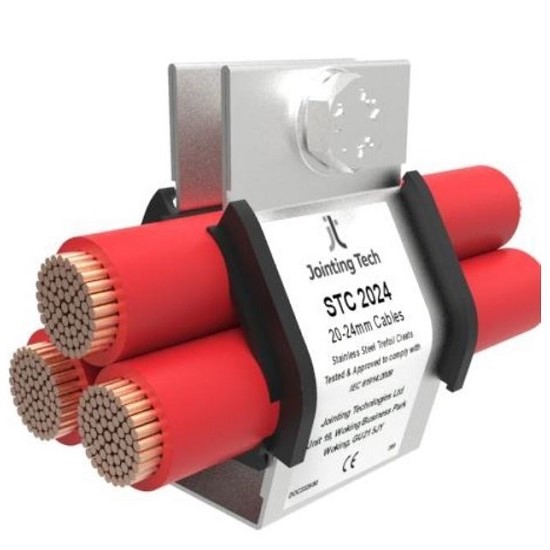

Stainless Steel Trefoil Cleat
The STC series of cleats support and secure all cables in Trefoil formation throughout the system ensuring system integrity is maintained and cable damage can be prevented
- STC cleats are compliant with IEC 61914: 2015
- The cleat body fastening are manufactured from 1.3mm thick 316L corrosion resistant non-magnetic 316L stainless steel making them ideal for use in harsh environments such as marine and offshore applications
- The main cleat fastening bolt is retained to ease installation
- Cleat liner is manufactured from an extruded polymer which is an LUL approved flame retardant halogen free polymer material
- Suitable for use with all standard ladder and tray systems
- Cable diameter range is 23-70mm
- Cleats are supplied with an easy fit spacer plate to assist with range take
*LSF Insulation Pad. This fits to the base of the cleat and is recommended to stop any cross-contamination when fixing the stainless steel cleat to dissimilar metals. It should be ordered when ordering cleats and will come fitted for the cleat ordered.
- Low, Medium and High voltage single core cables in Trefoil and single formation
- Cable diameters from 23mm - 70mm
- Suitable for harsh environments
- Suitable for use with all standard ladder and tray systems
- Operating temperature range is -45°C to +120°C
Manufacturer installation recommendations must be followed with regards cleat spacing
