Cembre B1350-CE Hydraulic Crimp Tool 18v


from only £124.00 Ex VAT

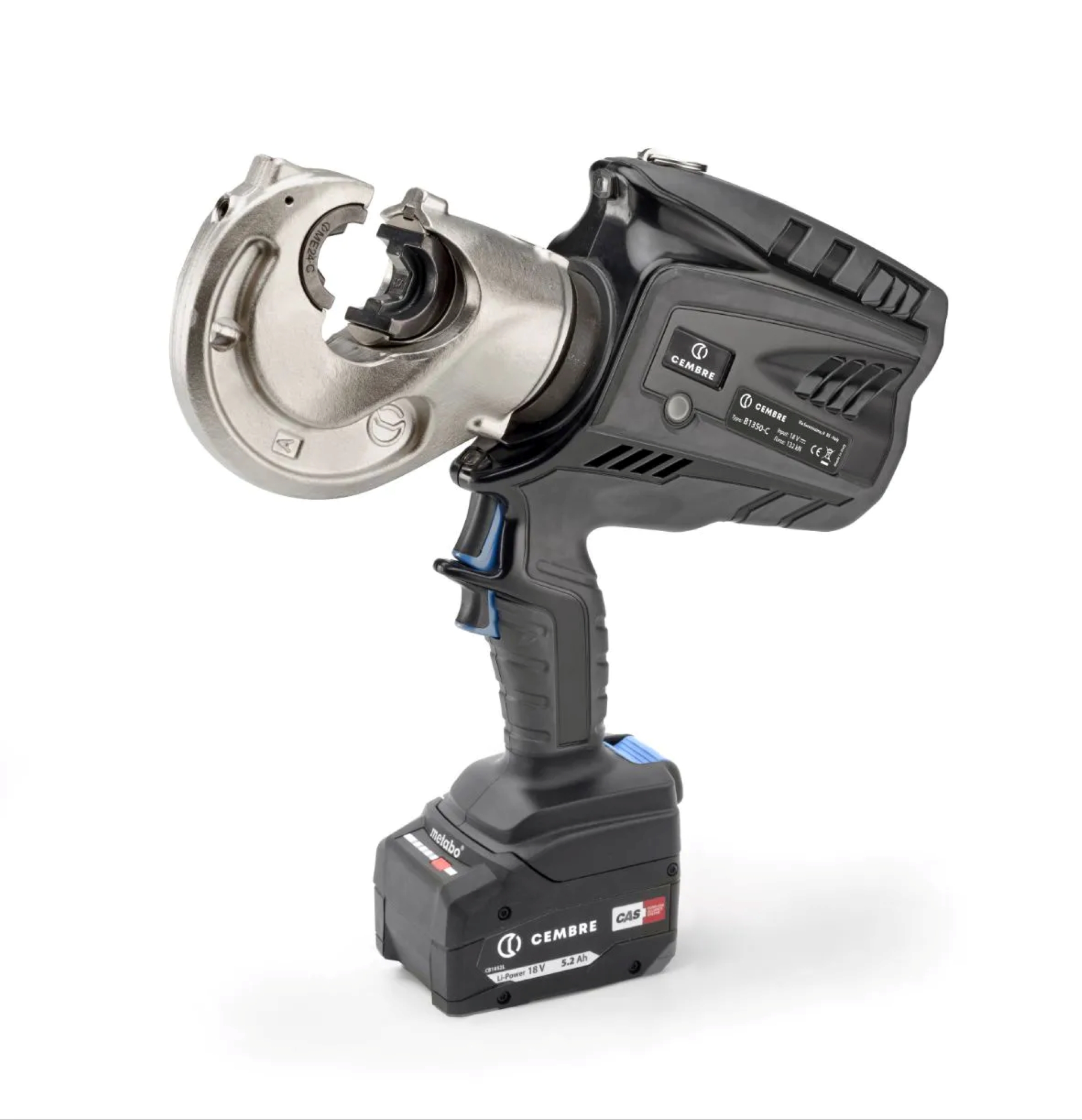

Cembre B1350-CE Battery Hydraulic Crimping Tool with Case (10-400mm²)

New Li-Ion 18 V 4 Ah batteries offer a higher capacity than 14.4 V 3 Ah, while greater crimping speed and crimping force result from a revitalized hydraulic system with double speed action: a rapid approach of the dies to the connector then a slower, more powerful speed for crimping

  • A maximum pressure sensor and security valve assure greater precision and repeatability of the pressure cycle and double the provision for operator safety
  • Designed with less weight and improved balance, B1350-C is easily manageable during the crimping process and, by the use of bi-component plastics, has a shell with high resistance to wear and damage
  • Rubber grip inserts, low noise and minimal vibration aid operator comfort while additional convenience and safety are provided by LED lighting of the working area
  • Crimping cycle data (up to 200,000 events) is automatically stored on a memory card for transfer to PC by USB interface
  • The tool features a double speed action: a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping
  • The crimping head can rotate through 180° for ease of operation
  • The B1350-C will accept all semi-circular slotted dies common to most 13 kN tools (U dies)
  • Fitted with a maximum hydraulic pressure valve
  • Complete with a battery condition display which, after every operation, indicates the residual battery power
  • Extremely quiet in operation, with very little vibration
  • Ergonomically designed with a sculptured body for operator comfort
  • The OLED display provides essential real time tool operating information data including:
    • Crimping force being  generated, for confirmation of adherence to norms and best practice
    • Battery power availability
    • Tool identification, LED state, reset, no. of operational and service crimping cycles
    • Tool service required to maintain optimum condition

The tool is supplied in a sturdy plastic case type VAL P39 suitable for storing:

  • Basic tool with battery, wrist strap and shoulder strap
  • Spare battery
  • Battery charger
  • Plastic carrying case suitable for storing the tool and 8 sets of semi-circular slotted dies

Dies not included, sold separately

Technical Data

MAIN APPLICATIONS - max section mm2

LV lugs & splices Insulated terminals C Sleeve Connectors HV lugs & splices
400 240 185 400



Order
Part Number Wolseley Code Description Notes Conductor size Voltage Price Ex VAT Quantity
B1350-CE CJ0326 10-400mm² 18v c/w 2 Batteries, Mains Charger & Hard Carry Case DIES not included – Sold Separately £3,350.00

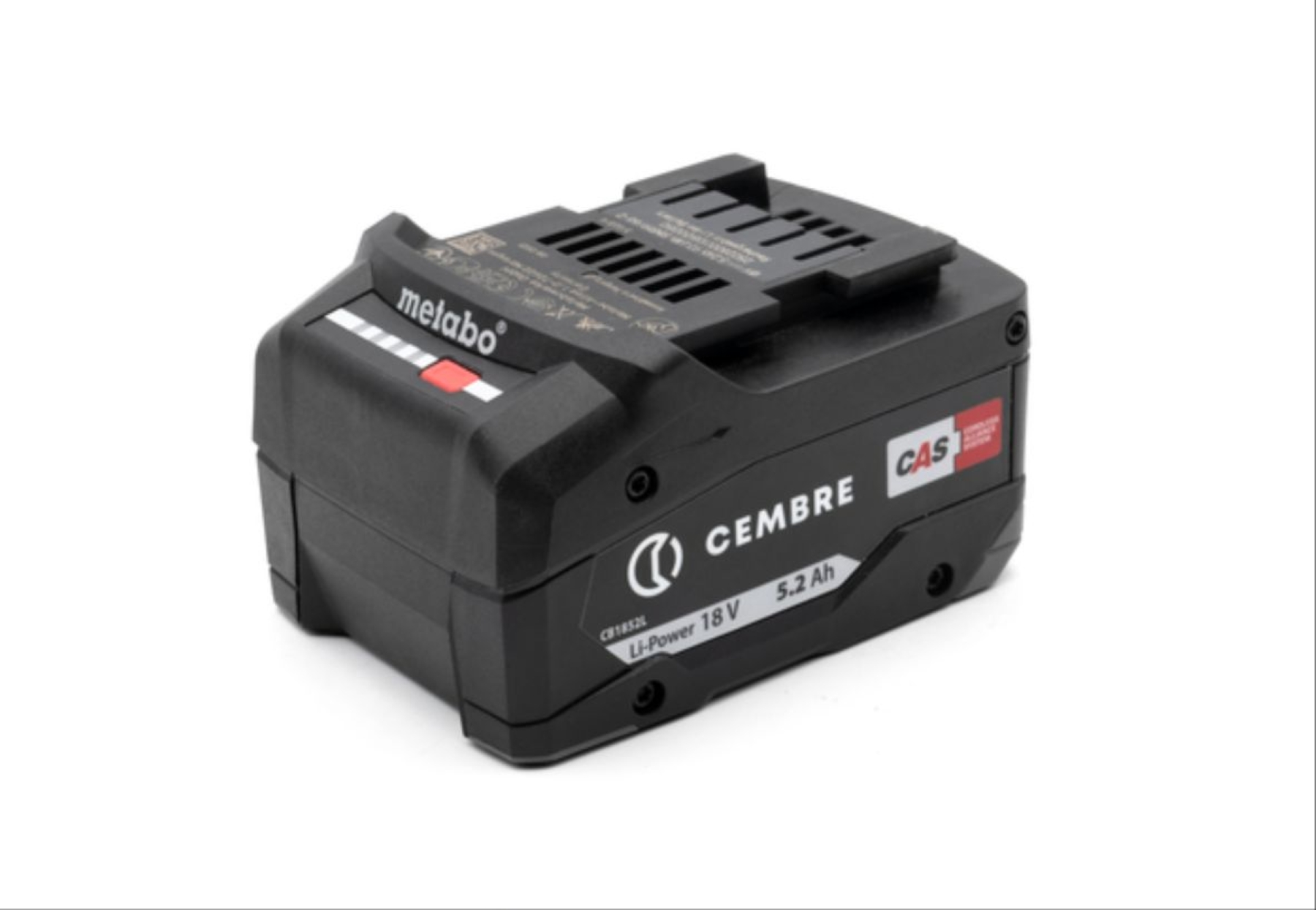

CB1852L CJ0405 - 18v 5.2Ah Li-Ion Spare Battery - £210.00
VAL-P39 CJ3893 - - Spare Hard Case - £124.00
