Cembre B450ND-BVE Hydraulic Crimp Tool 18v


from only £45.00

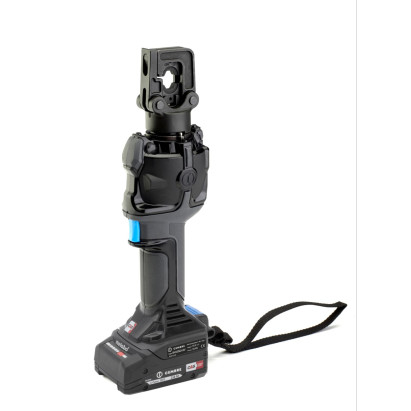

Cembre B450ND-BVE Battery Hydraulic Crimping Tool with Case

  • B450ND-BVE is a new generation of hand-held cordless tools, characterised by a “Bilinear” mechanical design
  • B450ND-BVE is suitable for crimping electrical connectors onto conductor cross sections up to 150 mm² and uses the die sets common to all Cembre 45kN tools and heads.
  • Equipped with Li-Ion 18 V-2Ah rechargeable high capacity batteries
  • The battery is equipped with LED indicators to show the remaining battery life at any time by pressing the adjacent button
  • The tool is fitted with a maximum pressure valve
  • Weight and balance have been reconfigured to yield improvements in handling and convenience
  • The more rigid structure of the bi-component plastic body provides greater mechanical protection while its rubber inserts boost operator safety and comfort.
  • Quieter operation, illumination of the working area via LED lights and a minimum of vibration enhance the tool’s practicality
  • Flashing work lights and a continuous beep indicate to the operator that B450ND-BVE has reached the working hours at which ordinary maintenance is recommended. It is also a feature that the operating data is stored on a memory card for transfer to PC by USB interface. (SMARTOOL technology)

Dies not included, sold separately

Technical Data

MAIN APPLICATIONS - max section mm2

LV lugs & Splices C Sleeve Connectors HV lugs & splices
150 35 70



Order
Part Number Description Notes Conductor Size Voltage Price Quantity
B450ND-BVE 10-150mm² 18v c/w 1 Battery, Mains Charger & Hard Carry Case DIES not included – Sold Separately £2500.00

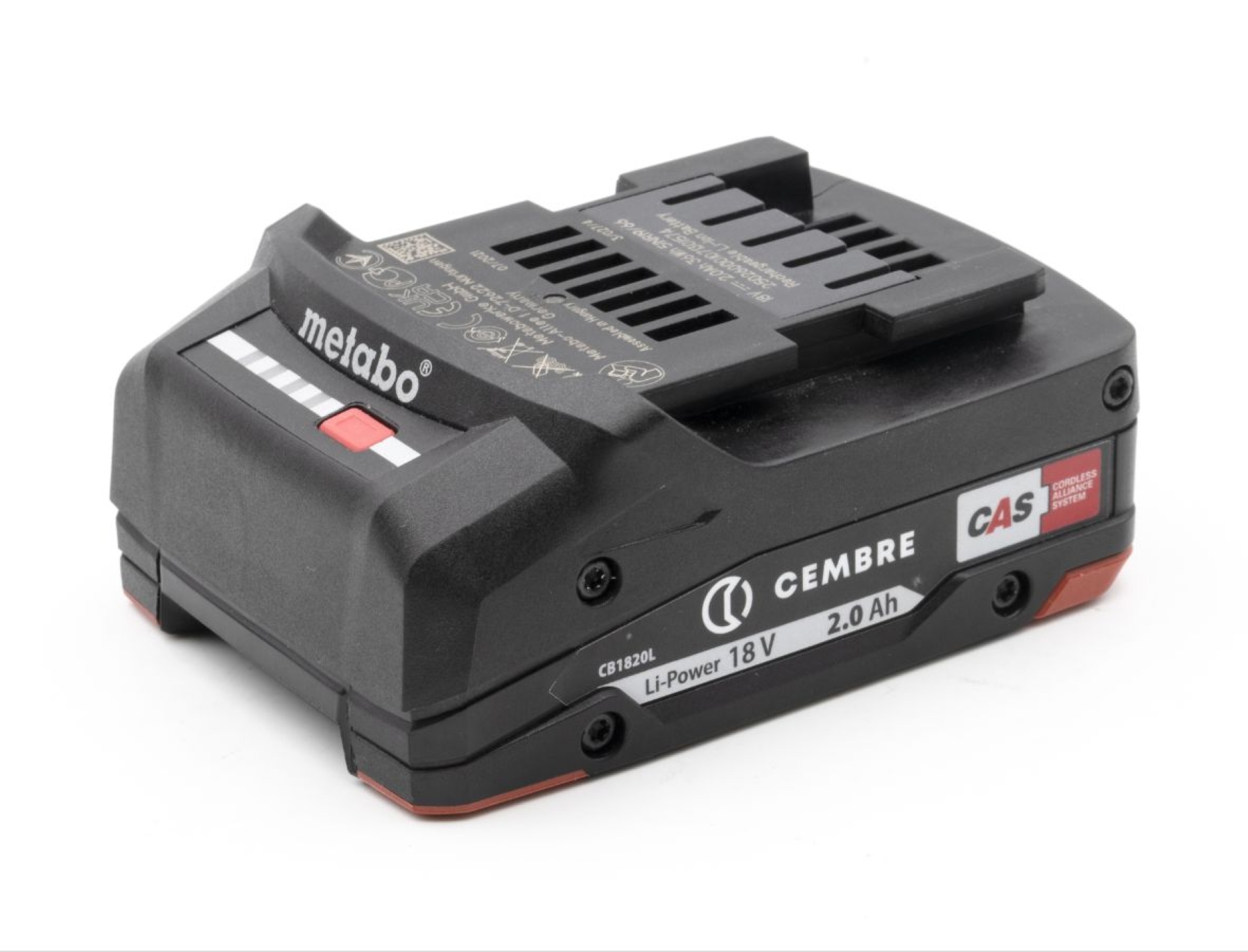

CB1820L - 18v 2.0Ah Li-Ion Spare Battery - £170.00
VAL-P22 - - Spare Hard Case - £45.00
