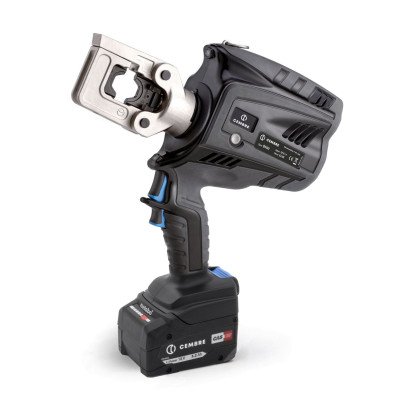

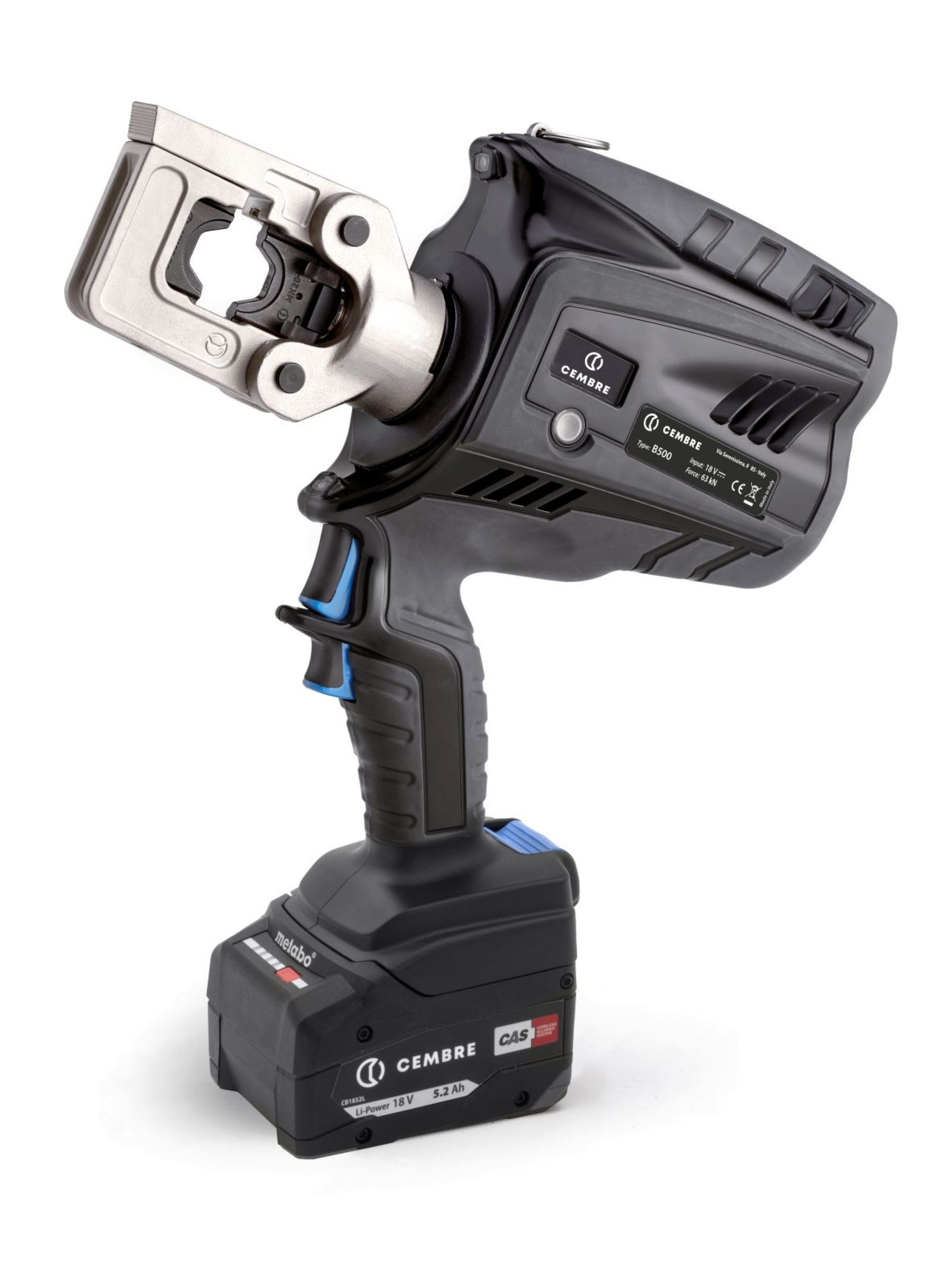

Cembre B500E Hydraulic Crimp Tool 18v


from only £33.51 Ex VAT

Cembre B500E Battery Hydraulic Crimping Tool with Case (4-300mm²)

Latest hydraulic crimping tool technology from Cembre

  • Suitable for a wide range of connectors up to 300sqmm using die sets common to the Cembre 50kN tooling range
  • New Li-Ion 18 V 4 Ah batteries offer a higher capacity than 14.4 V 3 Ah, while greater crimping speed and crimping force result from a revitalized hydraulic system with double speed action: a rapid approach of the dies to the connector then a slower, more powerful speed for crimping
  • Maximum pressure sensor and security valve assure greater precision and repeatability of the pressure cycle and double the provision for operator safety
  • Designed with less weight and improved balance, B500 is easily manageable during the crimping process and, by the use of bi-component plastics, has a shell with high resistance to wear and damage
  • Crimping cycle data (up to 200,000 events) is automatically stored on a memory card for transfer to PC by USB interface
  • Rubber grip inserts, low noise and minimal vibration aid operator comfort while additional convenience and safety are provided by LED lighting of the working area.
  • The OLED display provides essential real time tool operating information data including:
    • Crimping force being  generated, for confirmation of adherence to norms and best practice
    • Battery power availability
    • Tool identification, LED state, reset, no. of operational and service crimping cycles
    • Tool service required to maintain optimum condition.

The tool is supplied in a sturdy plastic case type VAL P38 suitable for storing:

  • Basic tool with battery and shoulder strap
  • Spare battery
  • Battery charger
  • USB Cable
  • Plastic carrying case suitable for storing the tool and 14 die sets

Dies not included, sold separately

Technical Data

Main applications max section mm2

LV lugs & splices Insulates Terminals End Sleeves C Sleeve Connectors
300 120 120 70



Order
Part Number Wolseley Code Description Notes Conductor Size Voltage Price Ex VAT Quantity
B500E CJ0333 10-300mm² 18v c/w 2 Batteries, Mains Charger & Hard Carry Case DIES not included – Sold Separately £3,300.00

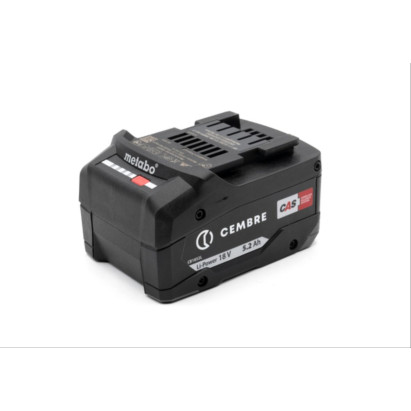

CB1852L CJ0405 - 18v 5.2Ah Li-Ion Spare Battery - £210.00
VAL-P38 - - Spare Hard Case - £124.00
ME1-50 Hex. Crimping DIE 4-6mm2 For copper lugs NA NA £48.00
ME2-50 Hex. Crimping DIE 10mm2 For copper lugs NA NA £33.51
ME3-50 Hex. Crimping DIE 16mm2 For copper lugs NA NA £33.51
ME5-50 Hex. Crimping DIE 25mm2 For copper lugs NA NA £33.51
ME7-50 Hex. Crimping DIE 35mm2 For copper lugs NA NA £33.51
ME10-50 Hex. Crimping DIE 50mm2 For copper lugs NA NA £33.51
ME14-50 Hex. Crimping DIE 70mm2 For copper lugs NA NA £33.51
ME19-50 Hex. Crimping DIE 95mm2 For copper lugs NA NA £33.51
ME24-50 Hex. Crimping DIE 120mm2 For copper lugs NA NA £38.51
ME30-50 Hex. Crimping DIE 150mm2 For copper lugs NA NA £38.51
ME37-50 Hex. Crimping DIE 185mm2 For copper lugs NA NA £38.51
ME48-50 Hex. Crimping DIE 240mm2 For copper lugs NA NA £109.00
ME60-50 Hex. Crimping DIE 300mm2 For copper lugs NA NA £220.00
