Cembre Hydraulic Head 10-400mm²


from only £66.00 Ex VAT

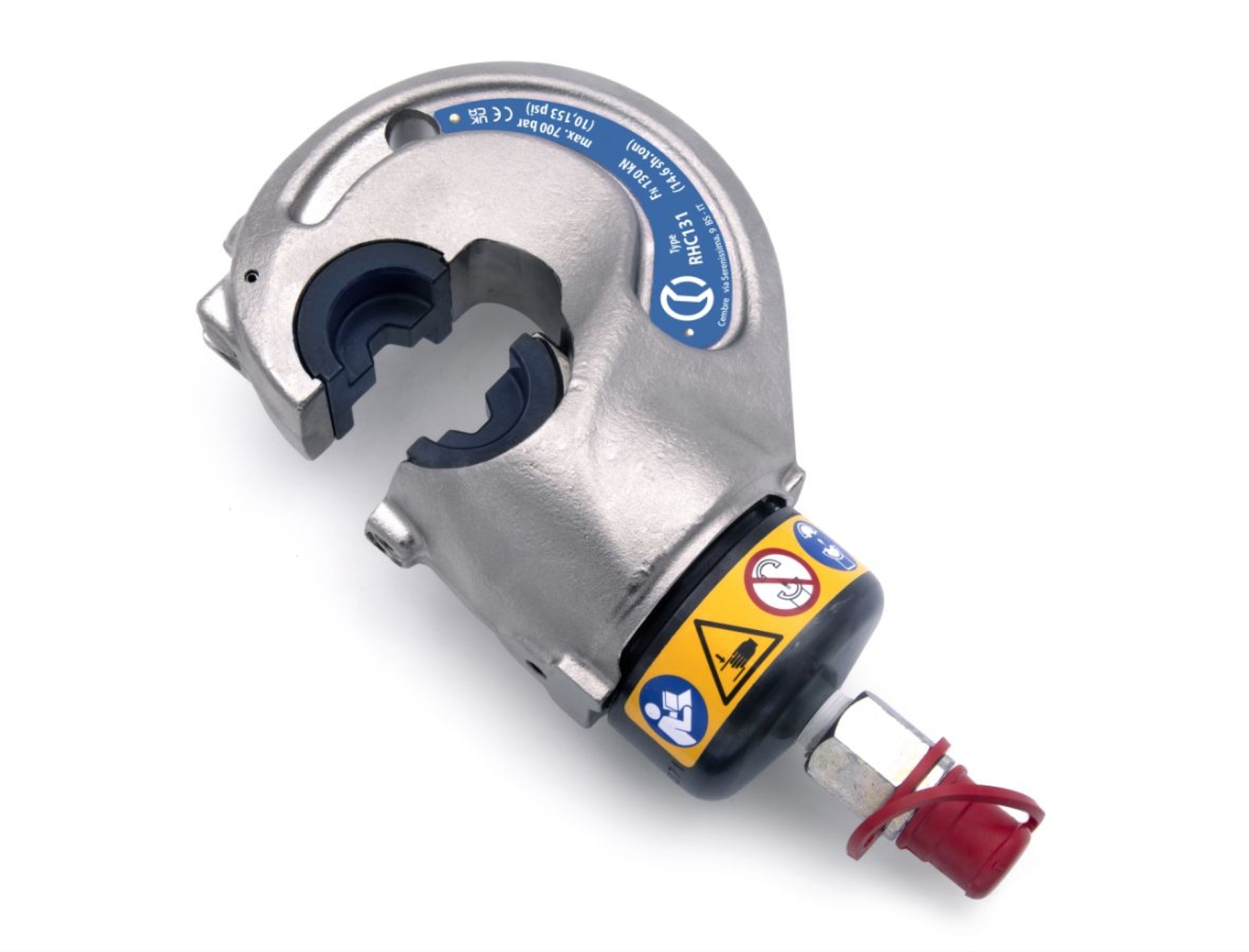

RHC 131 Type Hydraulic Crimp Head for 10-400mm² Cables

Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a max operating pressure of 700 bar

  • This new design with improved mechanical features, is suitable for installing the same range of connectors as HT131-C, B135-C and B131-C
  • This model accept all semicircular slotted dies, common to Cembre 130 kN tools
  • Max operating pressure 700 bar
  • Comes complete with quick automatic coupler
  • Reduced weight 3.8Kg

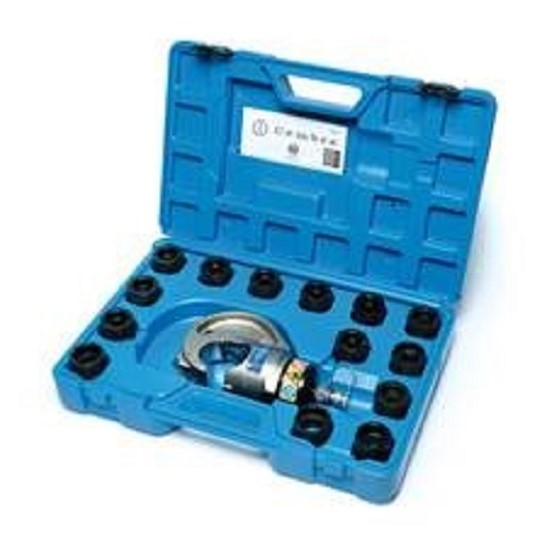

Purchase separately the sturdy plastic case type VAL P26, suitable for storage of the head and 14 sets of dies.

Dies not included, sold separately.

Technical Data

MAIN APPLICATIONS - max. section mm2

LV lugs & solices Insulated terminals C sleeve connectors HV lugs HV splices
400 240 185 400 400 limited to the cable insulation diameter



Order
Part Number Wolseley Code Die Range Notes Conductor size Description Price Ex VAT Quantity
RHC131 CJ0348 ME-C 10-400mm² Head Only Excludes Dies – Sold Separately £690.00
VAL-P26 CJ0429 NA NA Hard Plastic carry Case for RHC131 Head & 14 Dies £66.00
