Cembre Hydraulic Crimping Tool - HT131-C

Show VAT

from only £67.00 Ex VAT£80.40 Inc VAT

Cembre Hydraulic Crimping Tool - HT131-C

Accepting all semicircular slotted dies common to most 130kN tools, the new HT131-C is an extremely sturdy, self contained device. The tool features a double speed action: a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping. For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.

Application range: suitable for compression of electrical connectors on conductors up to 400mm2 (800 MCM)

Crimping force: 130kN (14.6sh ton)

Rated operating pressure: 700 bar (10,000 psi)

There are three operating positions - these three positions are identified on the main handle.

*Dies not included and must be purchased separately

Technical Data

Dimensions: Length 473mm (18.6in), Width (with handles closed) 144mm (5.7in), Width (with handles open) 344mm (13.5in)

Weight (without dies): 5.5kg (12.3lbs)

Recommended oil: Agip Arnica 22 or Esso Invarol EP22

Datasheets

Cembre Hydraulic Crimping Tool HT131-C Datasheet

Order

Part Number	Wolseley Code	Description	Notes	Price Ex VATInc VAT

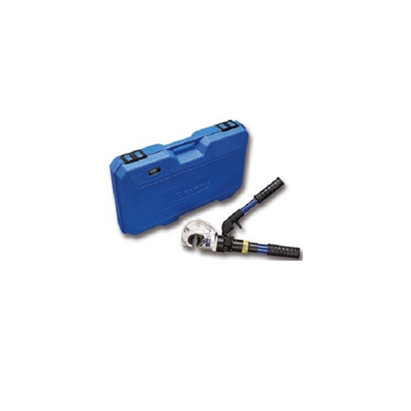

HT131-C	CJ0335	Hand Tool c/w Hard Plastic Case	DIES not included – Sold Separately	£1,260.00£1,512.00
VAL-P3		Spare Hard Plastic Carry Case		£100.00£120.00
ME2-C	CJ0383	Hex. Crimping DIE 10mm2	For copper lugs	£67.00£80.40
ME3-C	CJ0373	Hex. Crimping DIE 16mm2	For copper lugs	£67.00£80.40
ME5-C	CJ0371	Hex. Crimping DIE 25mm2	For copper lugs	£67.00£80.40
ME7-C	CJ0359	Hex. Crimping DIE 35mm2	For copper lugs	£67.00£80.40
ME10-C	CJ0354	Hex. Crimping DIE 50mm2	For copper lugs	£67.00£80.40
ME14-C	CJ0364	Hex. Crimping DIE 70mm2	For copper lugs	£67.00£80.40
ME19-C	CJ0357	Hex. Crimping DIE 95mm2	For copper lugs	£67.00£80.40
ME24-C	CJ0366	Hex. Crimping DIE 120mm2	For copper lugs	£67.00£80.40
ME30-C	CJ0361	Hex. Crimping DIE 150mm2	For copper lugs	£67.00£80.40
ME37-C	CJ0355	Hex. Crimping DIE 185mm2	For copper lugs	£67.00£80.40
ME48-C	CJ0358	Hex. Crimping DIE 240mm2	For copper lugs	£67.00£80.40
ME60-C	CJ0363	Hex. Crimping DIE 300mm2	For copper lugs	£67.00£80.40
ME80-C	CJ03865	Hex. Crimping DIE 400mm2	For copper lugs	£71.00£85.20
