Cembre Hydraulic Head 400-1000mm²


from only £132.00 Ex VAT

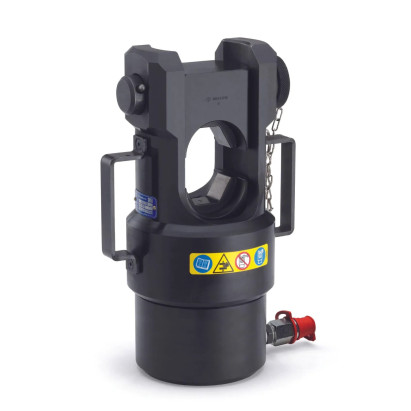

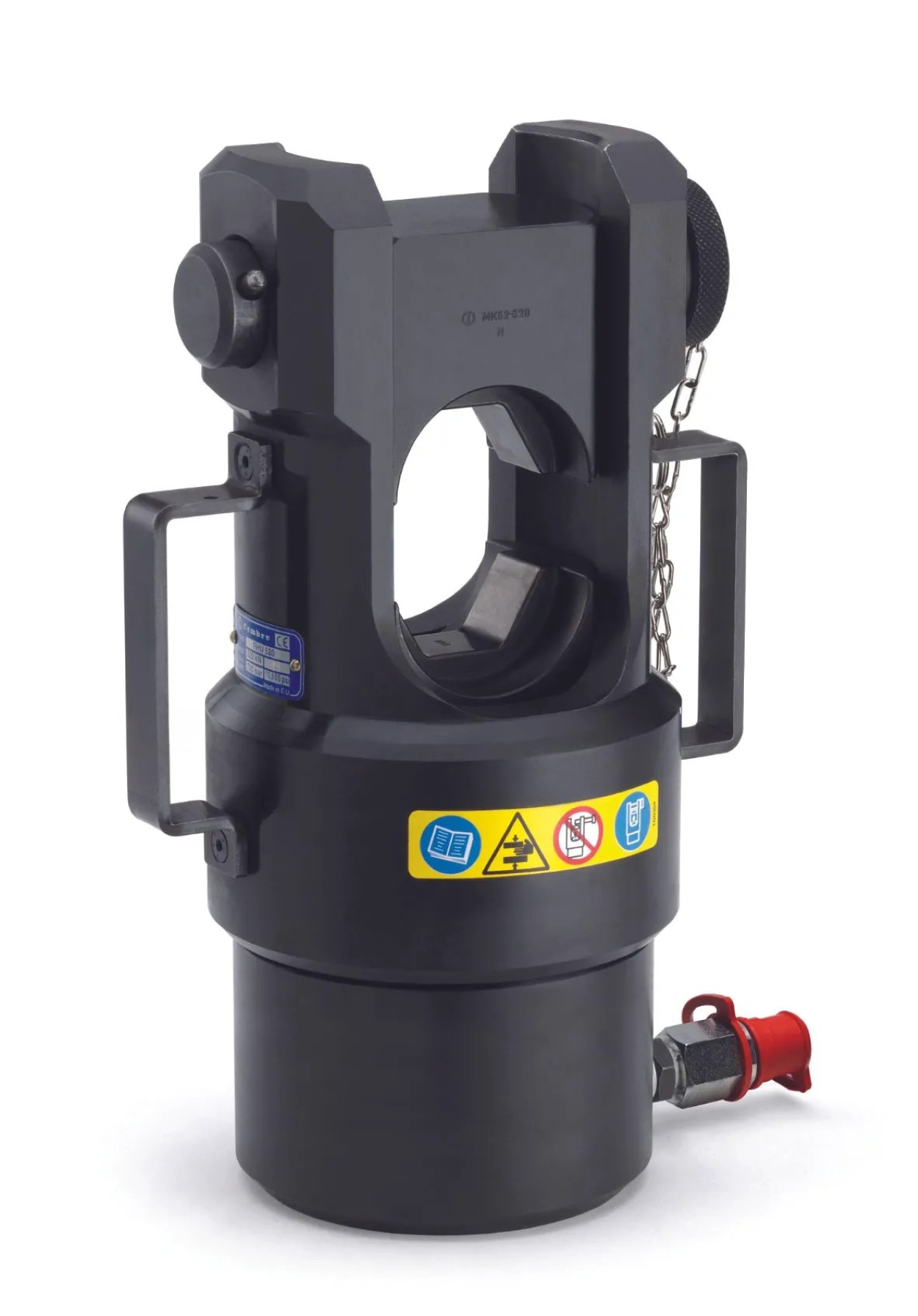

RHU-520 type hydraulic presshead for 400-1000mm² cables

Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max. Adaptor type AU520-130C is available as an optional extra enabling the head to utilise the semi-circular slotted dies which are common to most 130 kN tools.

  • With use of adaptor die (AU520-130) and ME-C dies the RHU-520 can cover 10-400mm²
  • Max operating pressure of 700 bar
  • Weight 18kg
Technical Data

Cembre Hydraulic Presshead 400-1000mm² Properties

Type of action Crimp
Force developed 520 kN
Nominal pressure 700 bar
Length 306 mm
Width 200 mm
Weight 18 kg

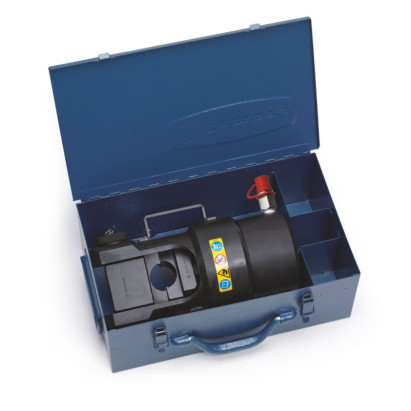

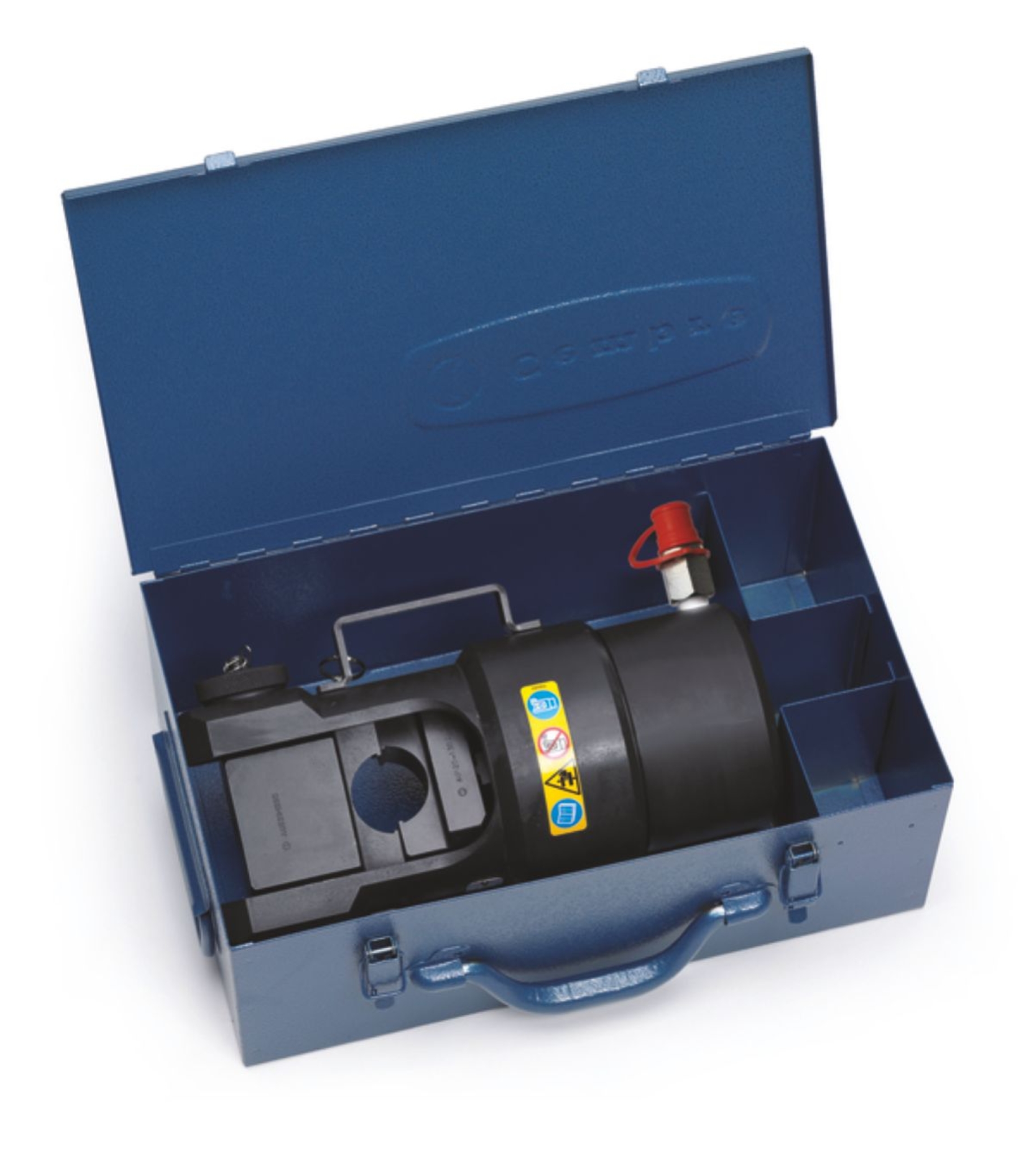

VAL-520 Metal Box ONLY:

Height 145mm
Width 231mm
Length 384mm
Weight 3.2kg



Order
Part Number Wolseley Code Description Die Range Conductor size Price Ex VAT Quantity
RHU-520 CJ0353 ME-520 400-1000mm² Head Only (Excludes Dies – Sold Separately) £2,250.00
VAL-520 JZ0969 NA NA Steel Carry Case for RHU-520 £132.00
