Cembre Hydraulic Head 400-630mm²


from only £153.00 Ex VAT

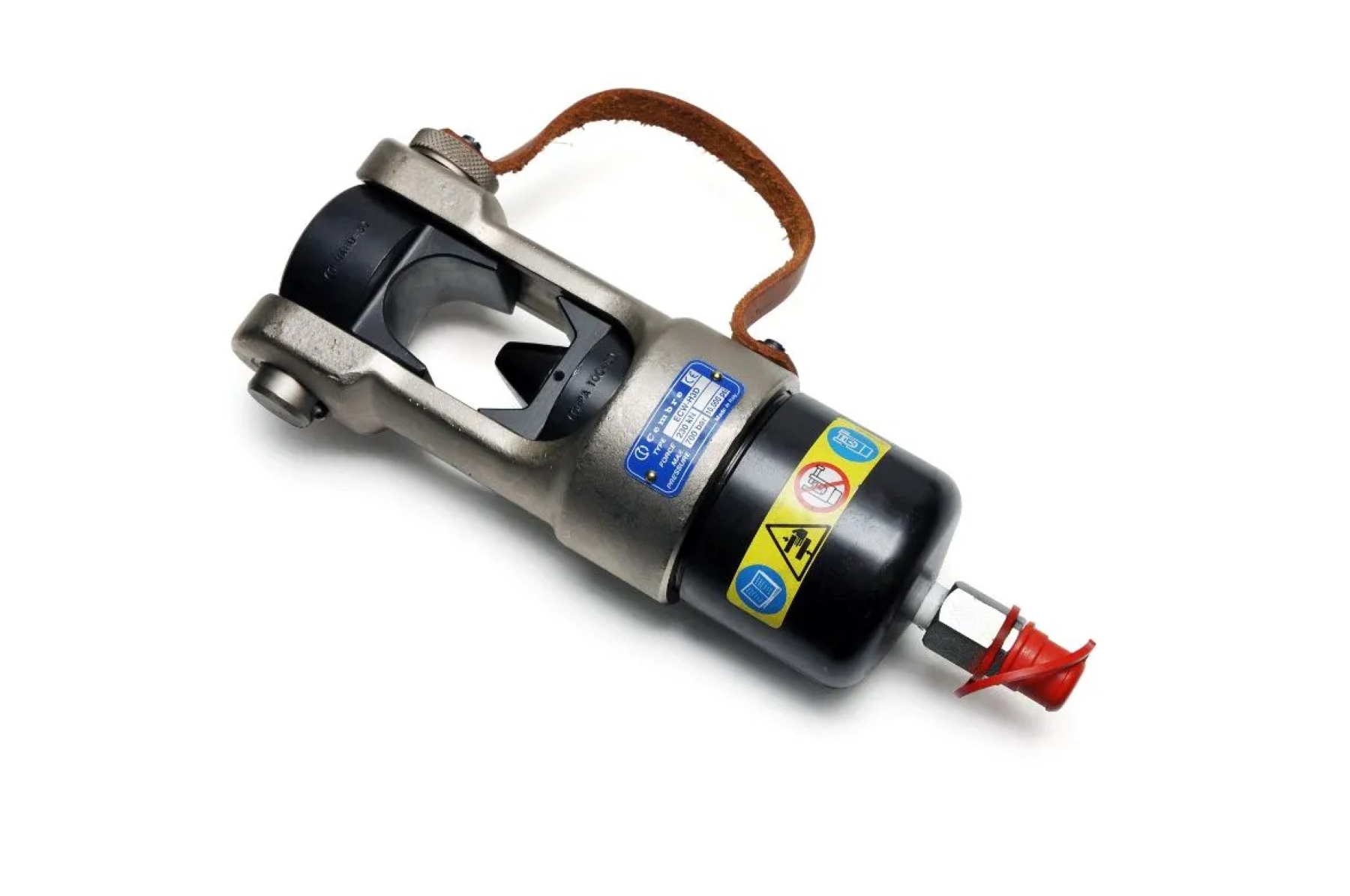

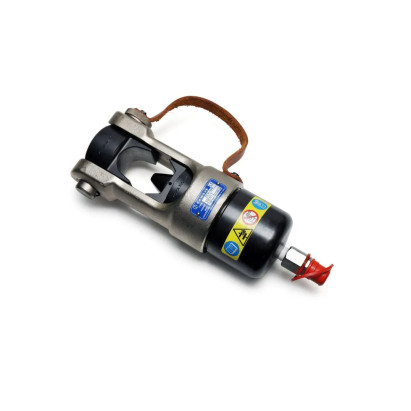

ECW-H3D type hydraulic presshead for 400-630mm² cables

Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max, Adaptor type AU230-130D is available as an optional extra enabling the head to utilise the semi-circular slotted dies which are common to most 130 kN tools. Also available is a series of dies for the compression of DIN electrical connectors, and a die for cutting copper, aluminium, aldrey, aluminium-steel and steel conductors.

  • With use of adaptor die (AU230-130) and ME-C dies the ECW-H3D can cover 10-400mm²
  • Max operating pressure of 700 bar
  • Crimps up to 400mm2 with adaptor (sold separately)
  • Weight 5.5Kg
Technical Data

Properties

Width 120 mm
Length 290 mm
Weight 5.5 kg
Nominal pressure 700 bar
Force developed 230 kN
Type of action Crimp



Order
Part Number Wolseley Code Description Die Range Conductor size Price Ex VAT Quantity
ECW-H3D CJ0332 ME-3D 400-630mm² Head Only (Excludes Dies – Sold Separately) £830.00
VAL ECW-H3D CJ0394 NA NA Steel Carry case for ECW-H3D & Dies £153.00

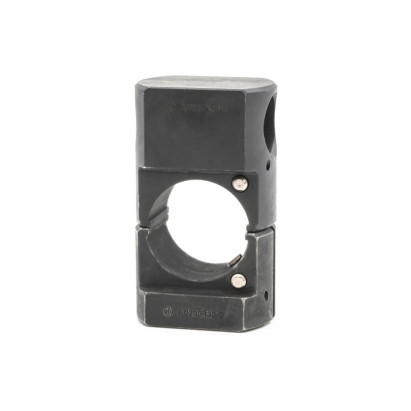

AU230-130-D Adaptor to use smaller hex dies 10-400mm2 10-400mm2 £243.46
ME80-3D Hex. Crimping die 400mm2 NA NA £225.00
ME100-3D Hex. Crimping die 500mm2 NA NA £225.00
ME120-3D Hex. Crimping die 630mm2 NA NA £225.00
