End Sleeves Halogen Free – CLEARANCE


from only £6.72 Ex VAT

Cembre PA6 INSULATED END SLEEVES

Designed and developed to reinforce the fine wire strands when terminating a cable into a connector block.

  • The PKE range of end sleeves is manufactured from Tin plated electrolytic Copper
  • Purity greater than 99.9%.

*CLEARANCE ITEM – PRICES WHILST CURRENT STOCK LAST – SUBJECT TO CHANGE*





Technical Data
  • The connectors are manufactured from Copper Cu DHP UNI 5649/1988 corresponding to: SF-Cu DIN 1787/1973 Cu/b1 NF A 51-050)
  • Tin plated with a minimum thickness of 3μm.

Main characteristics of the PA6 sleeves:

  • DIELECTRIC STRENGTH (KV/mm) : >16,5
  • VOLUME RESISTIVITY (Ω • cm) : >1013
  • MAX OPERATING TEMPERATURE (°C) : 115-130
  • FLAMMABILITY (UL94) : V2
  • DENSITY (g/cm3) : 1,14
  • WATER ABSORPTION (%) : 1,5
  • BREAKING LOAD (N/mm2) : 77
  • The connectors can be stored at a minimum temperature not below - 40°C.
Order
Part Number Wolseley Code Conductor Size Colour *Current Stock Qty Pkt Quantity Price Ex VAT Quantity

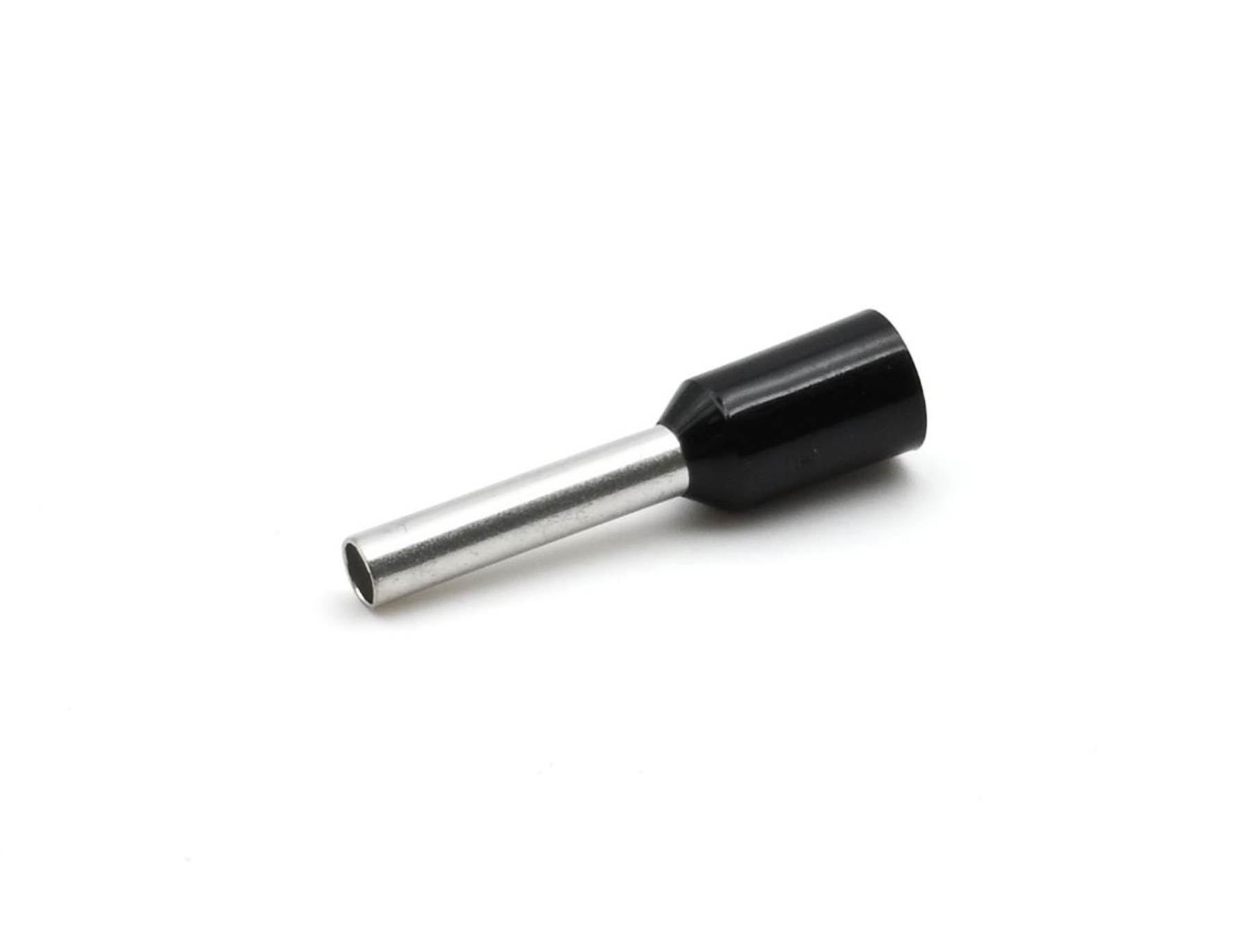

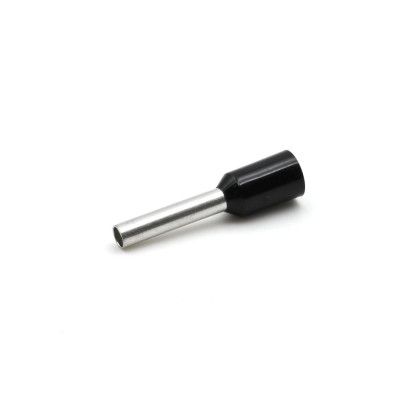

PKD1508 CJ0866 1.5mm Black 9 500 £7.35
PKD1512 JZ0570 1.5mm Black 1 500 £11.55

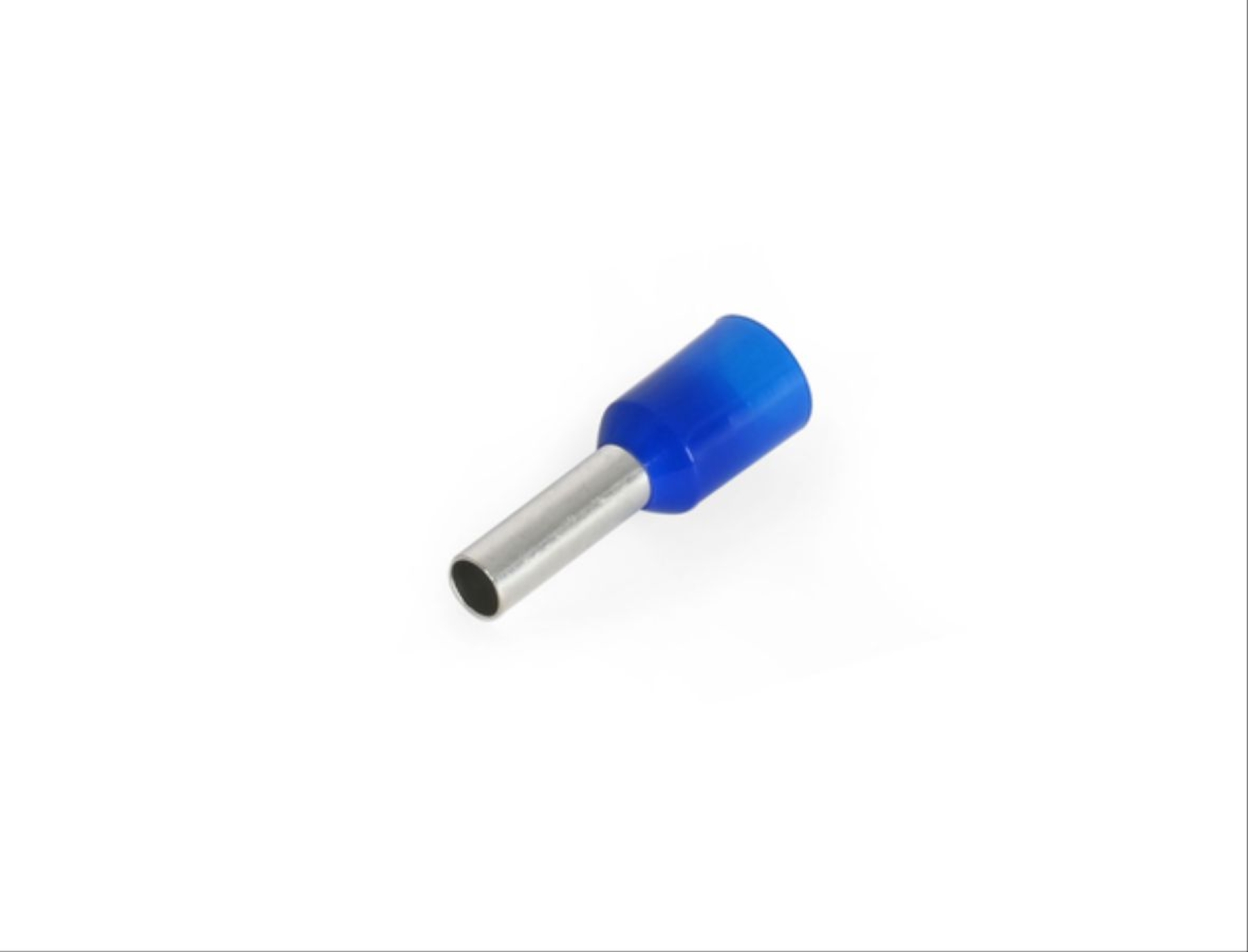

PKD2508 CJ0862 2.5mm Blue 9 500 £9.61
PKD2512 JZ0583 2.5mm Blue 6 500 £11.55

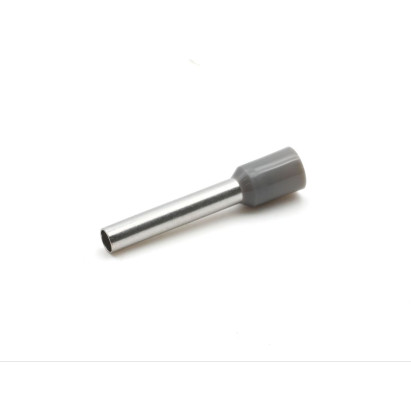

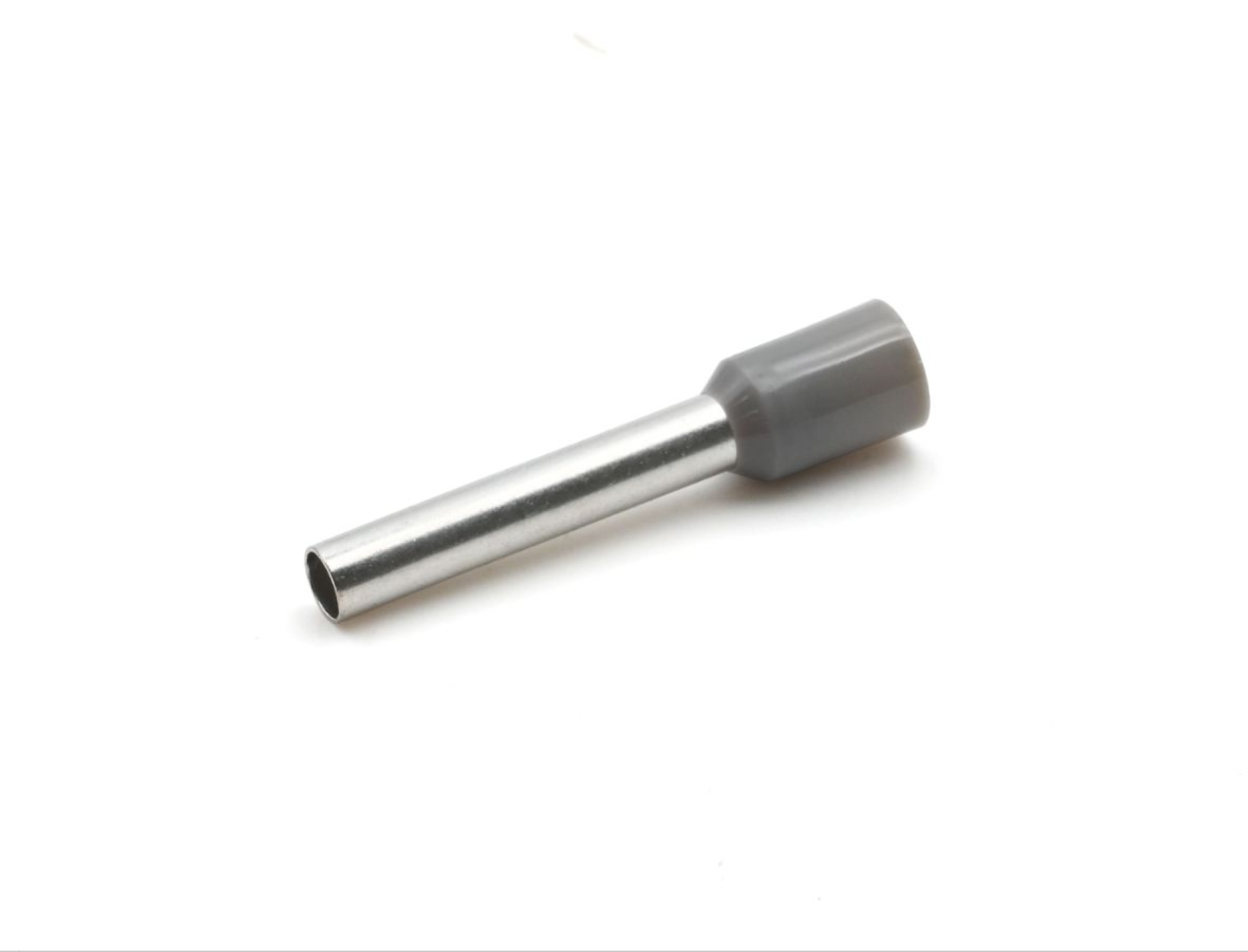

PKD412 JZ0374 4mm Grey 7 200 £6.77

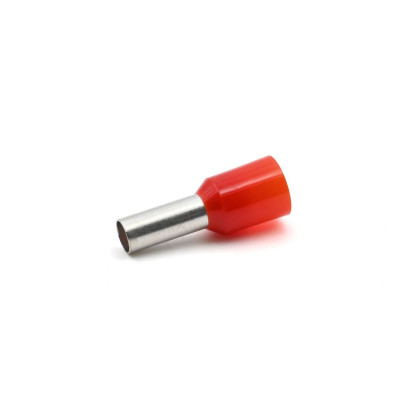

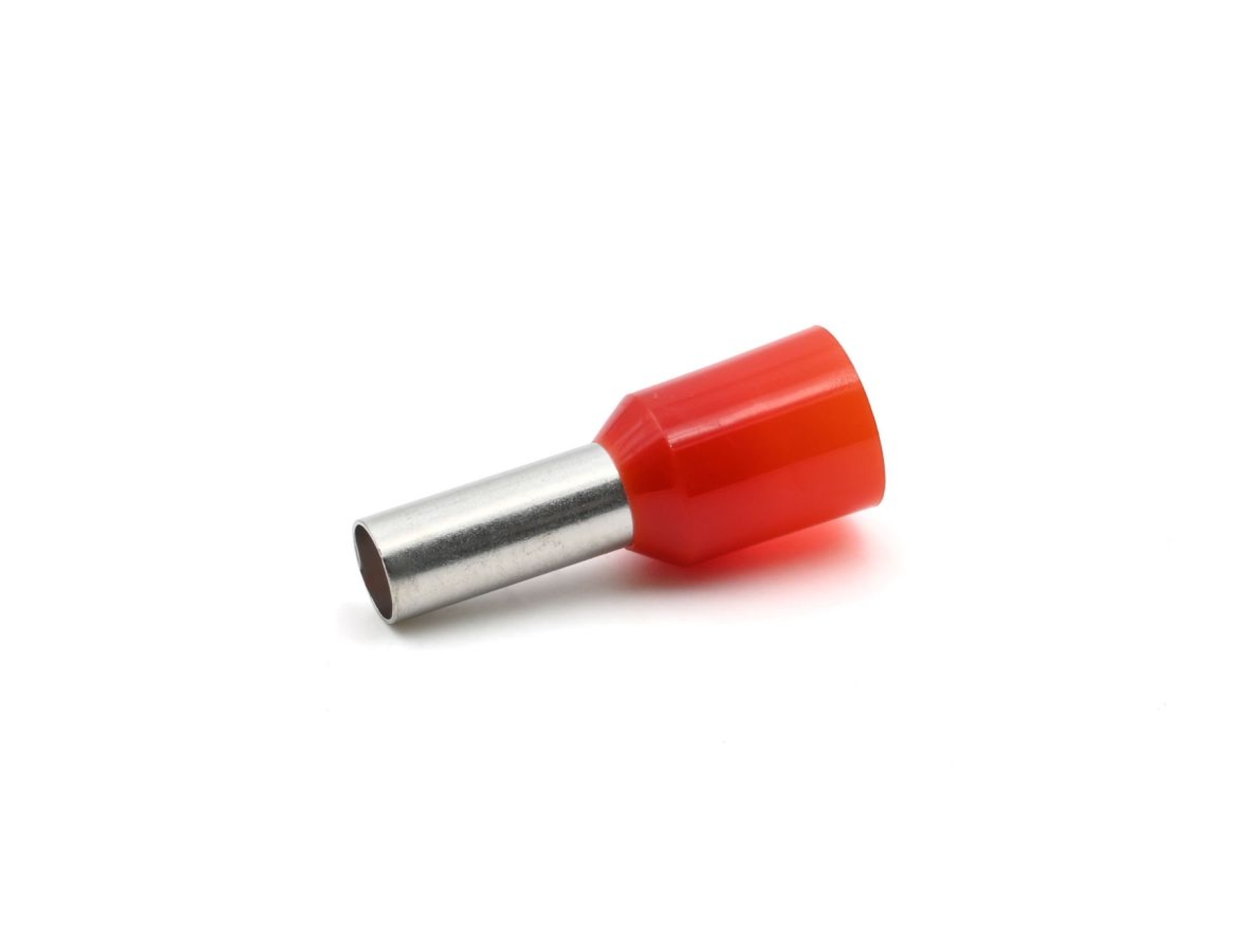

PKD1012 CJ0835 10mm Red 3 100 £6.72
