Flat Blade Terminals - PVC

Show VAT

from only £6.04 Ex VAT£7.25 Inc VAT

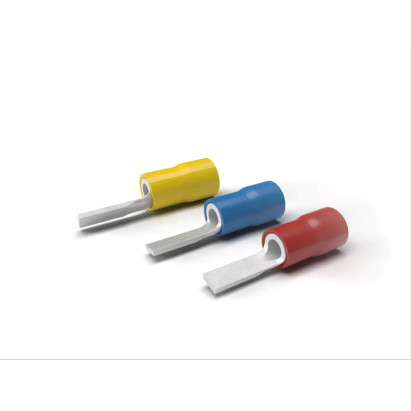

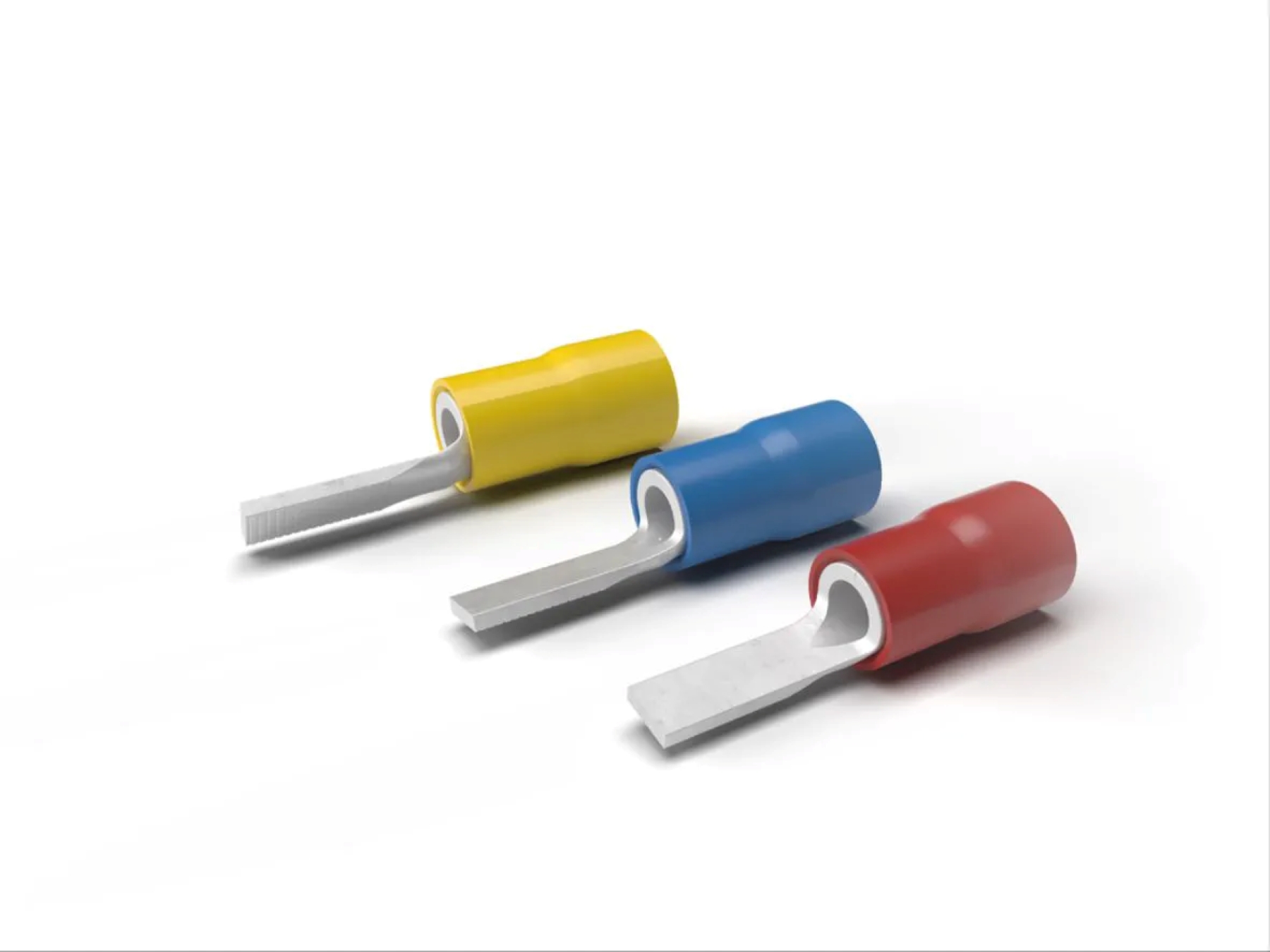

Cembre Blade Terminals PVC Red, Blue & Yellow

The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable mechanical connection

Internal surface of the barrel is rifled to improve contact with conductor strands when crimped, improving tensile strength
The 'F' range of terminals offers a wide selection of rings, forks, pins and blades designed to meet changing needs
Pre insulated halogen free blade type terminal with funnel entry
Manufactured from tin plated electrolytic copper
Price per 100

OTHER SIZES AVAILABLE – PLEASE CONTACT YOUR LOCAL OFFICE TO RECEIVE A QUOTATION

Technical Data

Operating temperature: 20 to + 80°C

Datasheets

Blade Terminals Datasheet

Order

Part Number	Wolseley Code	Colour	Blade Length	Conductor Size	Description	Price Ex VATInc VAT	Quantity
RF-PP12	CJ0825	Red	12.8mm	0.25-1.5mm	Blade diameter 3.0mm, Blade Length 12.8mm	£6.62£7.94
RF-PP12/1		Red	11.3mm	0.25-1.5mm	Blade diameter 3.0mm, Blade Length 11.3mm	£6.04£7.25

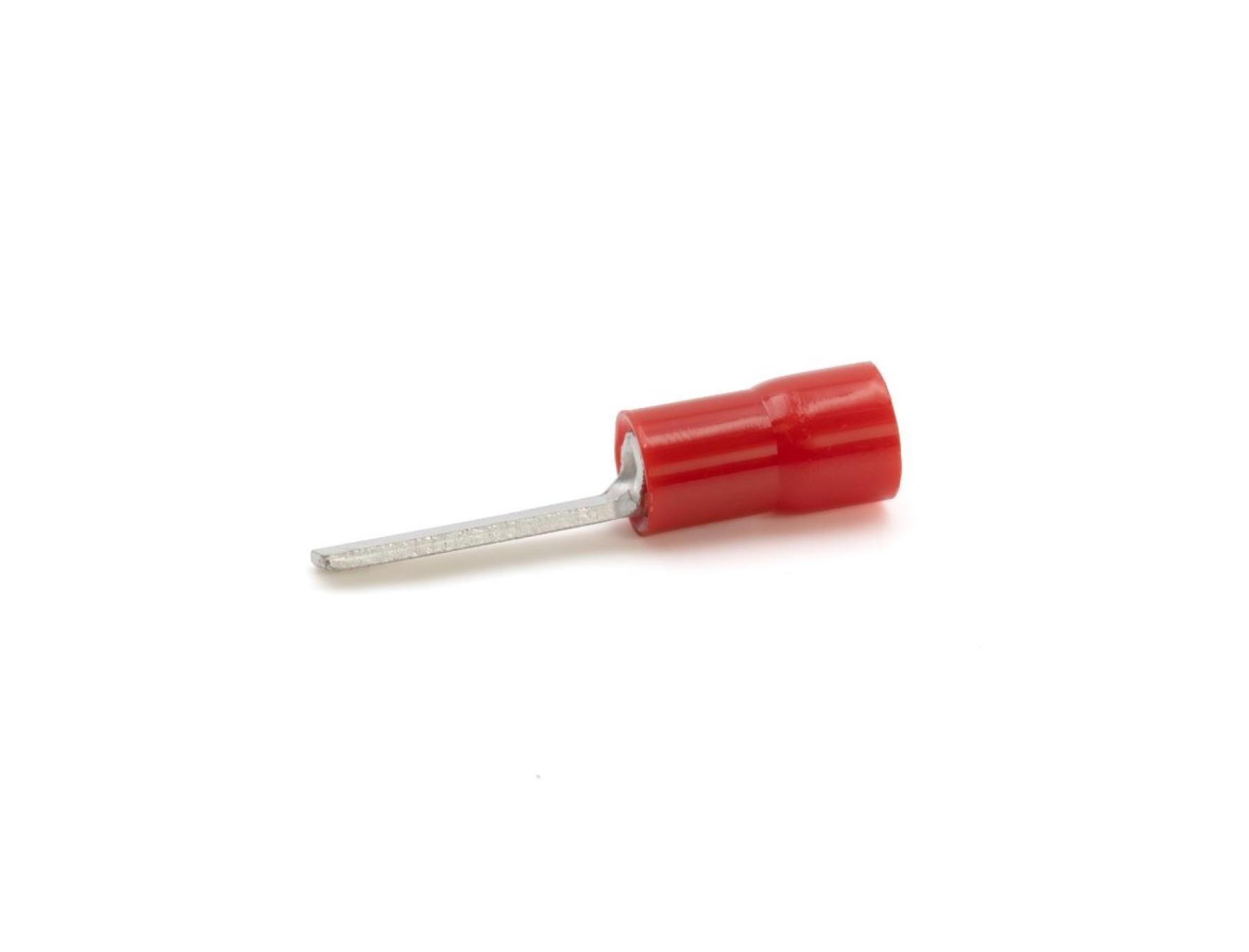

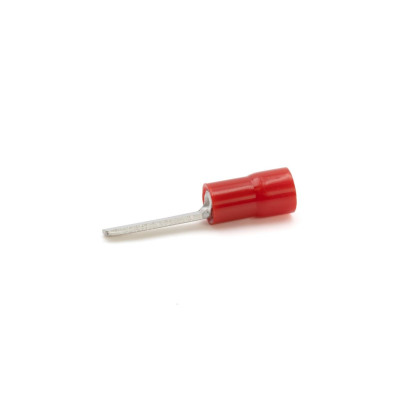

RF-PP12/19		Red	13.2mm	0.25-1.5mm²	Blade diameter 1.9mm, Blade length 13.2mm	£6.04£7.25
RF-PP12/23	JZ0305	Red	13.2mm	0.25-1.5mm²	Blade diameter 2.3mm, Blade length 13.2mm	£6.72£8.06

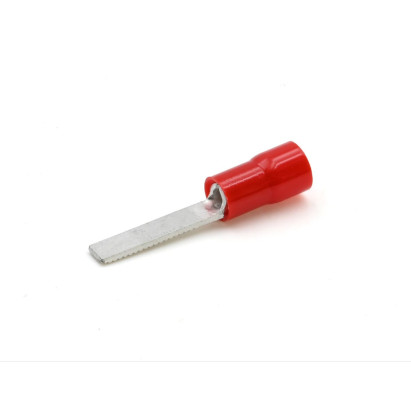

RF-PP14	CJ0741	Red	14.8mm	0.25-1.5mm	Blade diameter 3.0mm. Blade Length 14.8mm	£7.77£9.32
RF-PP16/23	CJ0891	Red	17.2mm	0.25-1.5mm²	Blade diameter 2.3mm, Blade length 17.2mm	£7.77£9.32

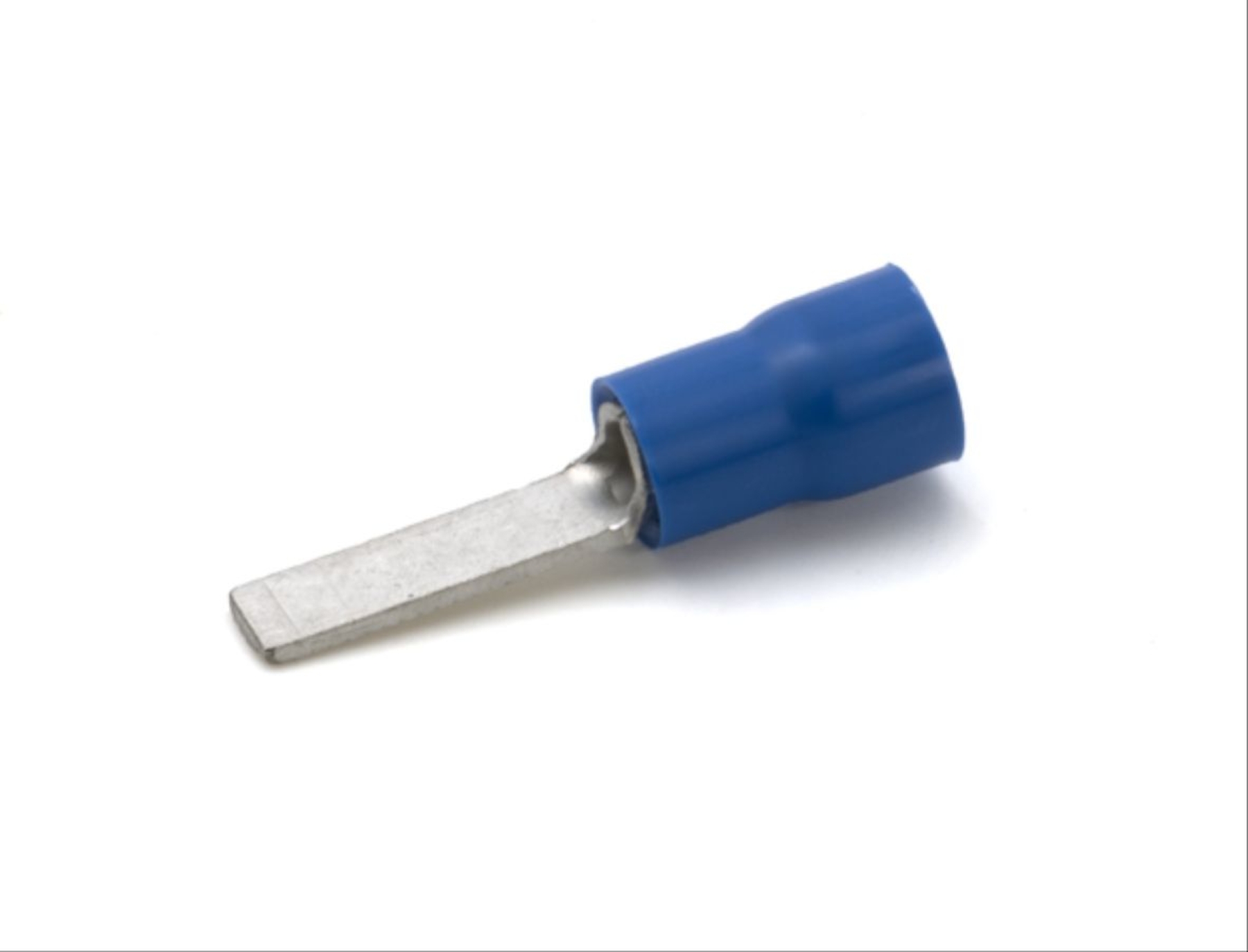

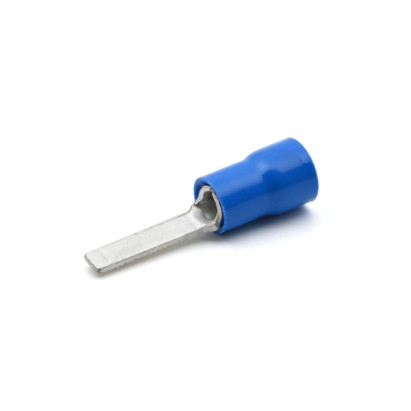

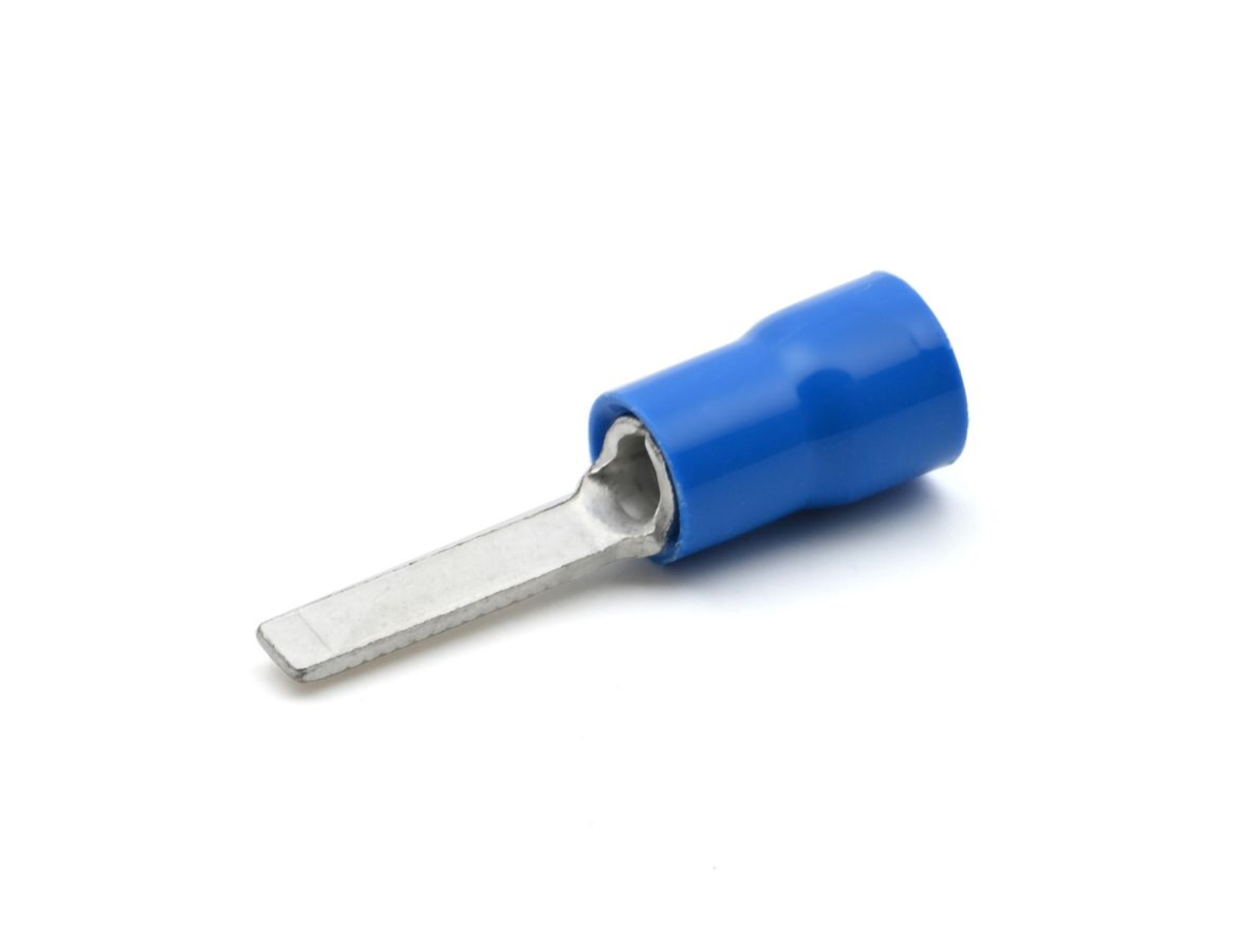

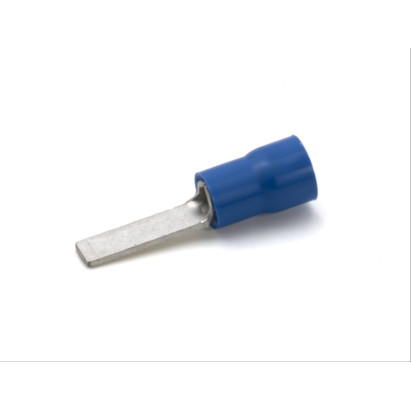

BF-PP12	CJ0795	Blue	12.8mm	1.5-2.5mm²	Blade diameter 3.5mm, Blade length 12.8mm	£6.72£8.06
BF-PP12/25	JZ0315	Blue	13.3mm	1.5-2.5mm²	Blade diameter 2.5mm, Blade length 13.3mm	£6.83£8.20
BF-PP16/25	CJ0806	Blue	17.2mm	1.5-2.5mm²	Blade diameter 2.5mm, Blade length 17.2mm	£7.35£8.82

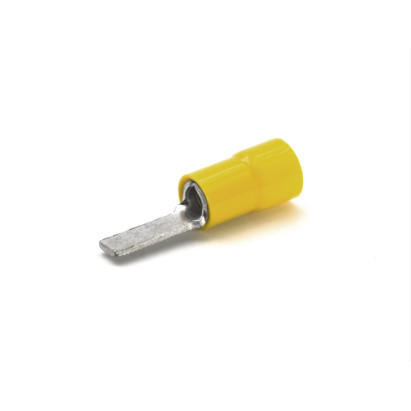

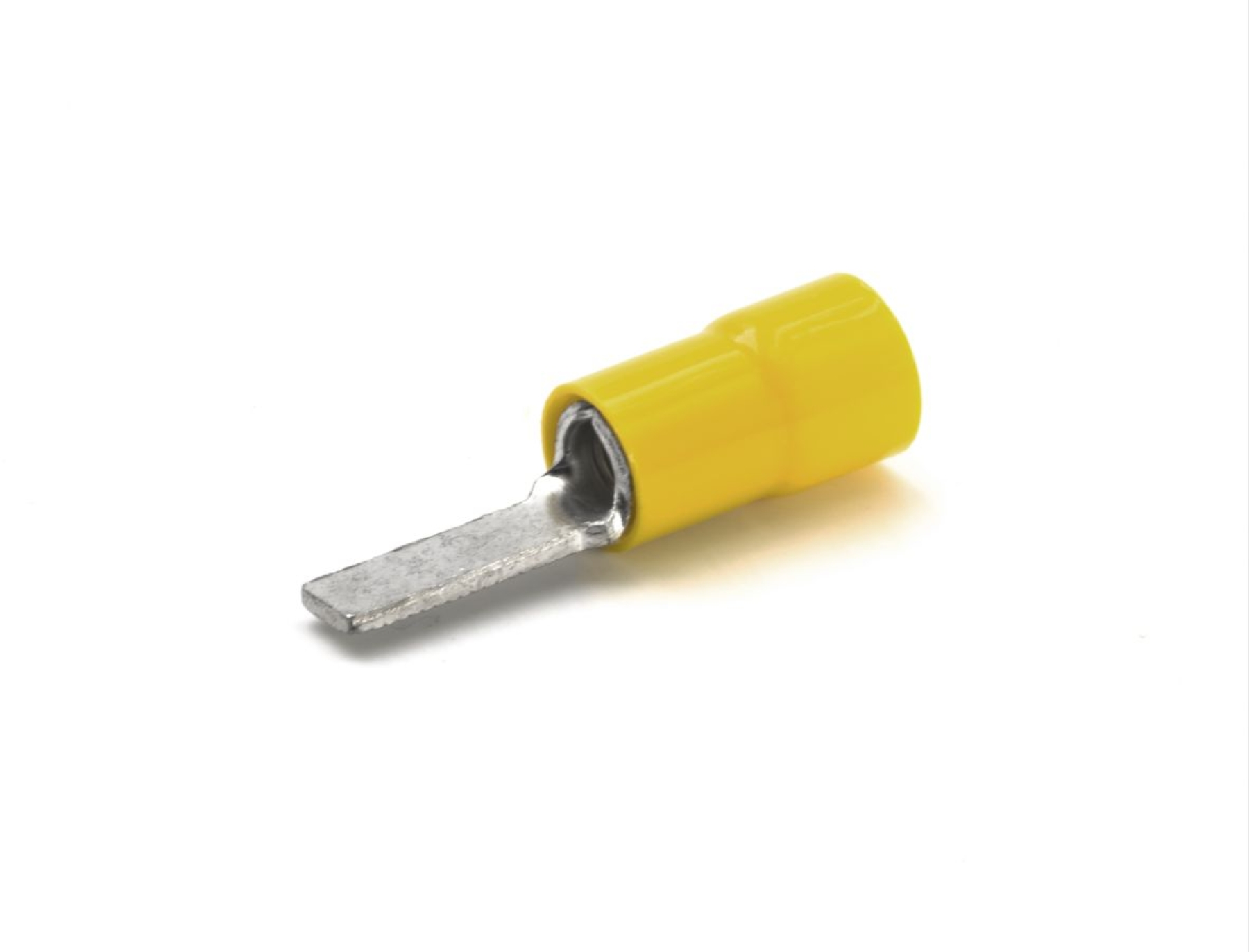

GF-PP12	CJ0839	Yellow	13.3mm	4-6mm²	Blade diameter 4.0mm, Blade length 13.3mm	£10.92£13.10

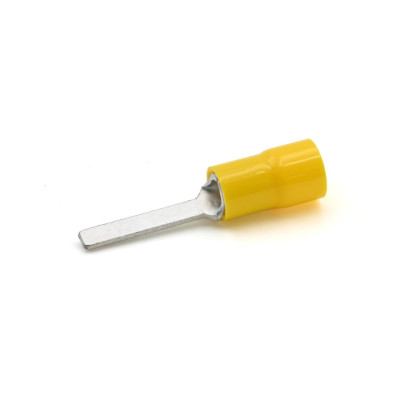

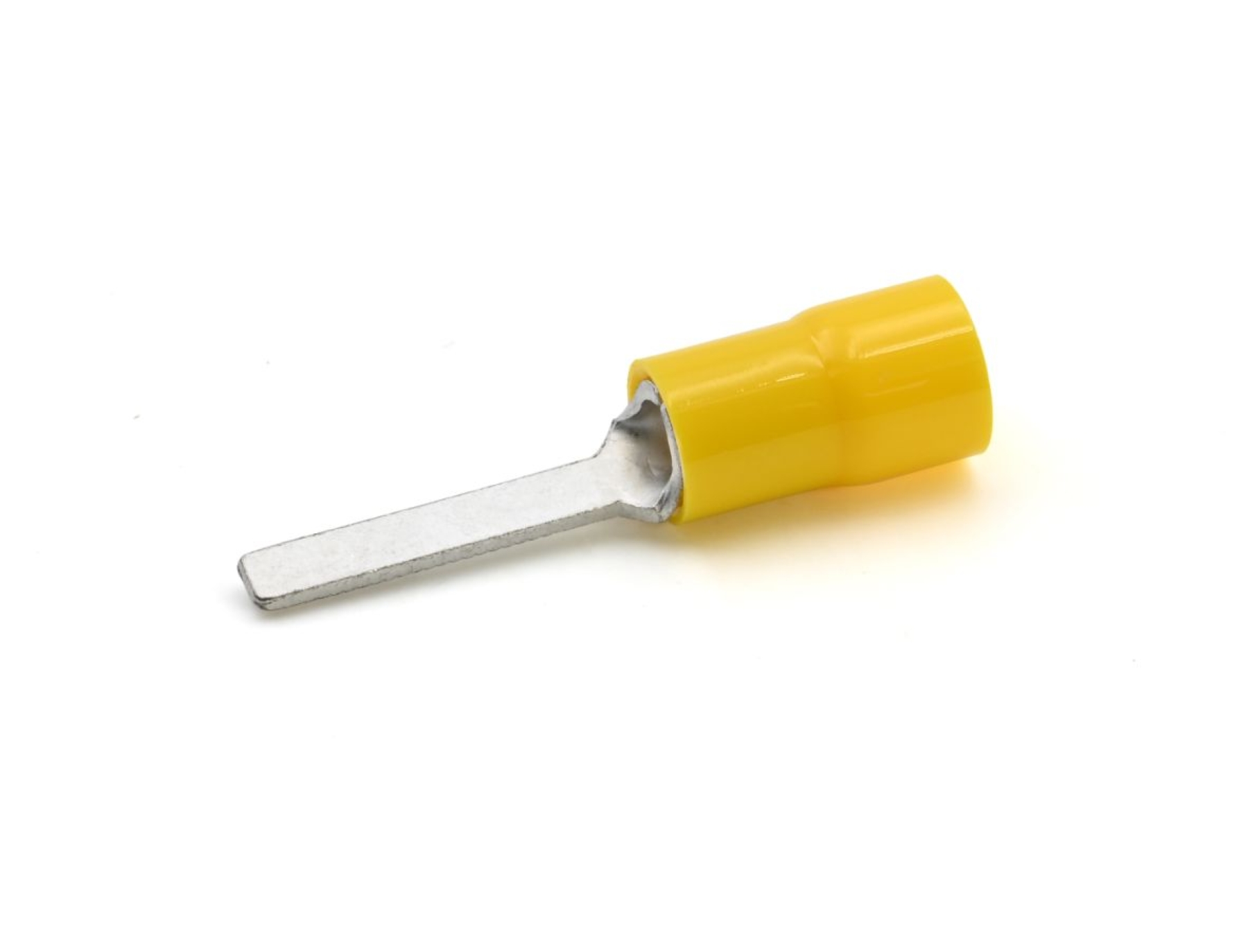

GF-PP17	CJ0829	Yellow	19.2mm	4-6mm²	Blade diameter 2.9mm, Blade length 19.2mm	£13.60£16.32
