Fork Terminals - PVC


from only £4.94 Ex VAT

Cembre Fork Terminals PVC Red, Blue & Yellow

Cembre terminations designed to offer improved mechanical and electrical integrity with heavy duty applications using a copper sleeve located between the copper barrel and polyamide terminal insulation

The sleeve is funnel shaped which allows easy entry for stranded conductors by smoothing the internal path

During crimping the insulation of the conductor is integrated into the crimp as the copper sleeve is reformed which maintains the grip levels necessary in applications subject to continual mechanical vibrations such as mobile plant. vehicles and moving components

  • Pre-insulated halogen free blade fork type terminal with funnel entry
  • Reinforced PA 6.6 insulated terminals
  • Manufactured from tin plated electrolytic copper
  • Funnel entry
  • Price per 100

OTHER SIZES AVAILABLE – PLEASE CONTACT YOUR LOCAL OFFICE TO RECEIVE A QUOTATION

Order
Part Number Wolseley Code Colour Fork Int Dia Conductor Size Price Ex VAT Quantity
RF-U3 CJ4163 Red 3.2mm 0.25-1.5mm² £4.94

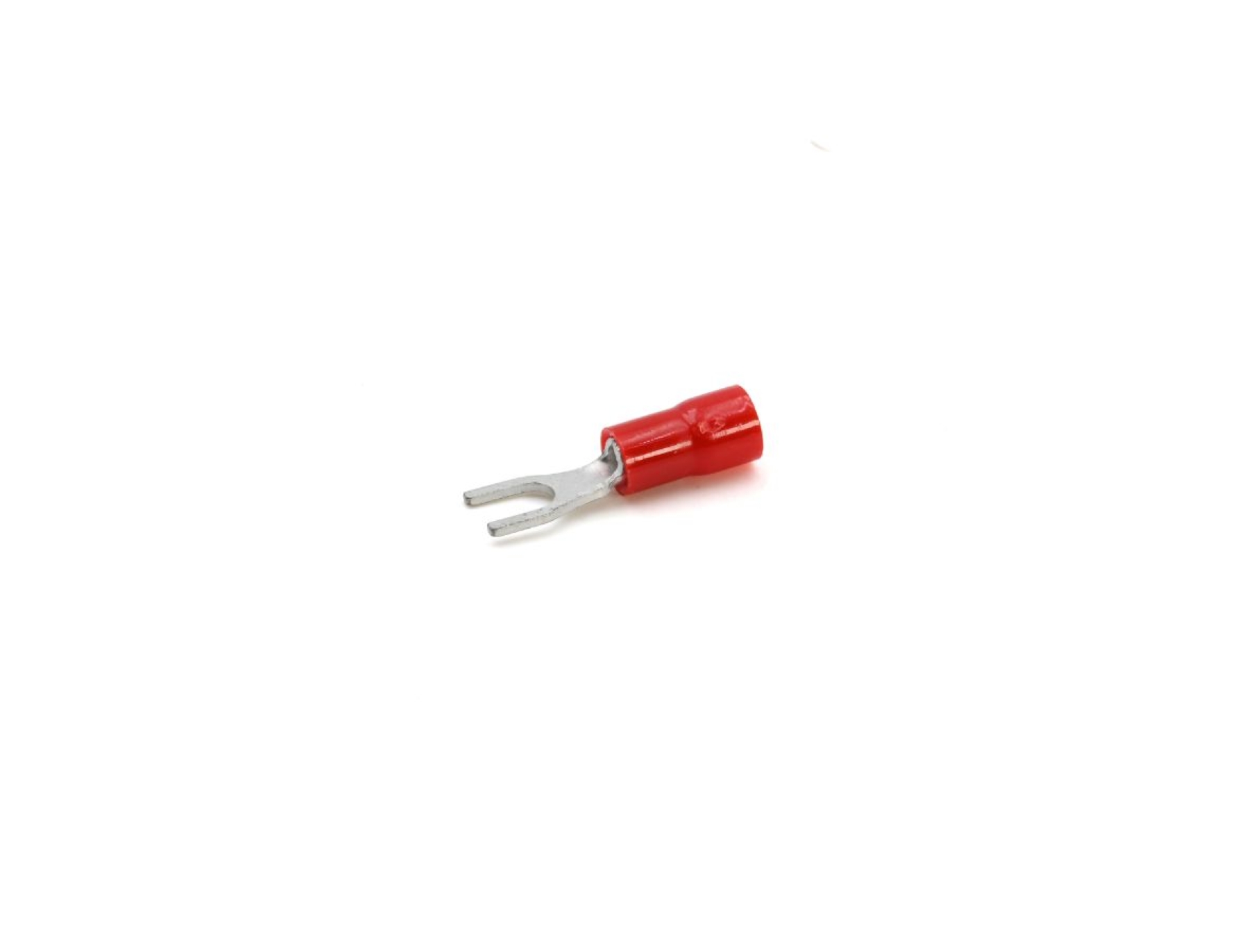

RF-U3.5 CJ4211 Red 3.7mm 0.25-1.5mm² £5.04
RF-U4 CJ0809 Red 4.3mm 0.25-1.5mm² £5.09
RF-U5 Red 5.3mm 0.25-1.5mm² £5.09

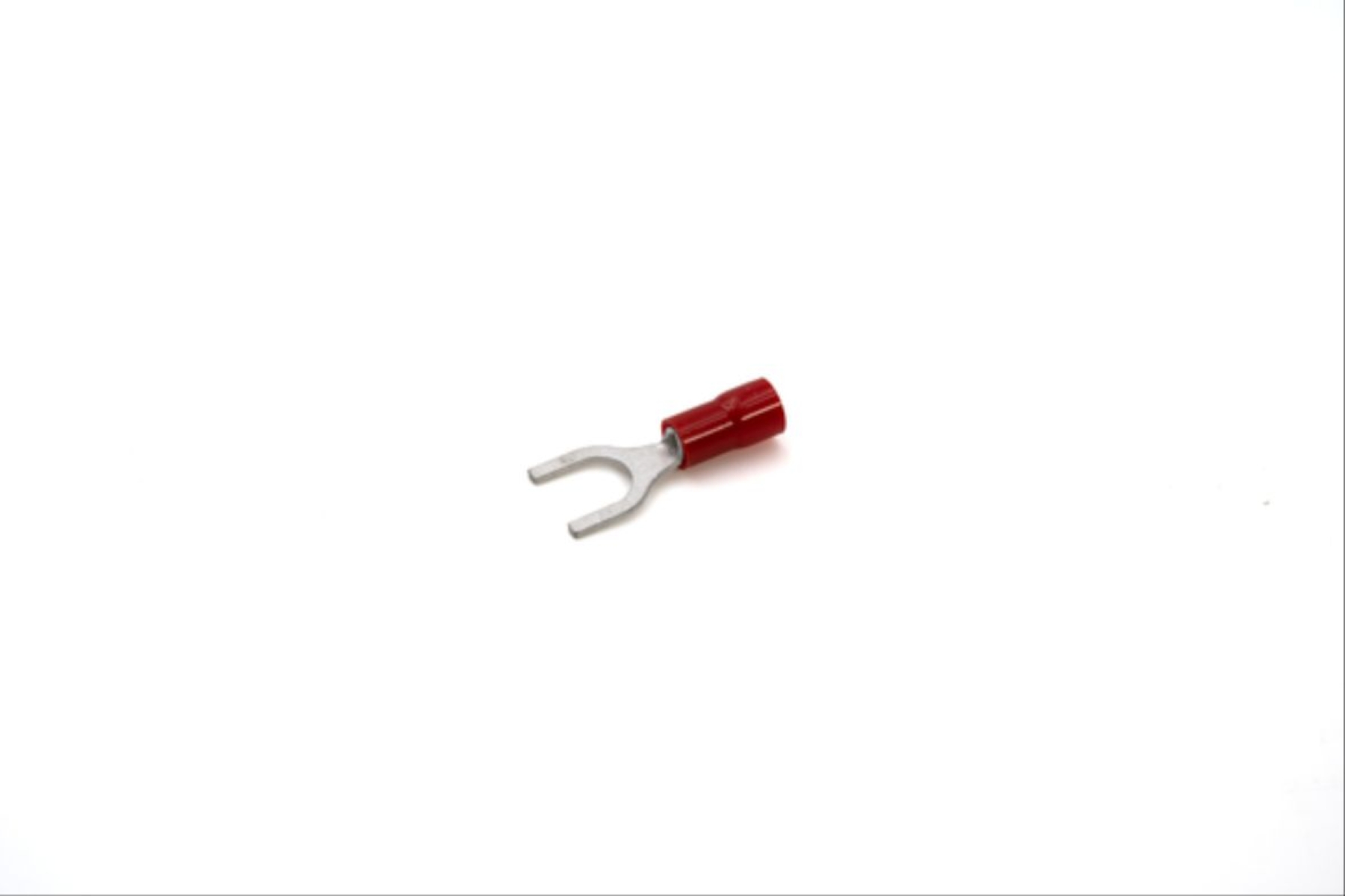

RF-U6 CJ0869 Red 6.4mm 0.25-1.5mm² £6.67
BF-U3 Blue 3.2mm 1.5-2.5mm² £5.15
BF-U3.5 Blue 3.7mm 1.5-2.5mm² £5.15
BF-U4 CJ3890 Blue 4.3mm 1.5-2.5mm² £5.20
BF-U5 Blue 5.3mm 1.5-2.5mm² £5.20
BF-U6 Blue 6.4mm 1.5-2.5mm² £6.09
BF-U8 Blue 8.4mm 1.5-2.5mm² £10.40
GF-U4 Yellow 4.3mm 4-6mm² £7.77
GF-U5 Yellow 5.3mm 4-6mm² £8.30
GF-U6 JZ0364 Yellow 6.4mm 4-6mm² £9.77
GF-U8 Yellow 8.4mm 4-6mm² £14.07
