GBZ Cable Sheath Stripper 15-55mm
from only £41.84 Ex VAT

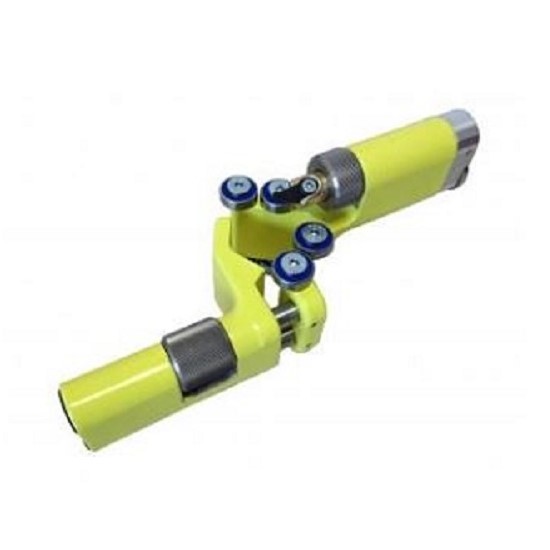

GBZ Tools - Cable Sheath Stripping & Insulation Removal Tool 15-55mm
Easy and safe cutting and removing of outer jacket and insulation.
- Just one tool but with two functions.
- This tool cuts outer jackets from diameter 15 up to 55 mm (an additional plastic insert GB-M20-S9 is required for diameter smaller than 22 mm) and the XLPE insulation up to a thickness of 8 – 10 mm.
- The automatic feed (step “1” and “2”) and the “O” position, for a radial cutting, guarantees a quick, safe and exact cutting of the cable jacket and insulation.
- To protect the prepared insulation screen and for cable diameter smaller than Ø 25 mm, use the plastic insert GB-M20-S9.

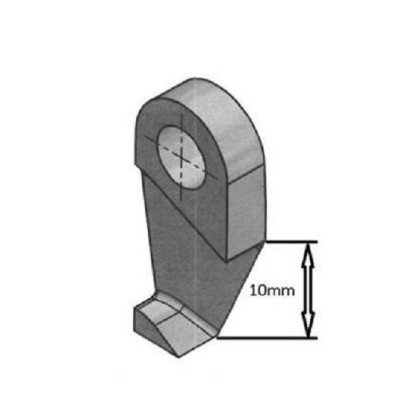

- Due to the placement and design of the cutting blade, the sheath will be lifted at the cutting point so that there is no danger of damaging the components below the sheath.
- A cutting depth of approx. 80 % will be sufficient. For further details you may check the manual instruction of the tool.
- Two functions in one tool
- Cutting and removing of Jacket screen and insulation
