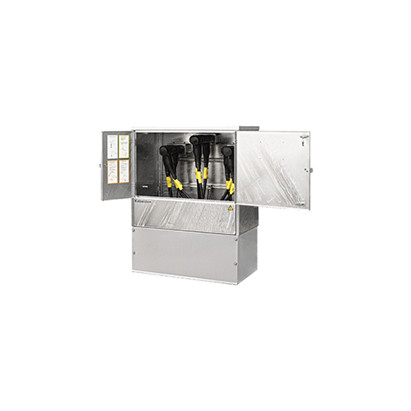

HDC Cable Cabinet - 630A


from only POA

HDC cable cabinets to join and branch 1-core & 3-core XLPE cables 12-36kV

  • The enclosure is made of hot dip galvanised sheet steel with foundation base plate
  • Additional corrosion protection for buried parts
  • The screened separable cable connections are connected by coupling pieces which are mounted in the enclosure
  • When branching parallel connector PC630 is required
  • Any chosen cable can be disconnected for live sectioning or to be earthed
  • The cabinet is supplied with padlocks and shackles
  • For 3 core cables, screen separation kits must be used
  • The cable cabinet is supplied with 2 x 3 phase kits, separable connectors, capacitive test point included
Technical Data
  • Enclosures meet the requirements of mechanical impact tests -iec 60439-5
  • Meets the requirements of electrical tests - SS424 14 45
  • Cenelec: hd 628.1 S1 & hd 629.1 S1
Order
Part Number Voltage Conductor Size Price Quantity
HDC-A 12630-01 12kV 25-70mm² POA
HDC-A 12630-02 12kV 95-300mm² POA
HDC-A 12630-03 12kV 400-630mm² POA
HDC-A 12630-01 24kV 25-70mm² POA
HDC-A 12630-02 24kV 95-300mm² POA
HDC-A 12630-03 24kV 400-630mm² POA
HDC-A 12630-01 36kV 25-70mm² POA
HDC-A 12630-02 36kV 95-300mm² POA
HDC-A 12630-03 36kV 400-630mm² POA
