HV 2 Bolt Copper Lugs 2A-2M Series

Show VAT

from only £5.78 Ex VAT£6.94 Inc VAT

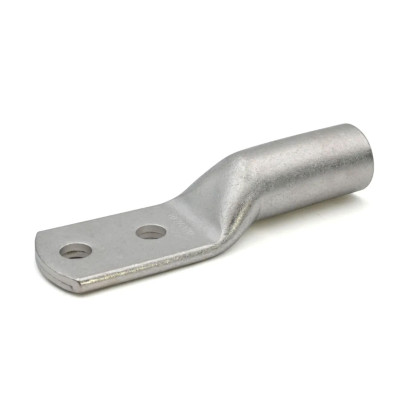

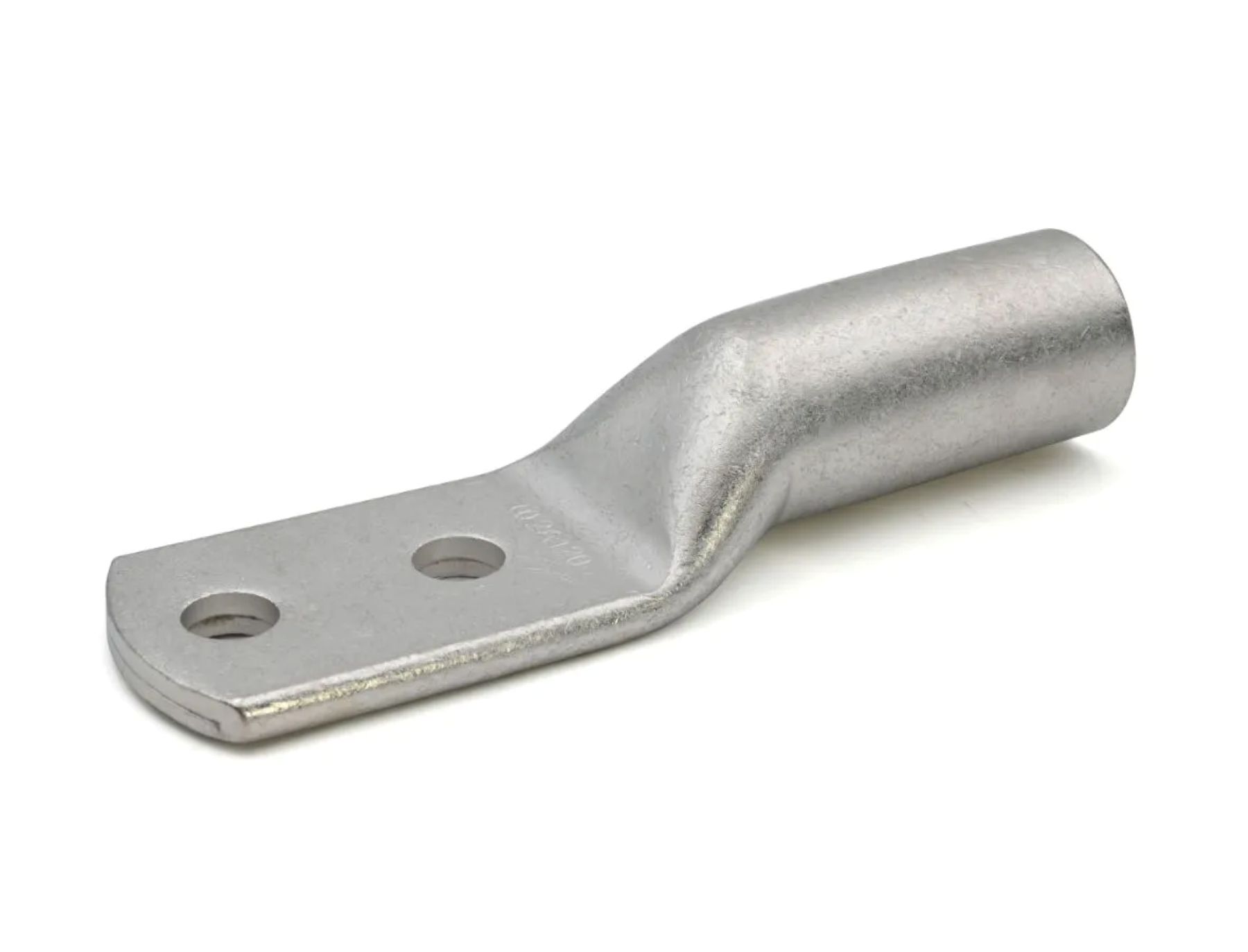

Cembre HV Two bolt copper tube crimping lugs

2A-2M Copper Tube Terminal Lugs are designed for high voltage applications up to 33kV
Manufactured from high purity copper tube, annealed and tin-plated
The extended barrel enhances electrical and mechanical performance
The absence of an inspection hole prevents moisture entry into the crimped joint
Featuring an extended palm with two fixing holes at 44.5mm centres
Manufactured by industry leaders Cembre

Datasheets

Order

Part Number	Wolseley Code	Hole Size	Conductor Size	Price Ex VATInc VAT

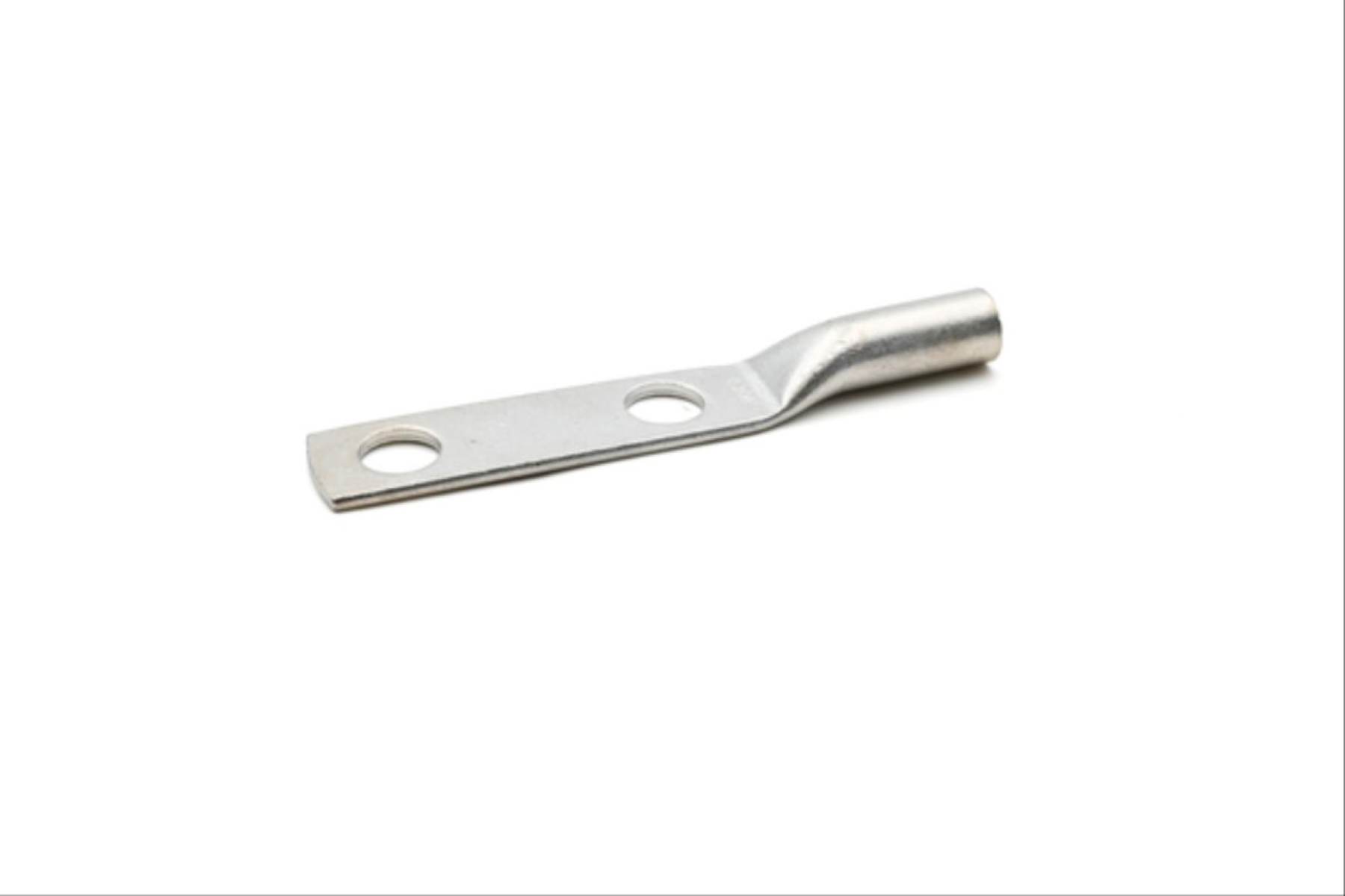

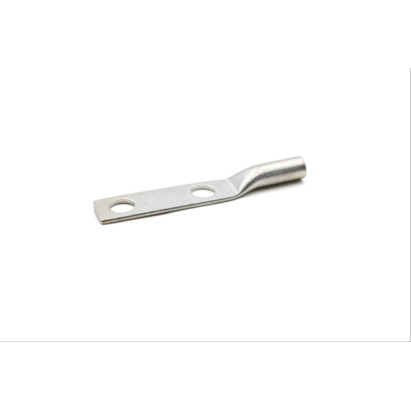

2A10-2M12	JZ0277	12mm	50mm	£5.78£6.94

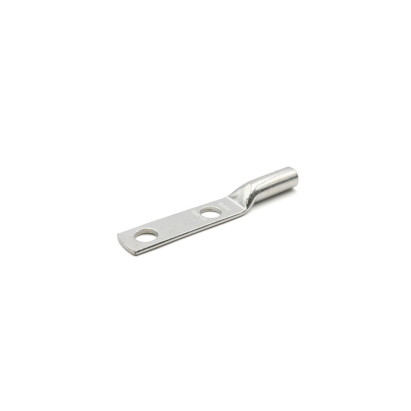

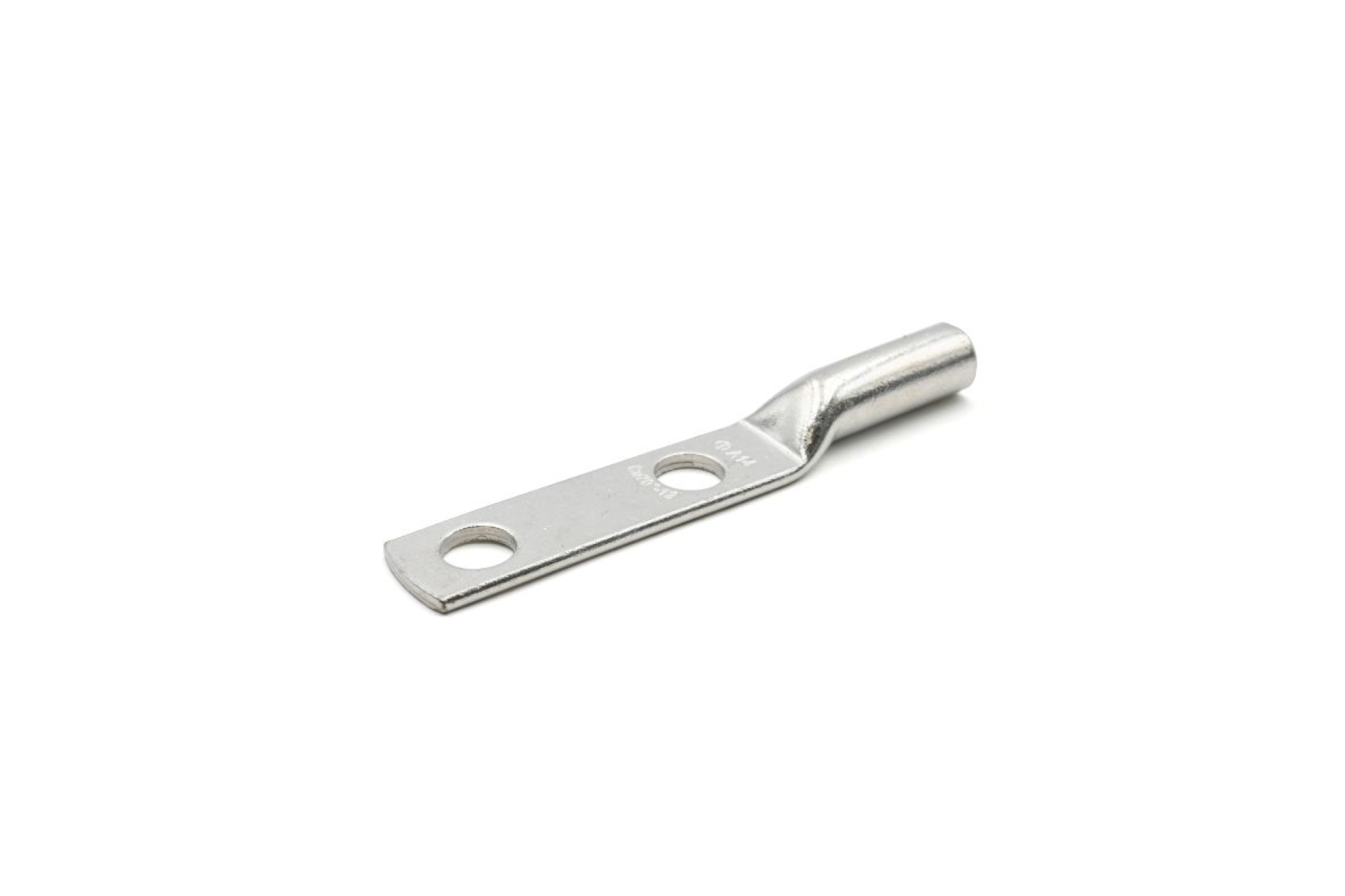

2A14-2M12	VB96616	12mm	70mm	£7.40£8.88
2A19-2M12	CJ0703	12mm	95mm	£9.43£11.32
2A24-2M12	CJ0601	12mm	120mm	£10.61£12.73
2A24-2M14	CJ3724	14mm	120mm	£10.61£12.73
2A24-2M16	CJ0582	16mm	120mm	£10.87£13.04
2A30-2M12	CJ0760	12mm	150mm	£12.55£15.06
2A37-2M12	CJ0689	12mm	185mm	£15.07£18.08
2A37-2M16	CJ0651	16mm	185mm	£21.68£26.02
2A48-2M12	CJ0554	12mm	240mm	£21.63£25.96
2A48-2M16	CJ0573	16mm	240mm	£20.48£24.58

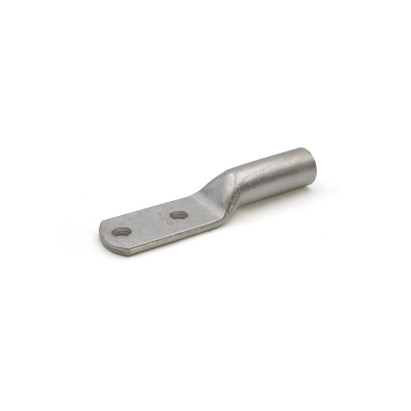

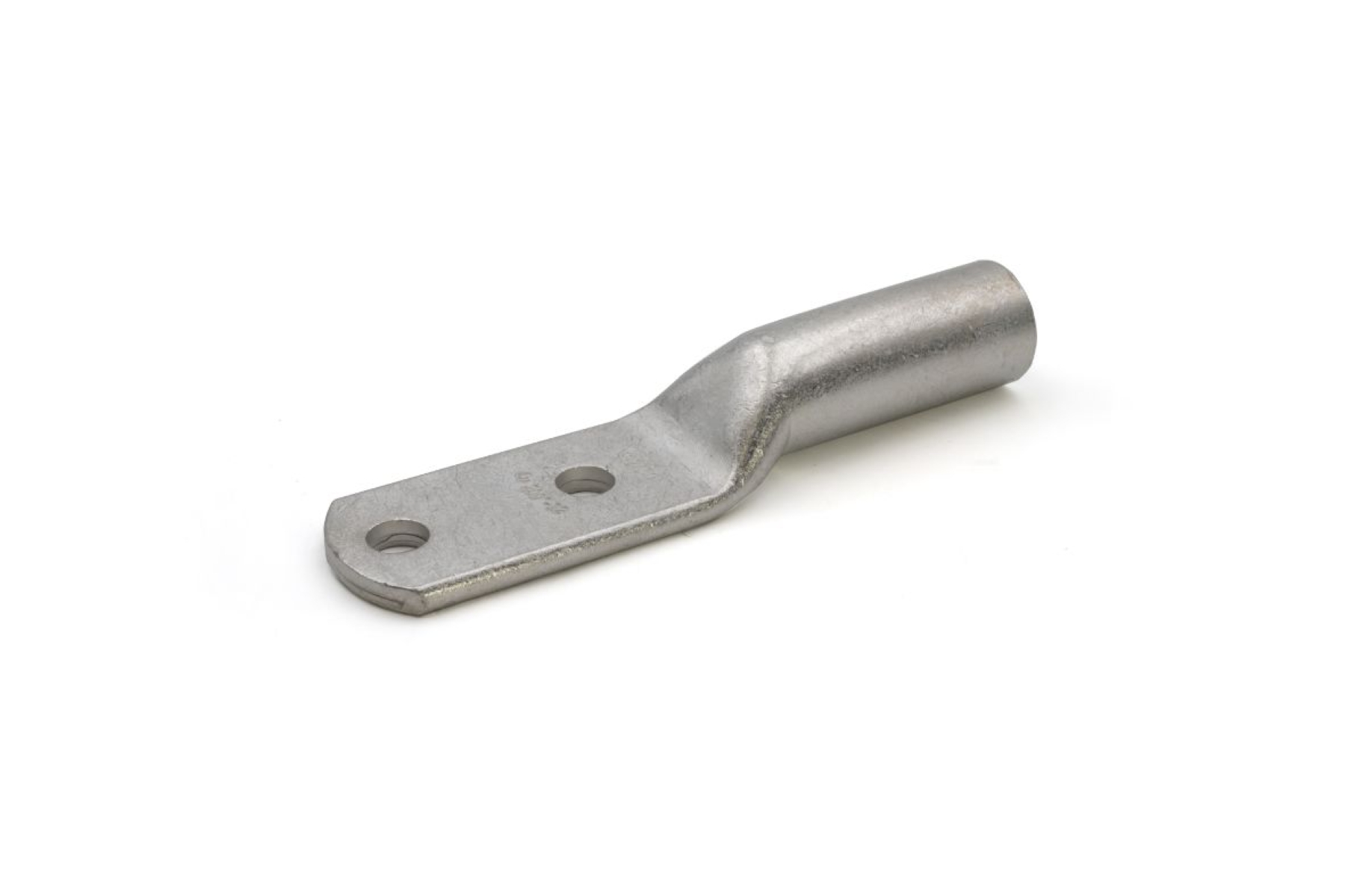

2A60-2M12	CJ0686	12mm	300mm	£25.78£30.94
2A80-2M12	CJ0912	12mm	400mm	£41.69£50.03
2A80-2M14		14mm	400mm	£41.69£50.03
2A80-2M16	CJ3804	16mm	400mm	£41.69£50.03
2A100-2M12	CJ0540	12mm	500mm	£46.20£55.44
2A100-2M14	CJ0746	14mm	500mm	£52.06£62.47
2A100-2M16	CJ0546	16mm	500mm	£46.20£55.44
2A120-2M12	CJ0572	12mm	630mm	£54.08£64.90
2A120-2M14	CJ0541	14mm	630mm	£54.08£64.90
2A160-2M16	JZ0879	16mm	800mm	£91.72£110.06

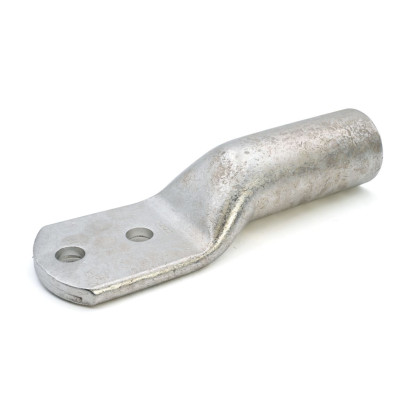

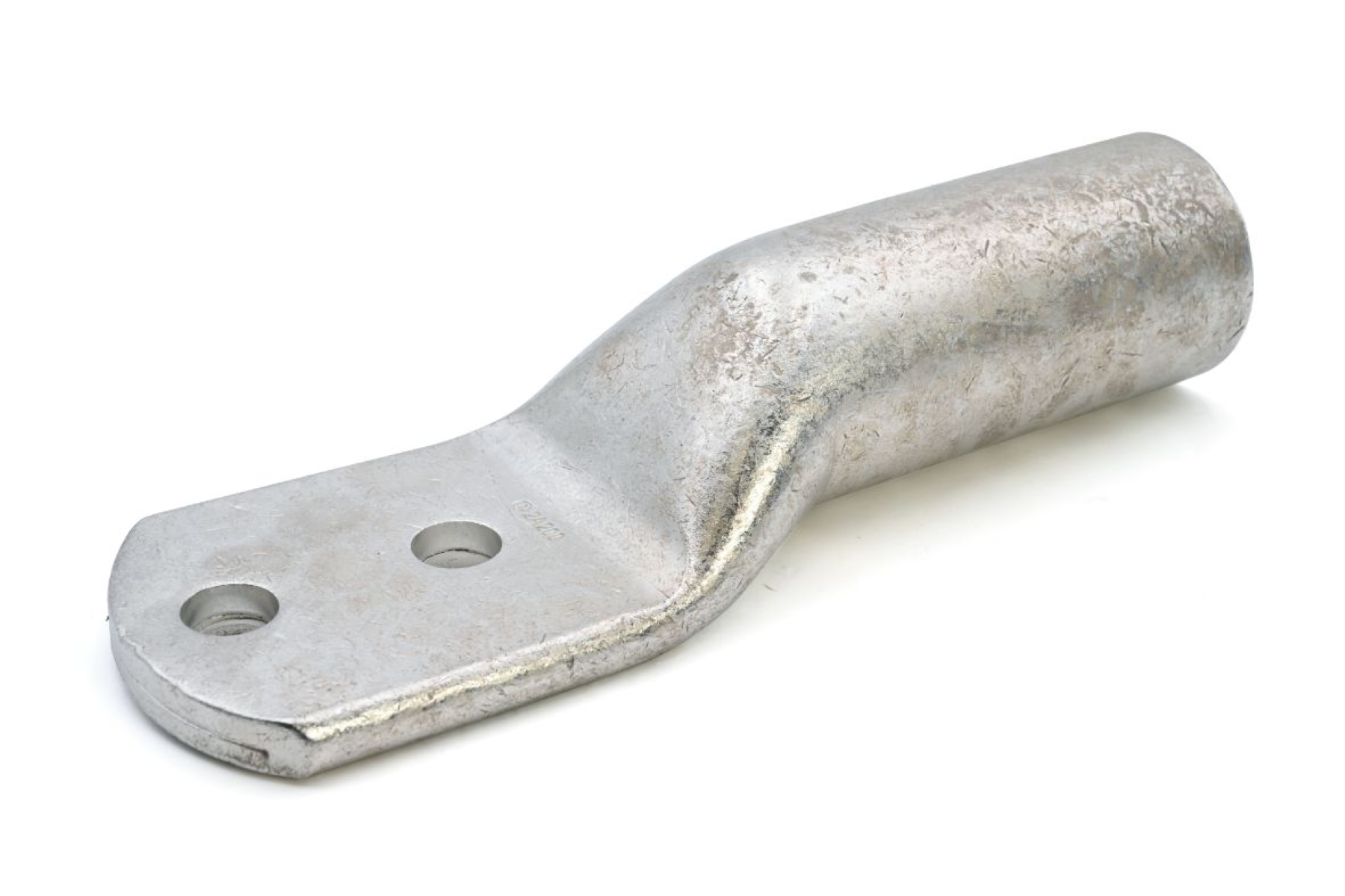

2A200-2M16		16mm	1000mm	£115.50£138.60
2A200-2M20		20mm	1000mm	£133.35£160.02
