HV 2 Bolt Copper Lugs – CA Series


from only £9.29 Ex VAT

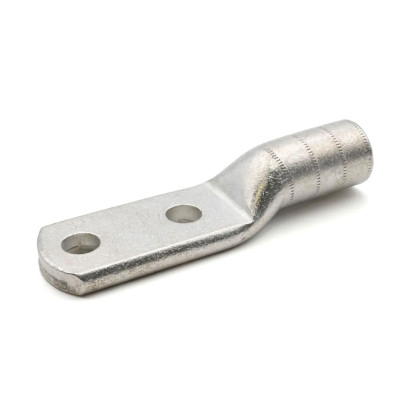

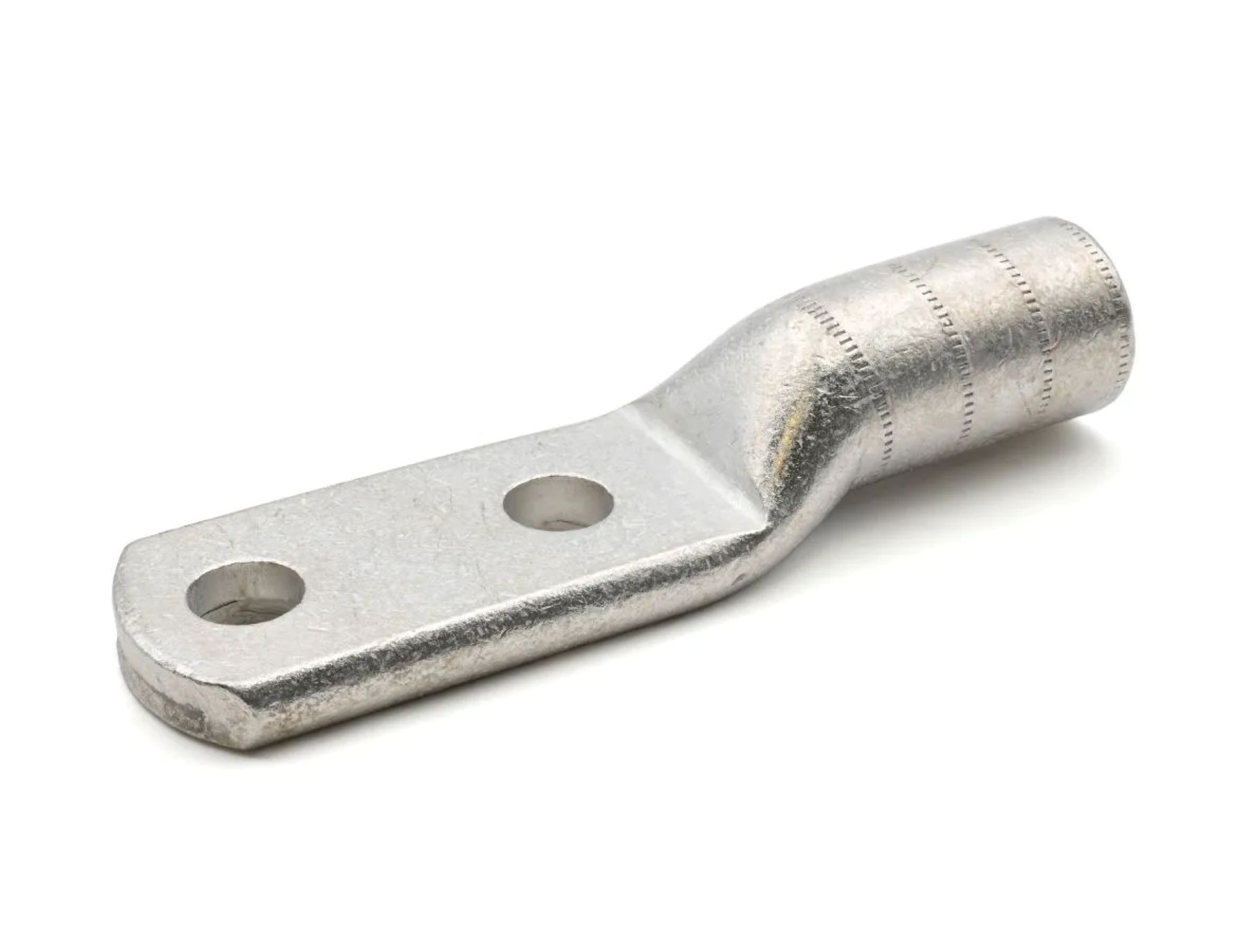

Cembre HV Two bolt copper tube crimping lugs

CA-2M Copper Tube Terminal Lugs are designed for high voltage applications up to 33kV.

  • Designed to be crimped onto a conductor to facilitate the termination of the cable via the 2 lug holes
  • HV copper lugs are electrolytically tin plated to avoid oxidation
  • HV copper lugs have a double length barrel for enhanced electrical & mechanical performance
  • Featuring an extended palm with two fixing holes at 44.5mm centres
  • The absence of an inspection hole prevents moisture entry into the crimped joint.
  • Manufactured from high purity copper tube, annealed and tin-plated. The extended barrel enhances electrical and mechanical performance
Technical Data
  • 33kV rated
  • Tested to BS EN 61238
  • UL Listed (up to 300mm
  • CA-2M series lugs are manufactured from electrolytic copper tube Cu-OF CW008A conform to UNI EN 13600?
Order
Part Number Wolseley Code Hole Size Conductor Size Price Ex VAT Quantity
CA35-2M12 12mm 35mm² £9.29
CA50-2M12 12mm 50mm² £10.82

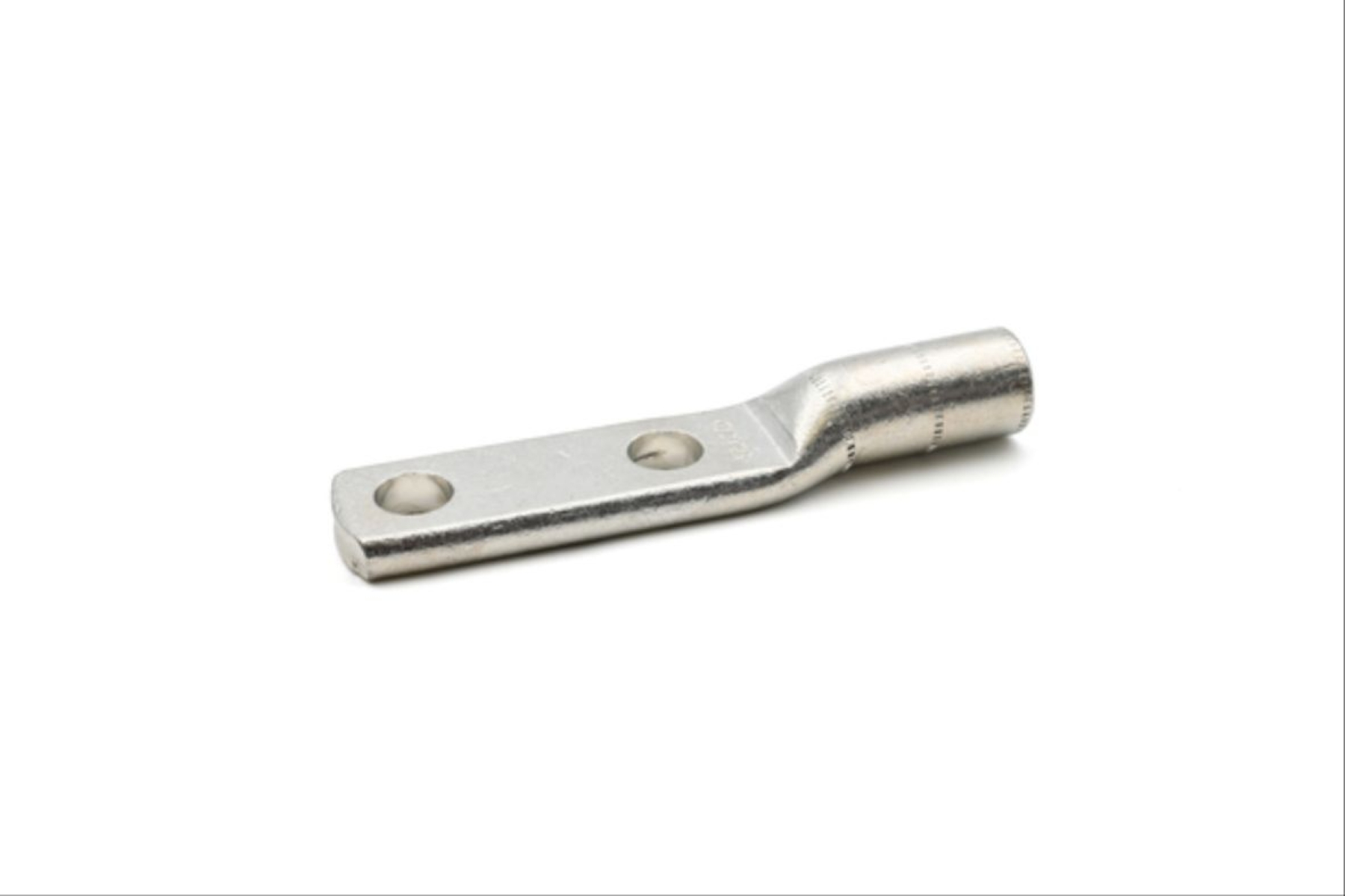

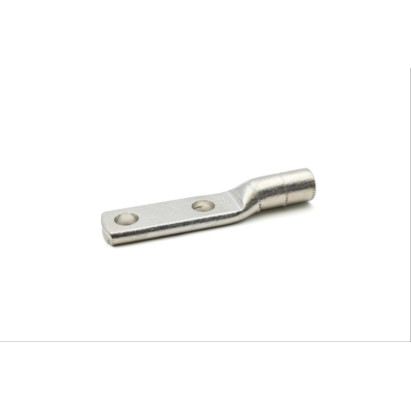

CA70S-2M12 CJ4210 12mm 70mm² £15.28
CA95-2M12 CJ0715 12mm 95mm² £18.90
CA120-2M12 CJ0584 12mm 120mm² £21.11
CA150-2M12 CJ0650 12mm 150mm² £21.11
CA185-2M12 CJ0640 12mm 185mm² £21.11
CA240-2M12 CJ3719 12mm 240mm² £33.60
CA300-2M12 CJ0547 12mm 300mm² £34.65
