HV Copper Lugs


from only £0.90 Ex VAT

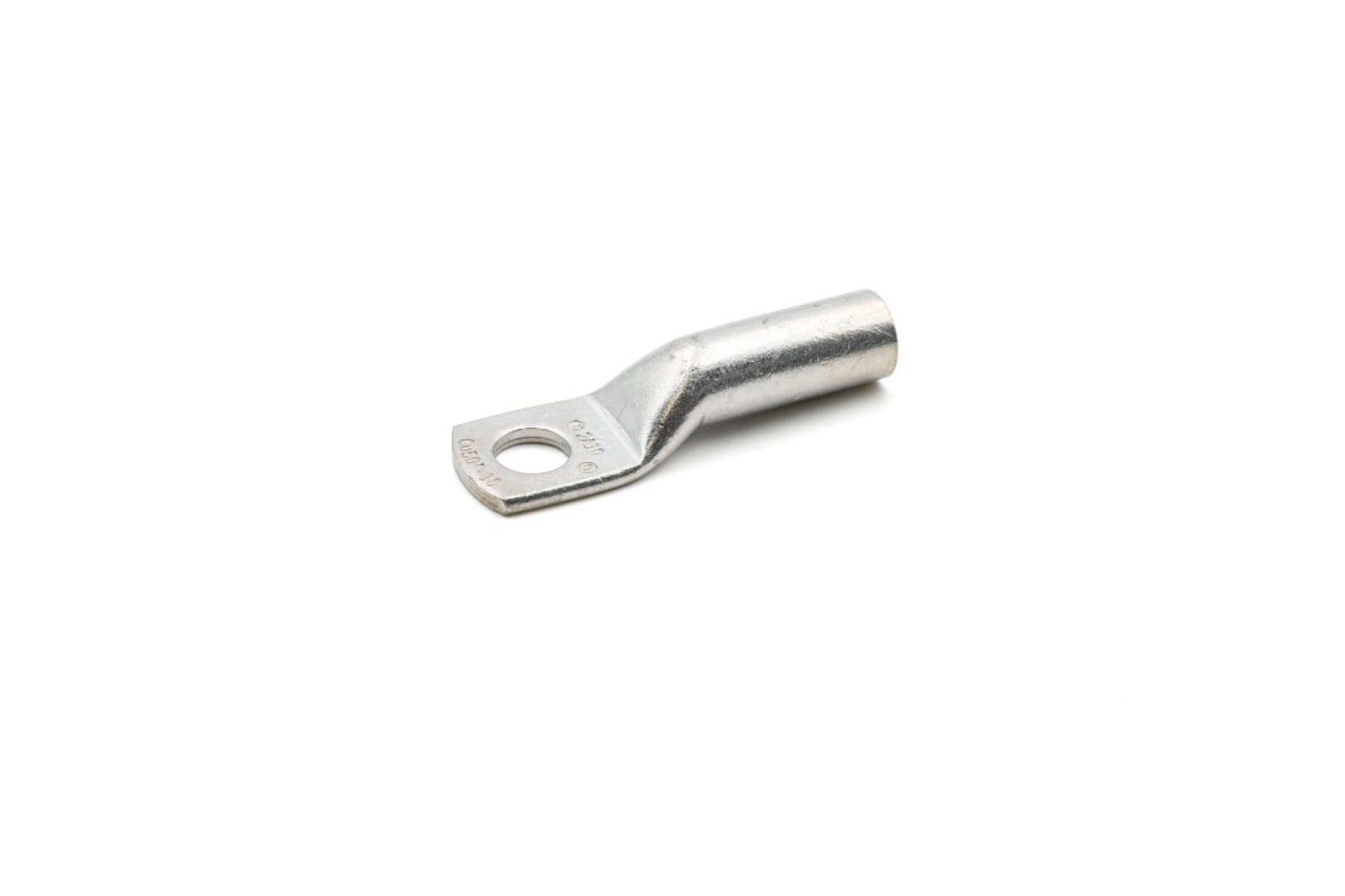

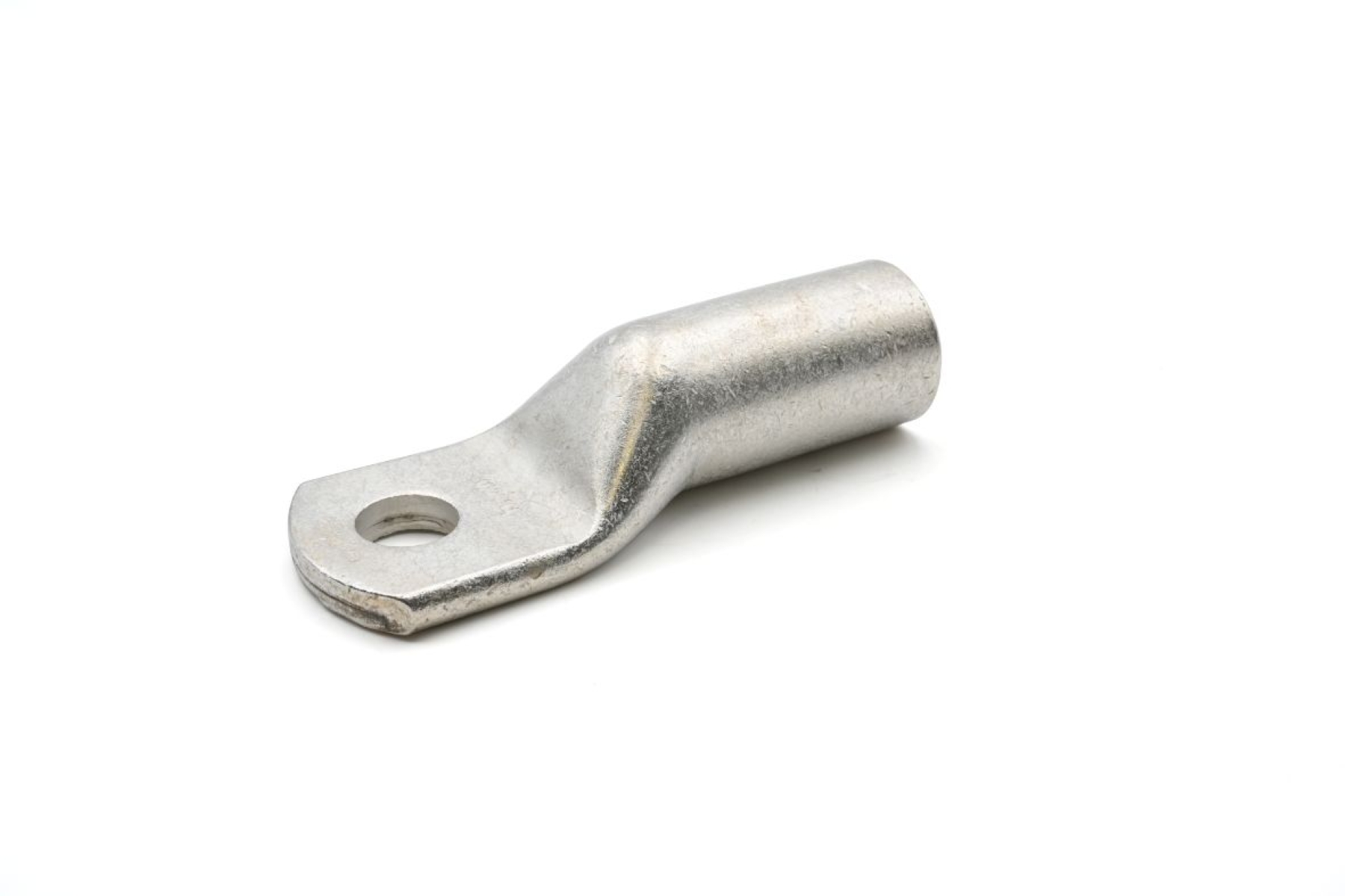

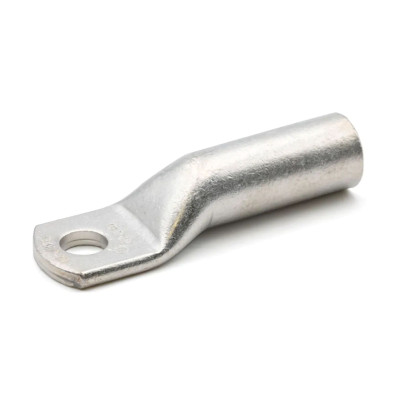

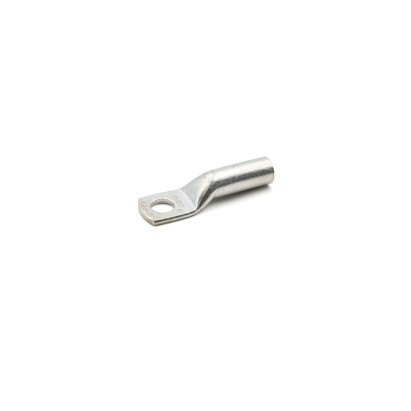

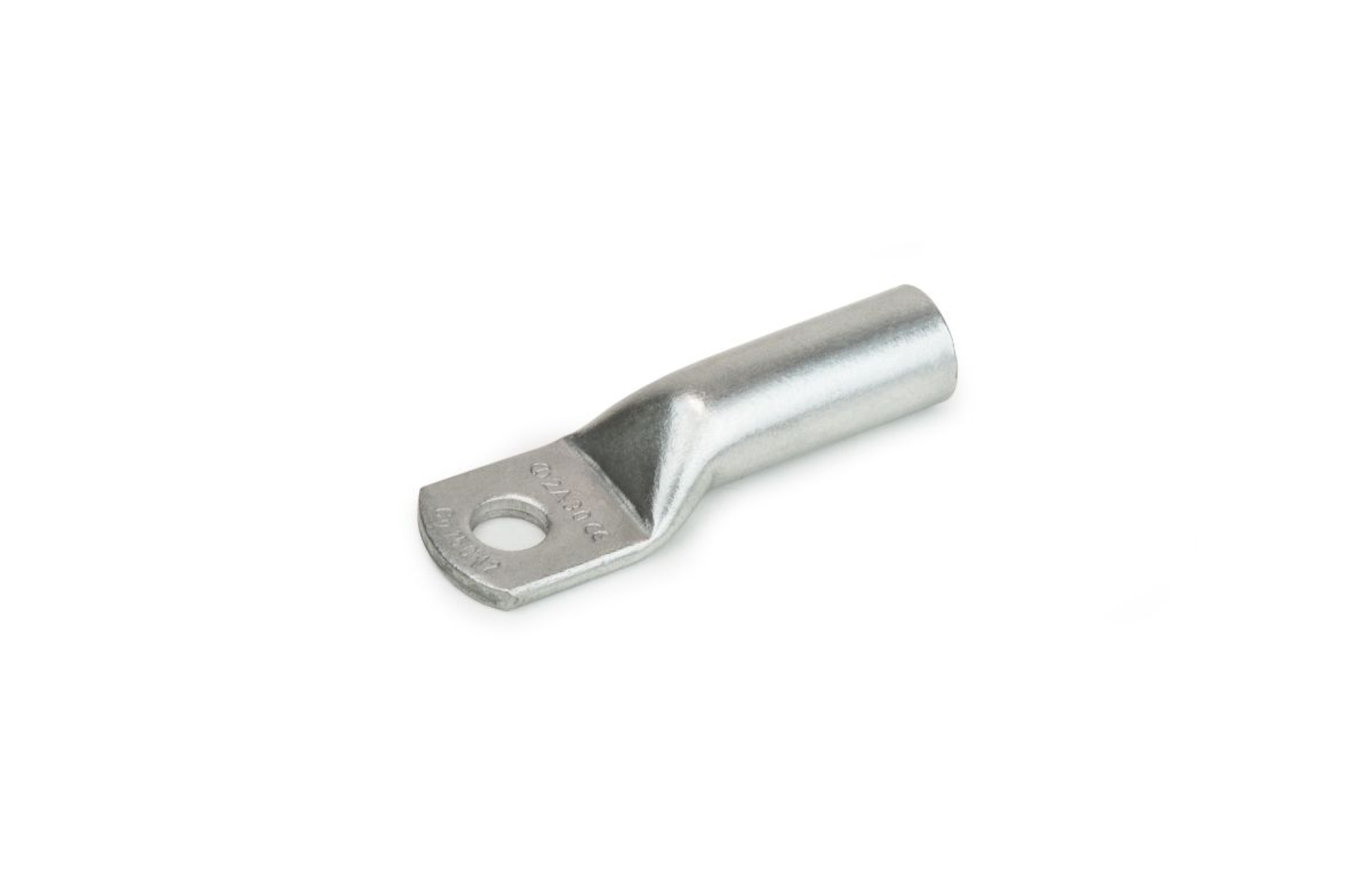

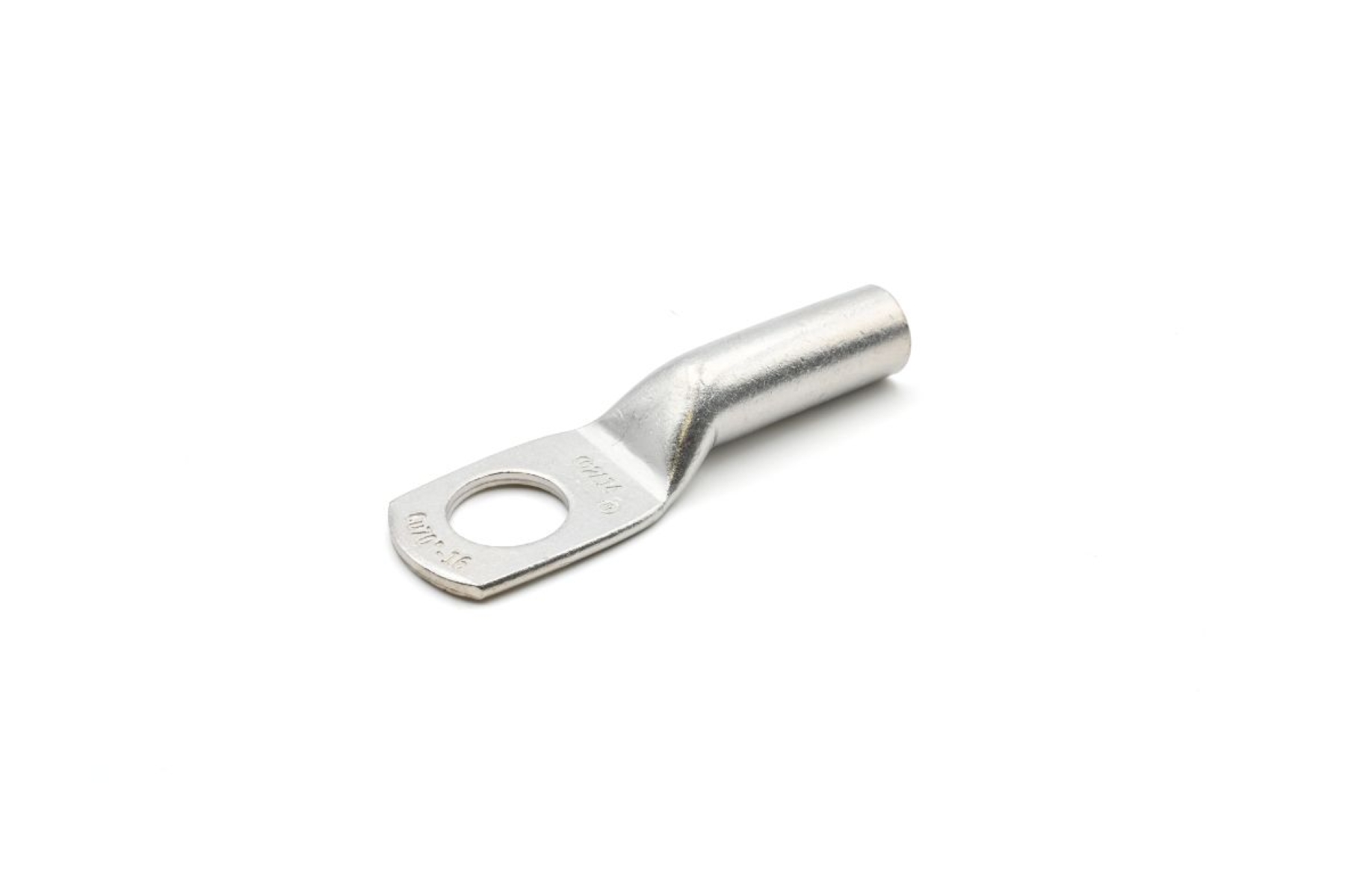

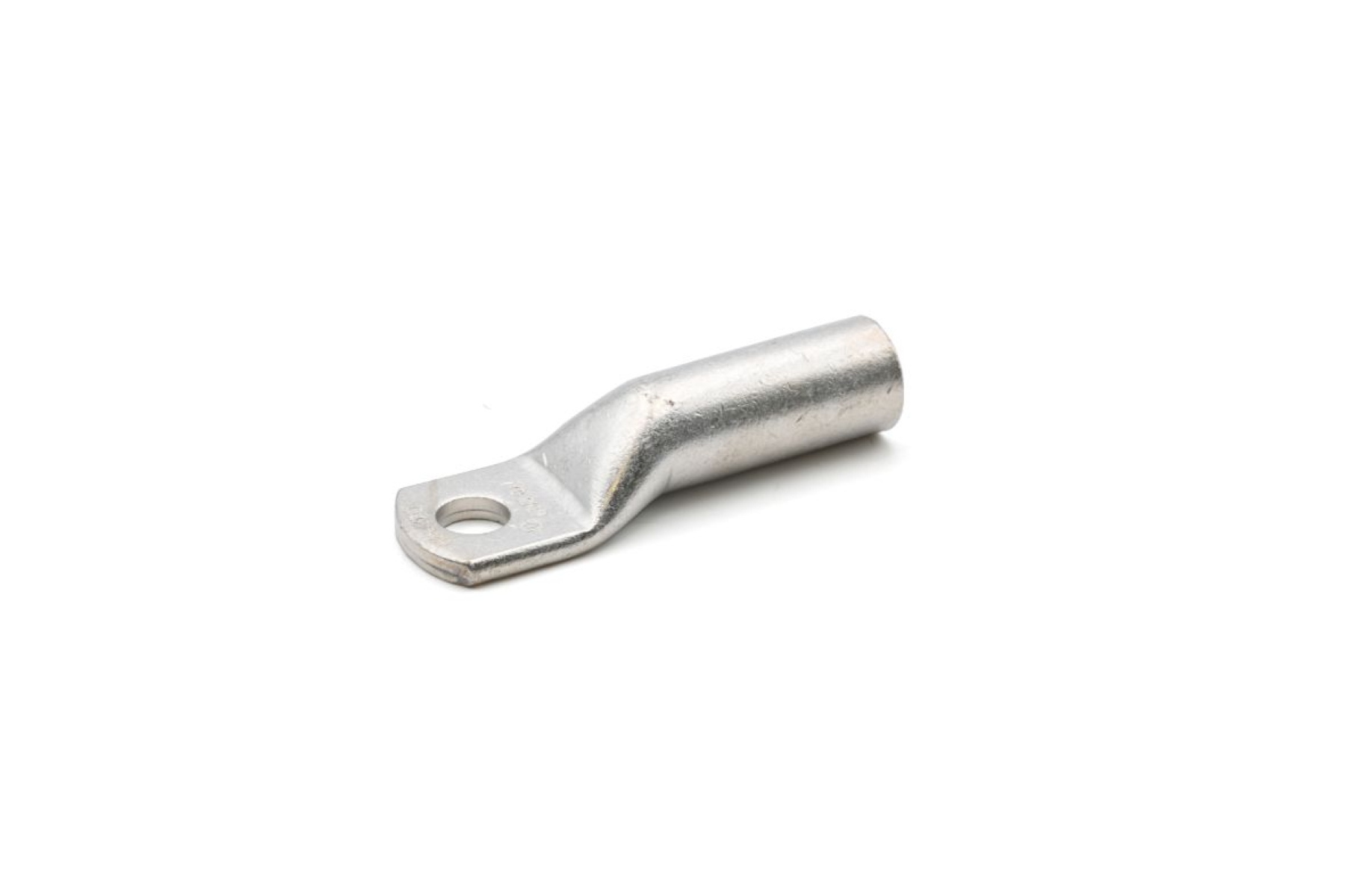

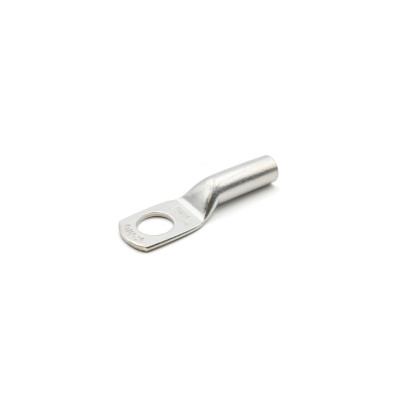

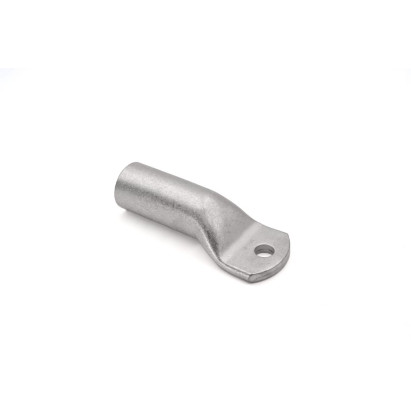

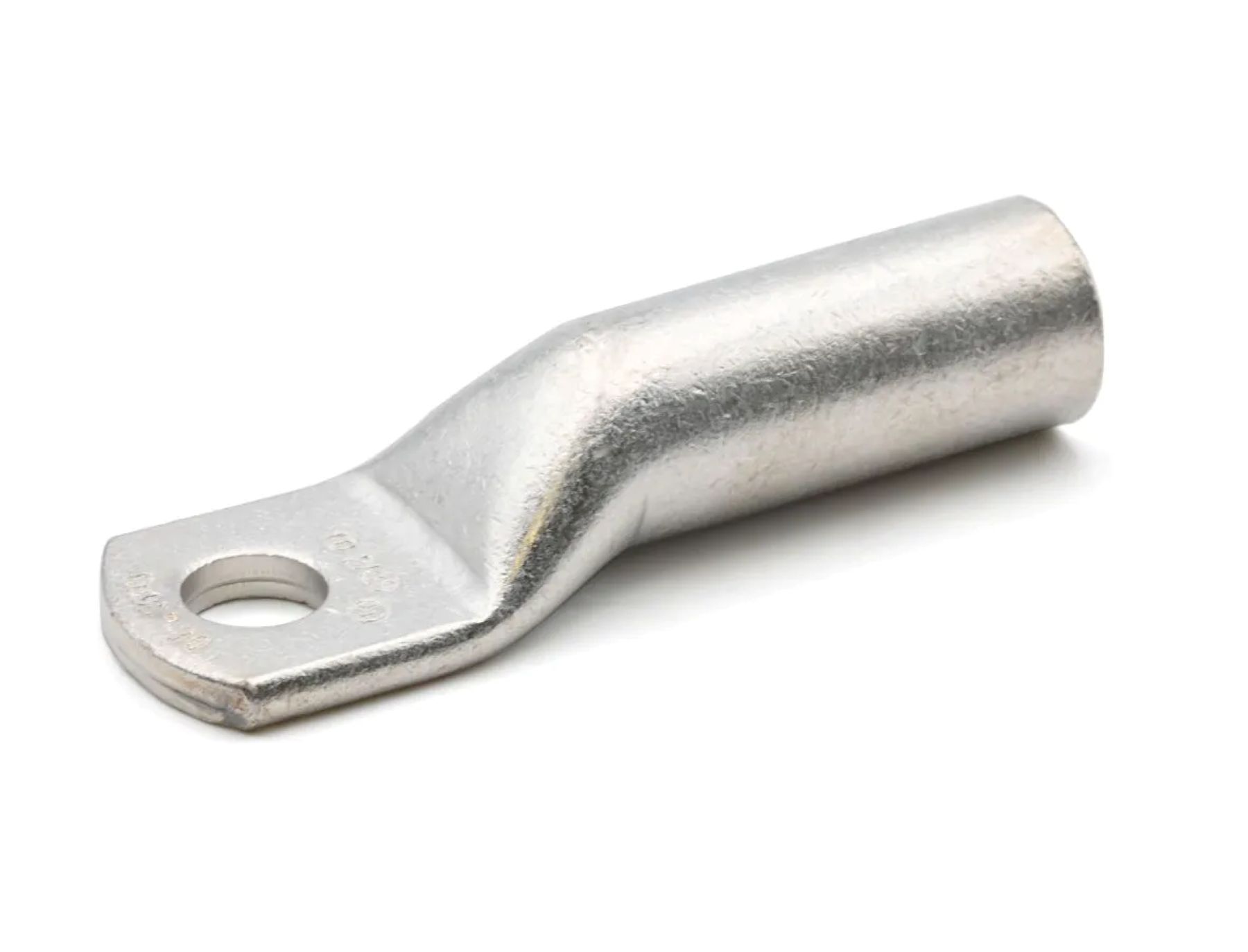

Cembre HV copper tube crimping lugs

The 2A-M series cable lugs are designed for heavy duty, for grounding structures and equipment both indoors and outdoors and for medium voltage applications up to 35 kV

  • 2A-M series terminals are made from high purity copper tube with a purity greater than 99.9%, and are annealed.
  • The lugs feature a double length barrel for enhanced electrical and mechanical performance suitable for heavy duty applications.
  • Cembre lugs are annealed to guarantee optimum ductility which is an absolute necessity for connectors which will have to withstand the severe deformation arising when compressed and any bending of the palm during installation.
  • In applications subject to vibration, terminals still have to perform a reliable connection, annealing plays a vital role in avoiding cracking or breaks between the barrel and palm.
  • The absence of an inspection hole prevents the entry of water or moisture into the crimped joint making these terminals suitable for outdoor applications.
  • 2A-M series lugs form an important part of Cembre crimping systems for power carrying conductors.

Each connector is marked as follows:

  • Cembre trade mark and reference number
  • Nature and size of conductor (sqmm)
  • Ø stud (mm)
Technical Data
  • 33kV rated
  • Tested to BS EN 61238
  • UL Listed (up to 300mm2)
  • DEF Standard 59-71 Approved
  • Lugs are manufactured from electrolytic copper tube Cu-OF CW008A conforming to UNI EN 13600:2013.
  • Lugs are electrolytically tin plated with a minimum thickness of 3μm to avoid oxidation.
Order
Part Number Wolseley Code Lug Hole Size Conductor Size Price Ex VAT Quantity
2A3-M8 CJ3907 8.0mm 16mm² £0.90
2A3-M10 CJ0770 10mm 16mm² £0.95
2A5-M10 CJ0868 10mm 25mm² £1.03
2A5-M12 CJ0732 12mm 25mm² £1.14
2A7-M8 CJ0744 8.0mm 35mm² £1.31
2A7-M10 CJ0754 10mm 35mm² £1.42
2A7-M12 CJ0652 12mm 35mm² £1.53
2A10-M10 CJ0656 10.0mm 50mm² £1.68
2A10-M12 CJ0551 12mm 50mm² £1.79
2A10-M14 JZ0169 14mm 50mm² £2.57
2A10-M16 CJ0882 16mm 50mm² £2.31
2A14-M10 CJ0629 10.0mm 70mm² £2.49
2A14-M12 CJ0536 12mm 70mm² £2.60
2A14-M14 VC02954 14mm 70mm² £3.31
2A14-M16 CJ0659 16mm 70mm² £3.57
2A19-M10 CJ0575 10.0mm 95mm² £3.44
2A19-M12 CJ0525 12mm 95mm² £3.73
2A19-M14 CJ0589 14mm 95mm² £4.04
2A19-M16 CJ0664 16mm 95mm² £3.92
2A19-M20 20mm 95mm² £4.57
2A24-M10 CJ0610 10.0mm 120mm² £5.62
2A24-M12 CJ0542 12mm 120mm² £4.78
2A24-M14 CJ0783 14mm 120mm² £5.09
2A24-M16 CJ0665 16mm 120mm² £4.94
2A24-M20 JZ0246 20mm 120mm² £5.62
2A30-M10 CJ0818 10.0mm 150mm² £9.82
2A30-M12 CJ0574 12mm 150mm² £7.04
2A30-M14 CJ3801 14mm 150mm² £7.77
2A30-M16 CJ0557 16mm 150mm² £7.77
2A30-M20 20mm 150mm² £14.18
2A37-M10 CJ0627 10.0mm 185mm² £9.87
2A37-M12 CJ0549 12mm 185mm² £9.87
2A37-M14 CJ0743 14mm 185mm² £10.13
2A37-M16 CJ0579 16mm 185mm² £10.66
2A37-M20 20mm 185mm² £13.70
2A48-M10 CJ0626 10.0mm 240mm² £13.13
2A48-M12 CJ0519 12mm 240mm² £13.13
2A48-M14 14mm 240mm² £13.33
2A48-M16 CJ0532 16mm 240mm² £13.33
2A48-M20 JZ0580 20mm 240mm² £15.65
2A60-M12 CJ0522 12mm 300mm² £18.27
2A60-M14 14mm 300mm² £18.27
2A60-M16 CJ0512 16mm 300mm² £18.27
2A60-M20 CJ0618 20mm 300mm² £20.48
2A80-M12 CJ0515 12.0mm 400mm² £30.61
2A80-M14 CJ0684 14mm 400mm² £30.08
2A80-M16 CJ0513 16mm 400mm² £29.29
2A80-M20 CJ0634 20mm 400mm² £30.50
2A100-M12 CJ0553 12.0mm 500mm² £40.43
2A100-M14 14mm 500mm² £40.43
2A100-M16 CJ0517 16mm 500mm² £40.43
2A100-M20 CJ0726 20mm 500mm² £40.43
2A120-M12 CJ0812 12.0mm 630mm² £43.00
2A120-M14 14mm 630mm² £43.00
2A120-M16 CJ0602 16mm 630mm² £43.00
2A120-M20 20mm 630mm² £45.46
2A160-M16 CJ0569 16.0mm 800mm² £77.80
2A200-M20 JZ0903 20.0mm 1000mm² £100.80
