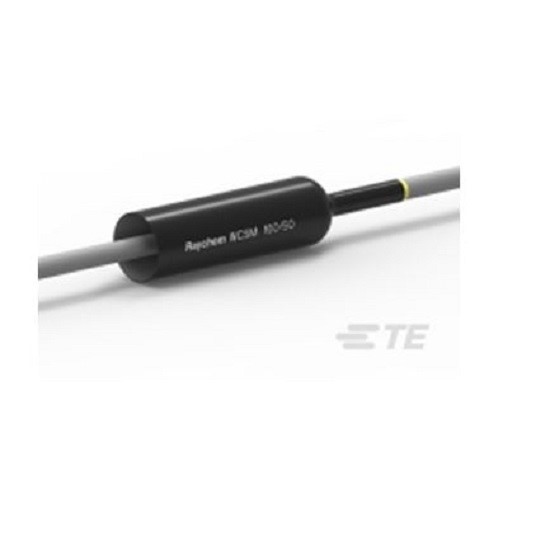

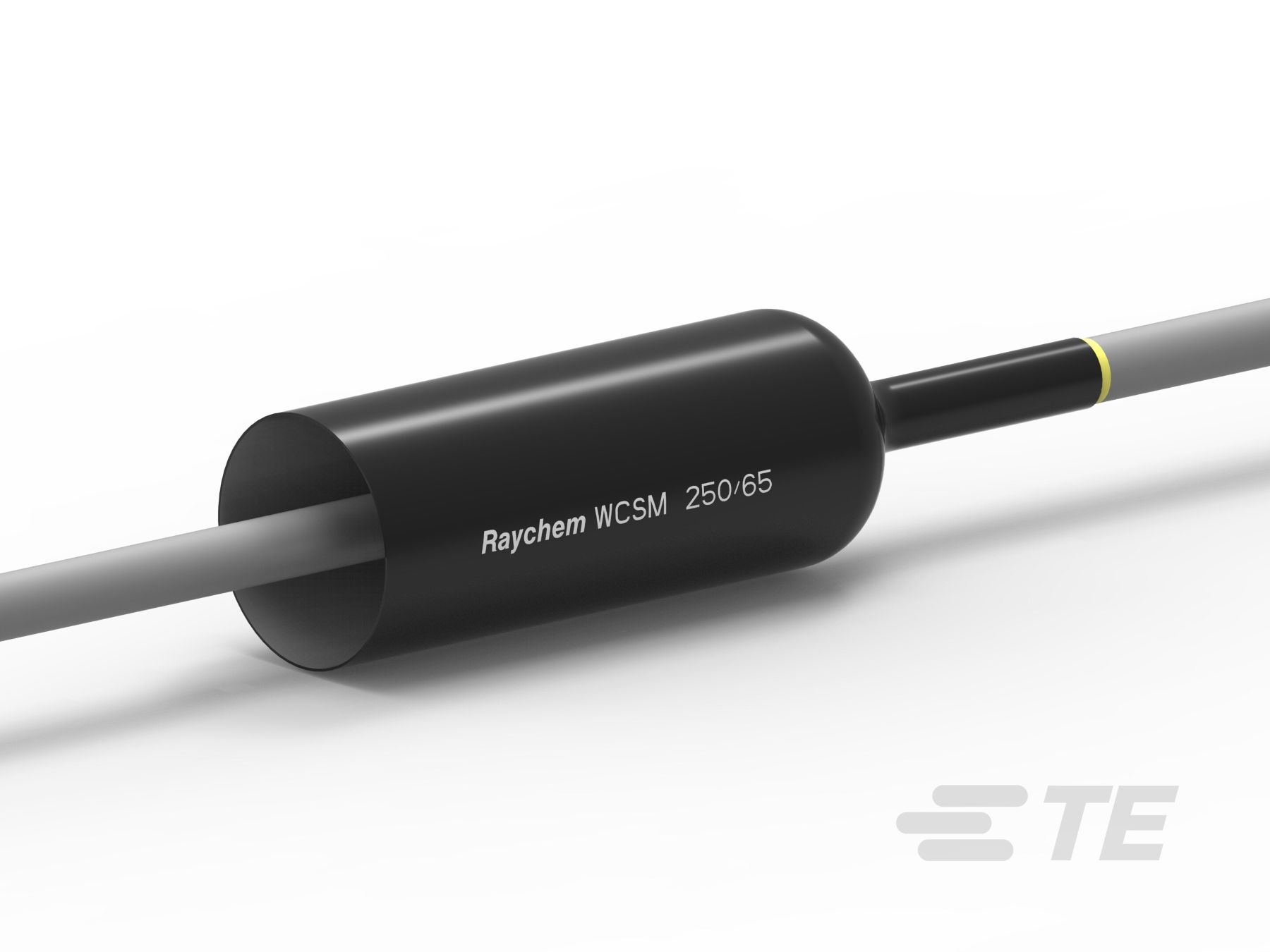

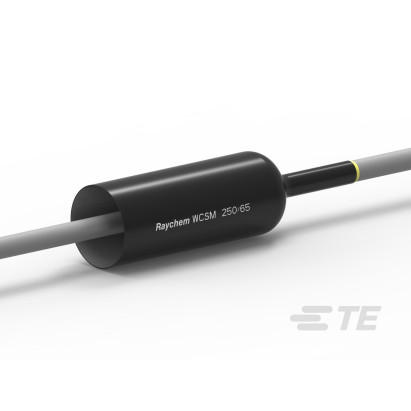

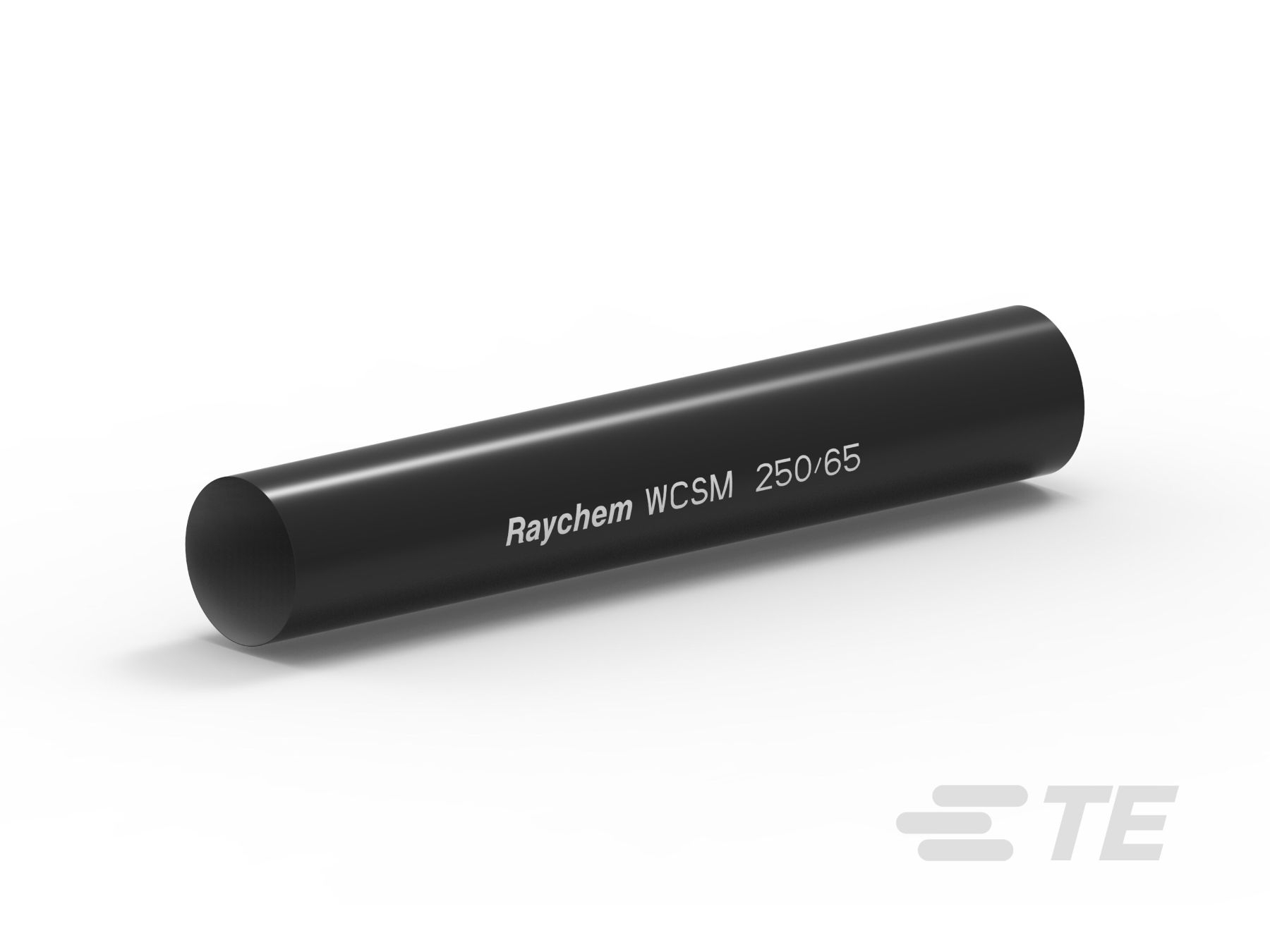

Tyco Heat Shrinkable thick wall insulating tubing (WCSM Series)

Raychem heat shrinkable heavy wall insulation and outer sealing sleeve WCSM is designed specifically for insulating and sealing power cables and accessories.

Within this tubing, the electrical and physical properties of the cable oversheath material are combined for easy installation and durability.

Upon heat application, the Raychem tubing WCSM recovers to a smaller diameter which, due to its high shrink ratio, fits tightly over a wide range of cable sizes.

• Cross linked polyolefin dual wall thick heat shrink tubing is designed for the cable jacketing, sealing and electrical insulation of LV power cables in underground applications
• The tubings inner co-extruded hot melt adhesive wall gives a dependable moisture seal over most irregular shapes
• Halogen free material
• Resistant to UV light
• Resistant to temperature changes and immune to oils and solvents
• Its mechanical strength enables immediate back filling of cable trenches after jointing
• Flexible rapid shrinkage with 3:1 shrink ratio

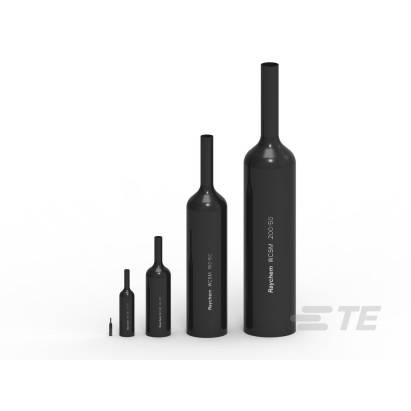

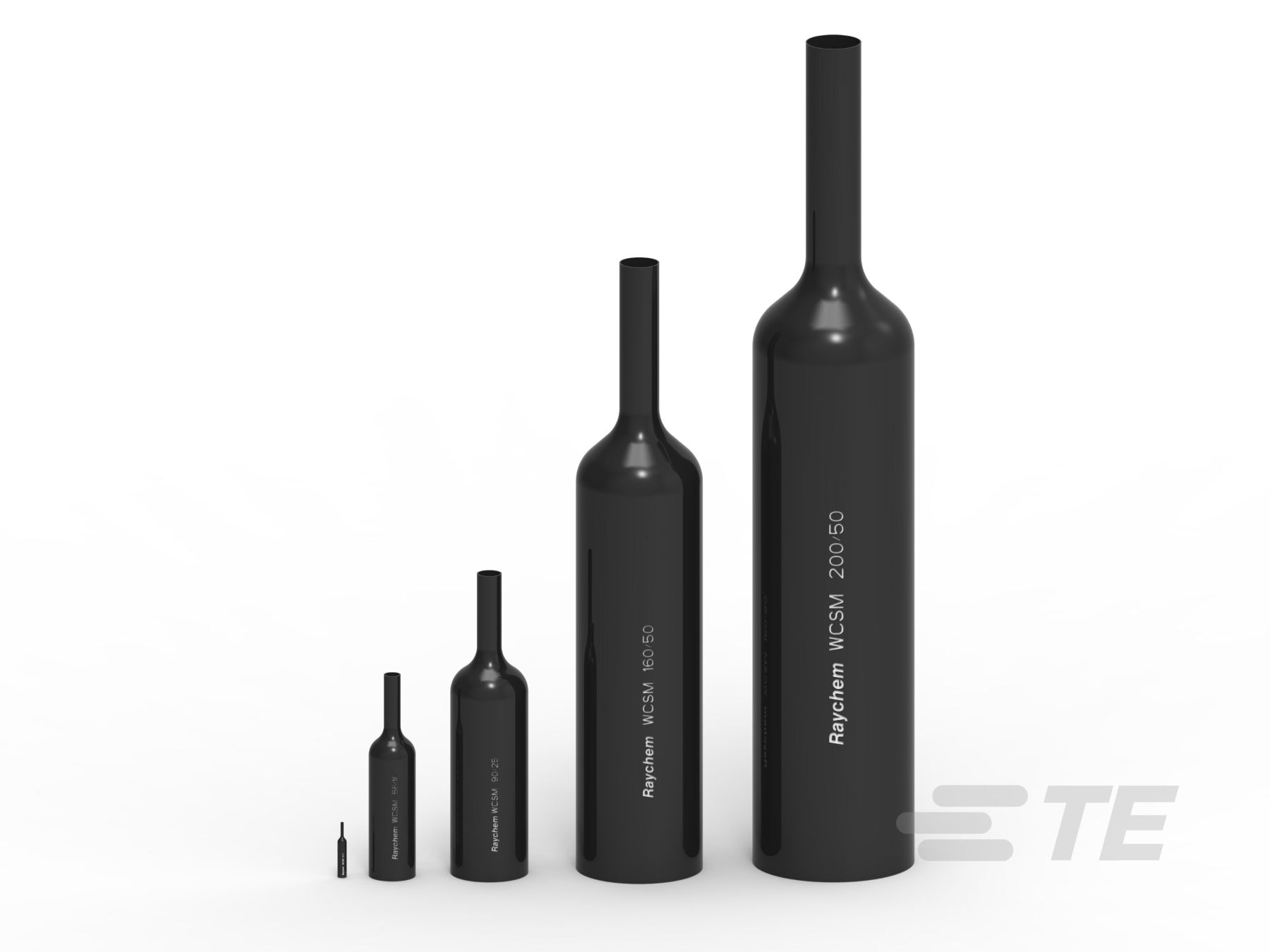

• Available in 1500mm length as standard
