Hex Head BZP Bolts (Set Screws)
from only £0.16 Ex VAT

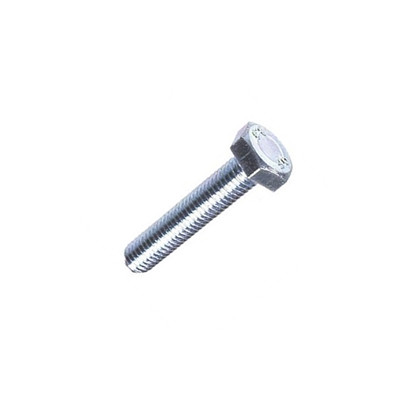

BZP Bolts, Hexagon Head - DIN933 (Fully Threaded Set Screws)
Suitable for almost all industry fastening applications
- Our most popular range of metric bolting products
- Also knows as set bolts or hex sets
- Fully threaded so no risk of running out of threads
- Made to DIN933 metric course standards from 8.8 grade high tensile steel
- Most commonly suppled in a BZP finish
These setscrews are not supplied with nuts or washers as standard so please order separately if needed
We have many sizes available on request, just a selection are shown below. Please contact your local Jointing Tech branch for details on our full range
DIN931 bolts are partially threaded and the standard thread length is usually as follows;-
- Up to 125mm long 2x Bolt Diameter plus 6mm
- 125mm to 200mm 2x Bolt Diameter plus 12mm
- Over 200mm 2x Bolt Diameter plus 25mm
There for example a M10x150 would have around 32mm of thread on it.
