LV Aluminium Lugs


from only £4.83 Ex VAT

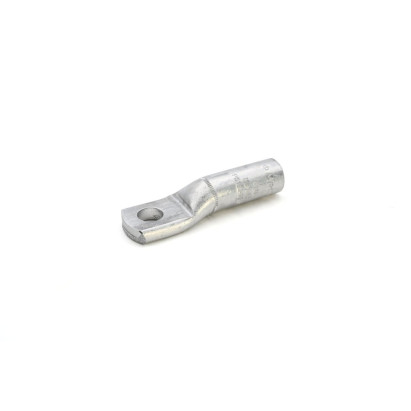

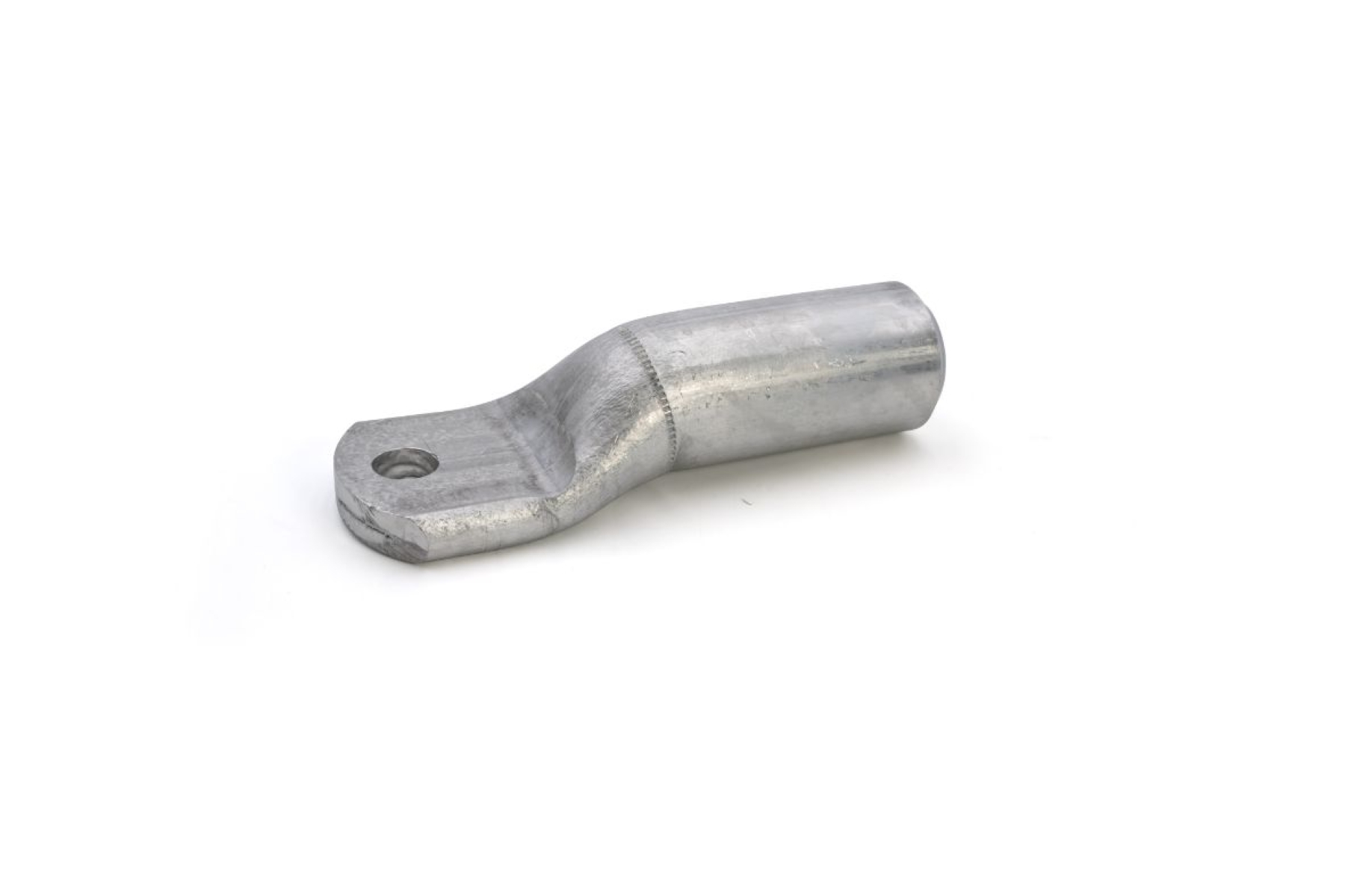

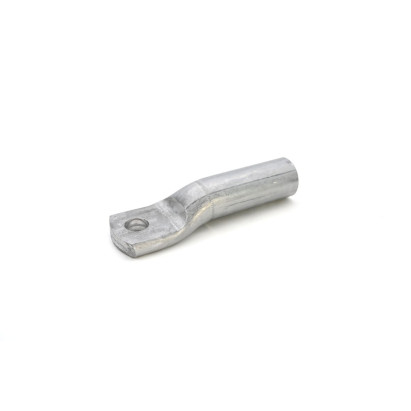

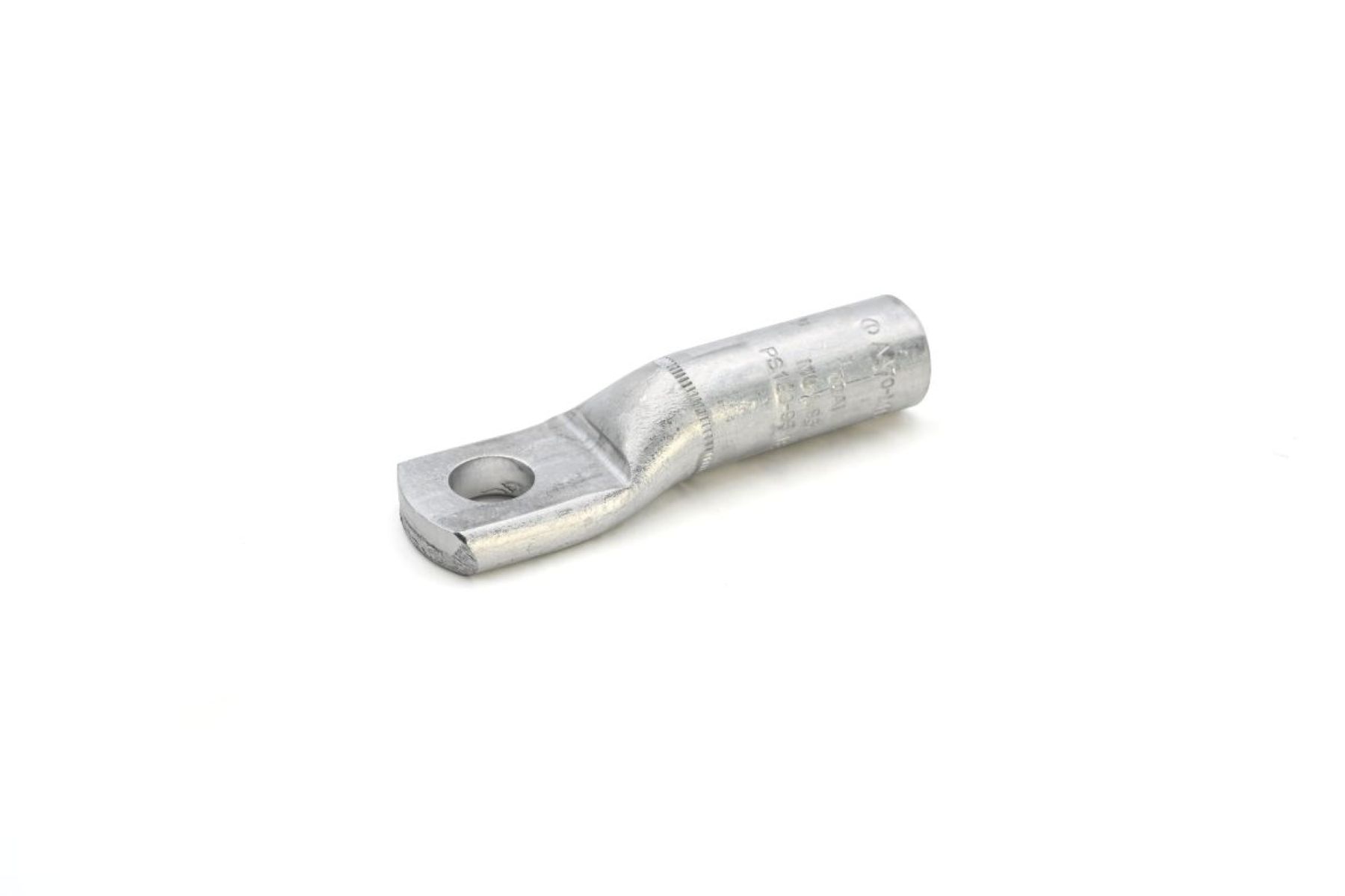

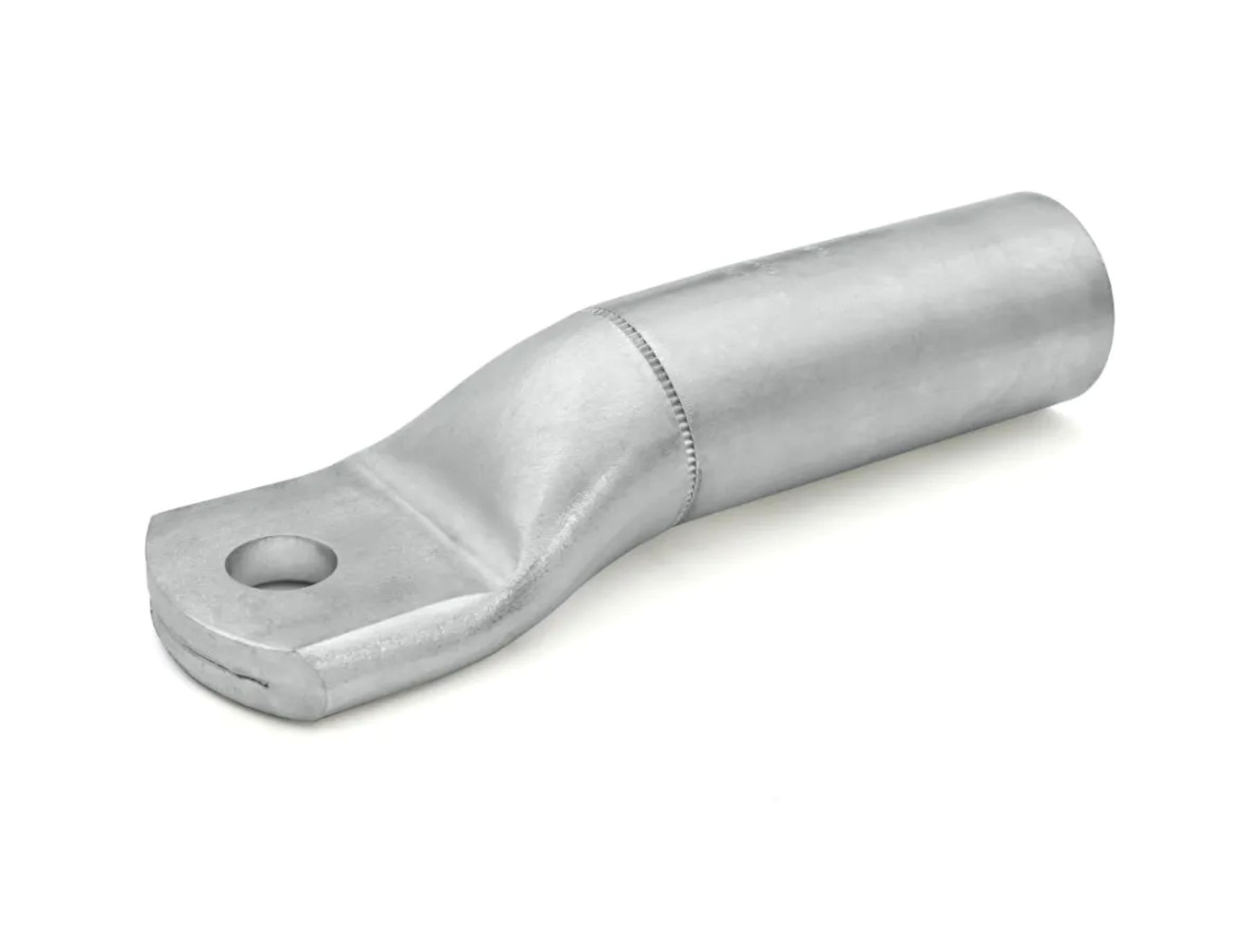

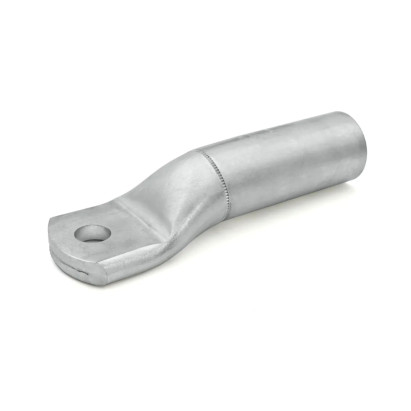

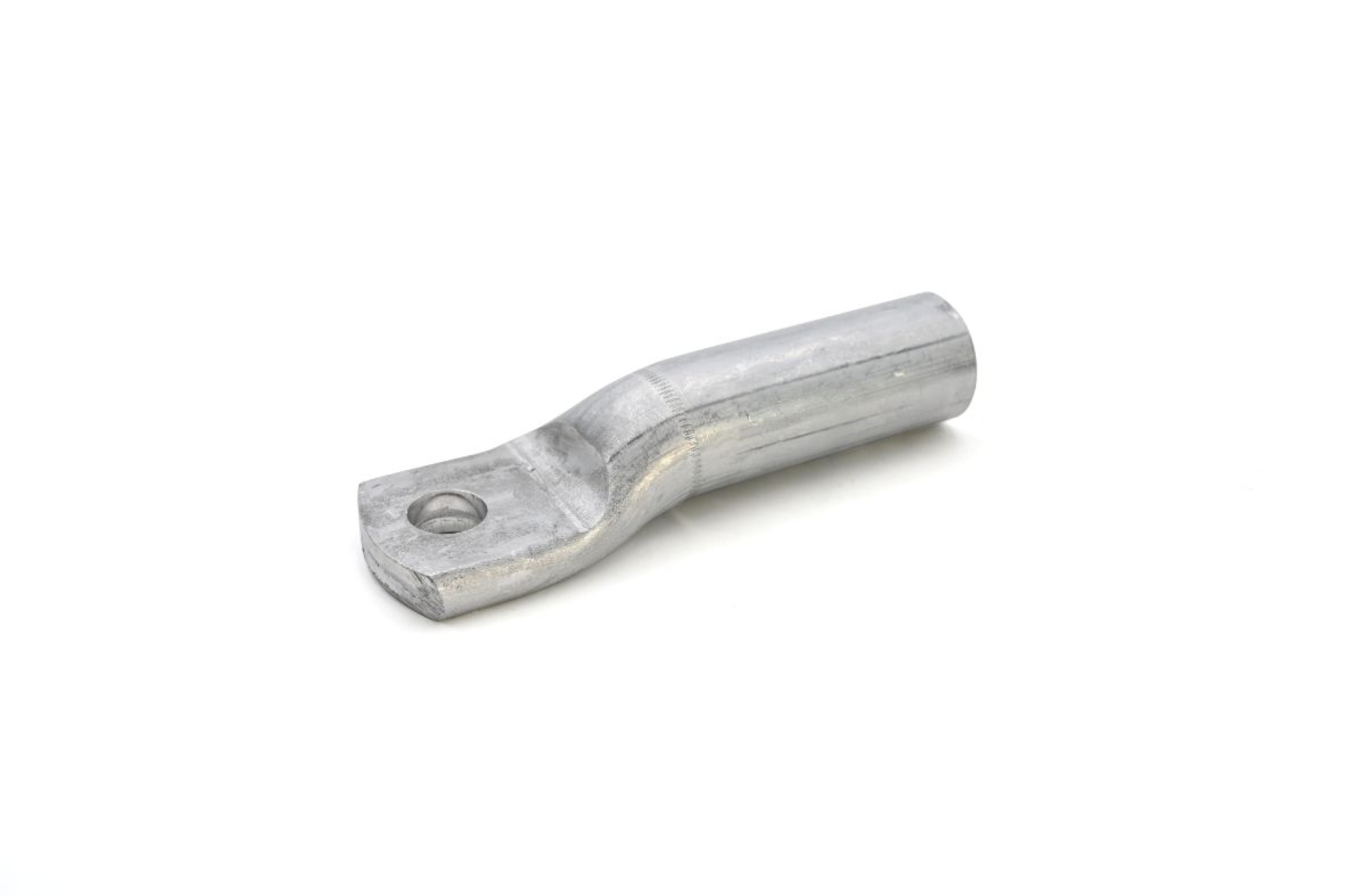

Cembre LV Aluminium Tube Crimp Lugs, AA-M Type for Aluminium Cables

Designed to be crimped onto a conductor to facilitate the termination of the cable via the lug hole

  • Aluminium lugs are made from 99.5% pure aluminium
  • Barrels are capped and filled with grease so as to avoid oxidation of the aluminium
  • Non-circular conductors may require pre-rounding prior to the introduction to the terminal
  • Increased barrel length and internal taper to ease the introduction of the conductor
Technical Data
  • 1000V Rated
  • Tested to BS EN 61238
Order
Part Number Wolseley Code Lug Hole Size Conductor Size Price Ex VAT Quantity
AA16-M8 CJ0782 M8 16mm £4.83
AA25-M8 CJ0826 M8 25mm £5.15
AA35-M8 SB71670 M8 35mm £5.20
AA35-M10 CJ0775 M10 35mm £5.20
AA50-M12 CJ0832 M12 50mm £5.41
AA50-M14 M14 50mm £5.78
AA70-M12 CJ0833 M12 70mm £5.51
AA70-M14 M14 70mm £5.51
AA95-M12 CJ0729 M12 95mm £5.72
AA95-M14 M14 95mm £5.72
AA120-M12 CJ0786 M12 120mm £6.51
AA120-M14 M14 120mm £6.77
AA150-M12 CJ0785 M12 150mm £6.93
AA150-M14 M14 150mm £7.14
AA185-M12 CJ0520 M12 185mm £10.24
AA185-M14 M14 185mm £10.24
AA240-M12 CJ0559 M12 240mm £10.50
AA240-M14 M14 240mm £14.18
AA300-34-M12 CJ0510 M12 300mm £12.92
