LV Aluminium Mechanical Lugs - TYCO

Show VAT

from only £9.50 Ex VAT£11.40 Inc VAT

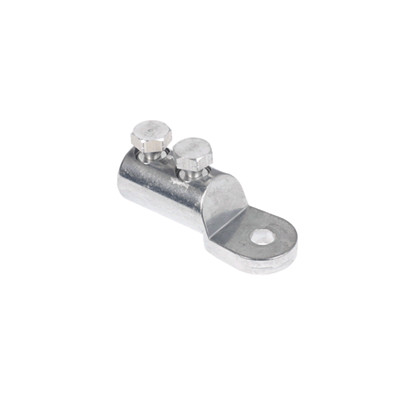

Tyco LV aluminium mechanical lugs for use on solid sectoral aluminium conductors (LVET Series)

These low voltage (LV) aluminium lugs are specifically designed for solid sector shaped aluminium conductors (either 120 or 90 degree angle) of three of four cables. Unlike fittings from pressed or forged tube, the lugs feature a blocked barrel which prevents water passing through the palm to the barrel

Designed to be connected onto a conductor to facilitate the termination of the cable without the need for crimping
Low torque shear head bolts
Solid moisture block between palm and barrel
Range taking

Technical Data

1000V Rated
Designed to meet BS 4579 Part 3 and Engineering Recommendation C79

Datasheets

TYCO_LV_ALUMINIUM_MECHANICAL_LUGS.pdf

Order

Part Number	Wolseley Code	BAH Part Number	Hole Size	Conductor Size	TE Part Number	Price Ex VATInc VAT
LVET12012(SECT)/AG2M12	CJ2542	BAH-024020028	M12	95-120mm²	016338-000	£9.50£11.40
LVET12012(SECT)/AG3M12	CJ2542	BAH-024020029	M12	70-95mm²	278176-000	£9.50£11.40
LVET12016(SECT)/AG2M12	CC1541	BAH-024020034	M16	95-120mm²	335152-000	£9.50£11.40
LVET18512(SECT)/AG1M18	CC1542	BAH-024020039	M12	150-185mm²	136892-000	£12.28£14.74
LVET18516(SECT)/AG1M18	CC1543	BAH-024020044	M16	150-185mm²	204094-000	£11.29£13.55
LVET30012/AG1M18	CC1544	BAH-024020046	M12	240-300mm²	723430-000	£12.60£15.12
LVET30016/AG1M18	CJ2543	BAH-024020048	M16	240-300mm²	390474-000	£12.60£15.12
