LV Copper Lugs

Show VAT

from only £0.16 Ex VAT£0.19 Inc VAT

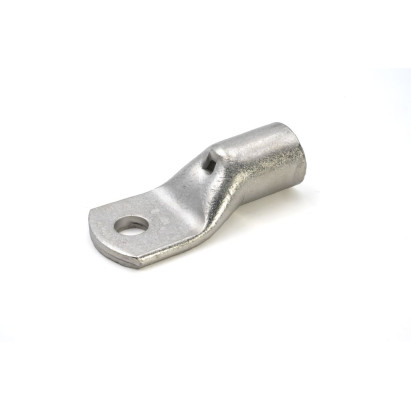

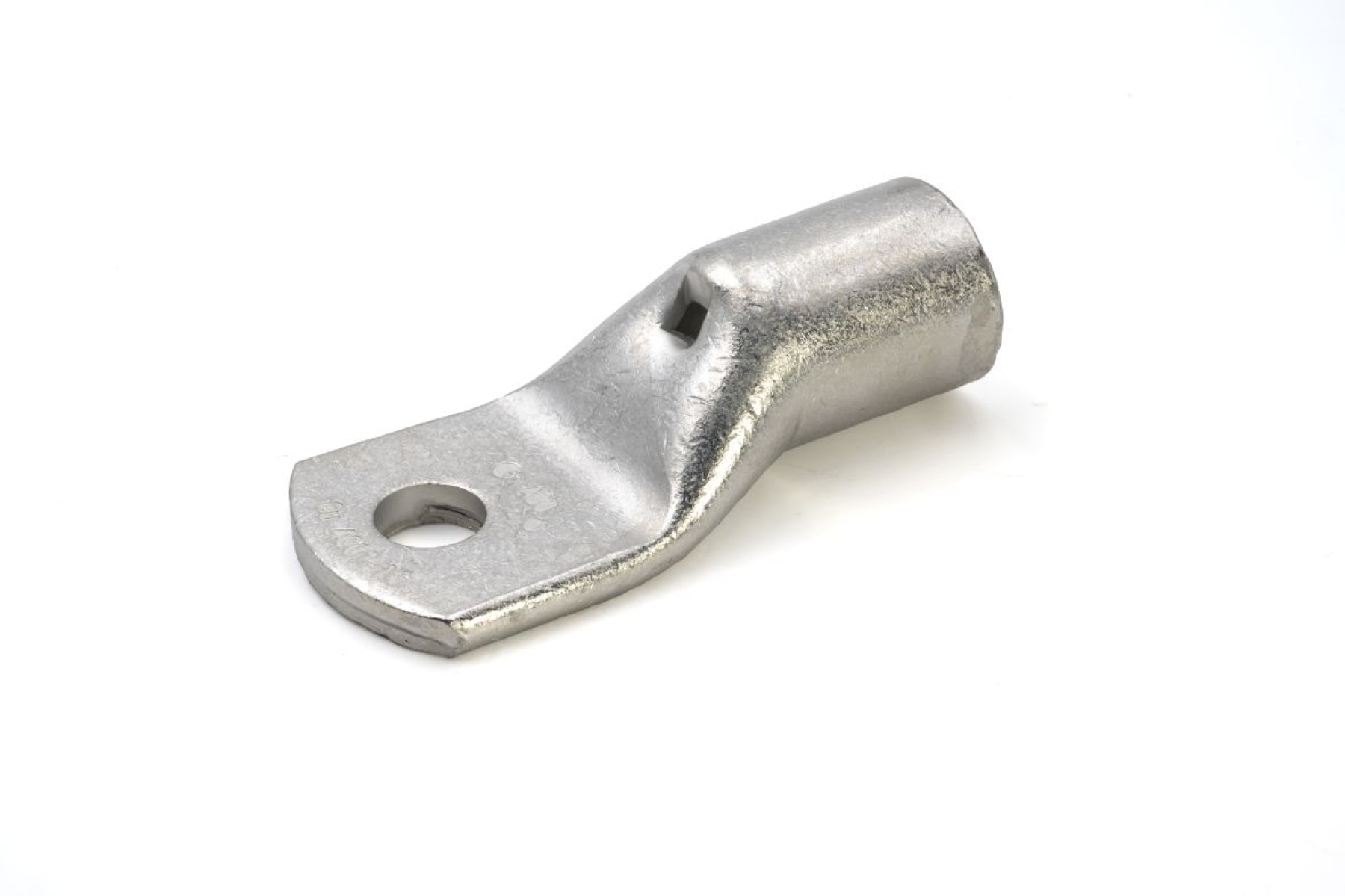

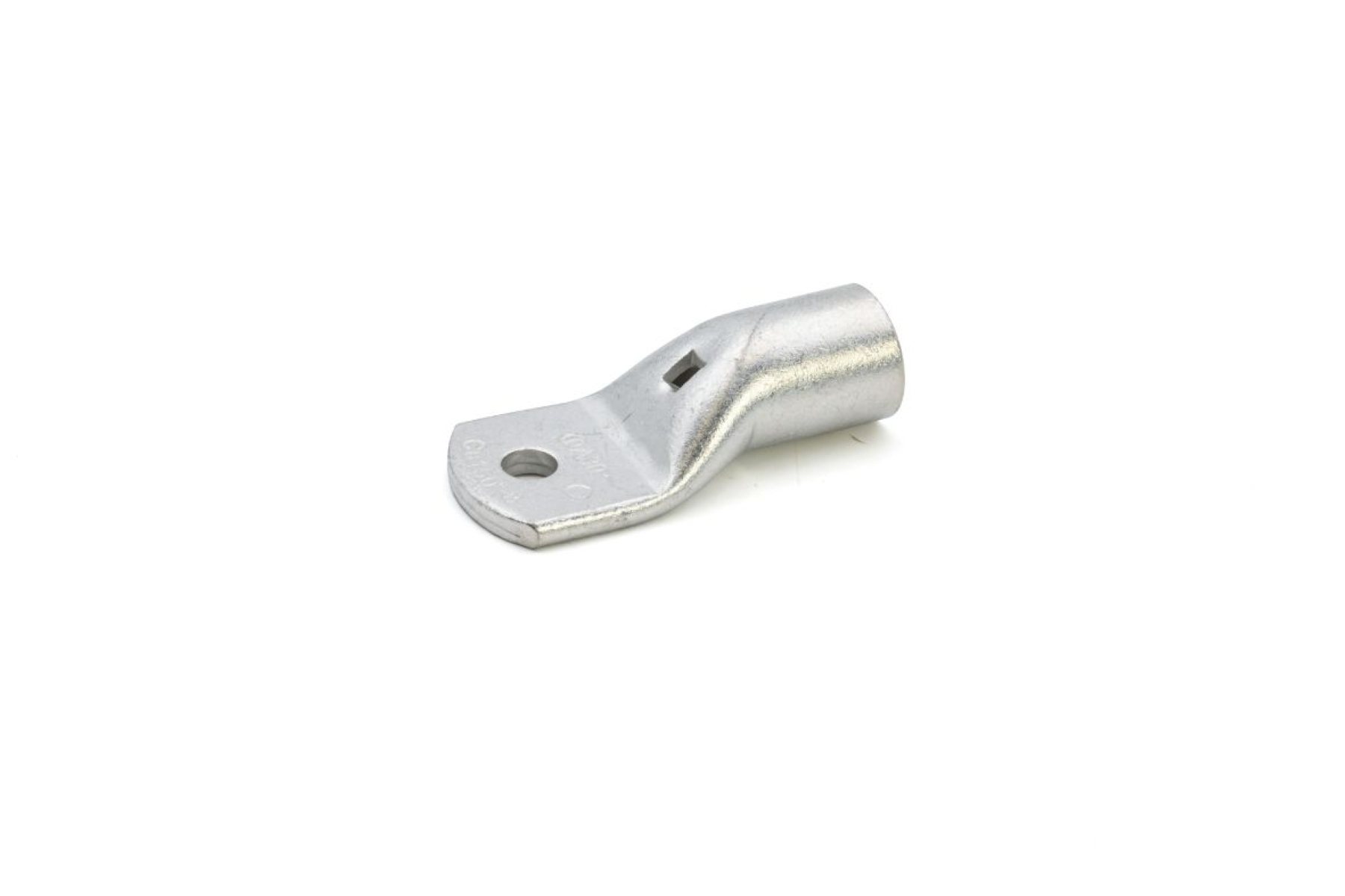

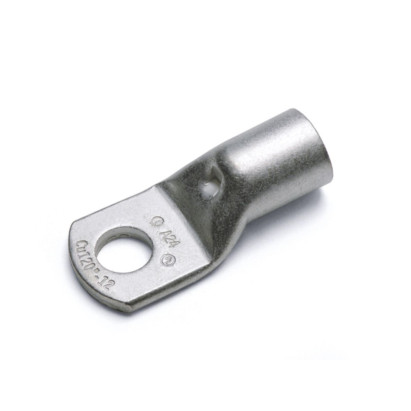

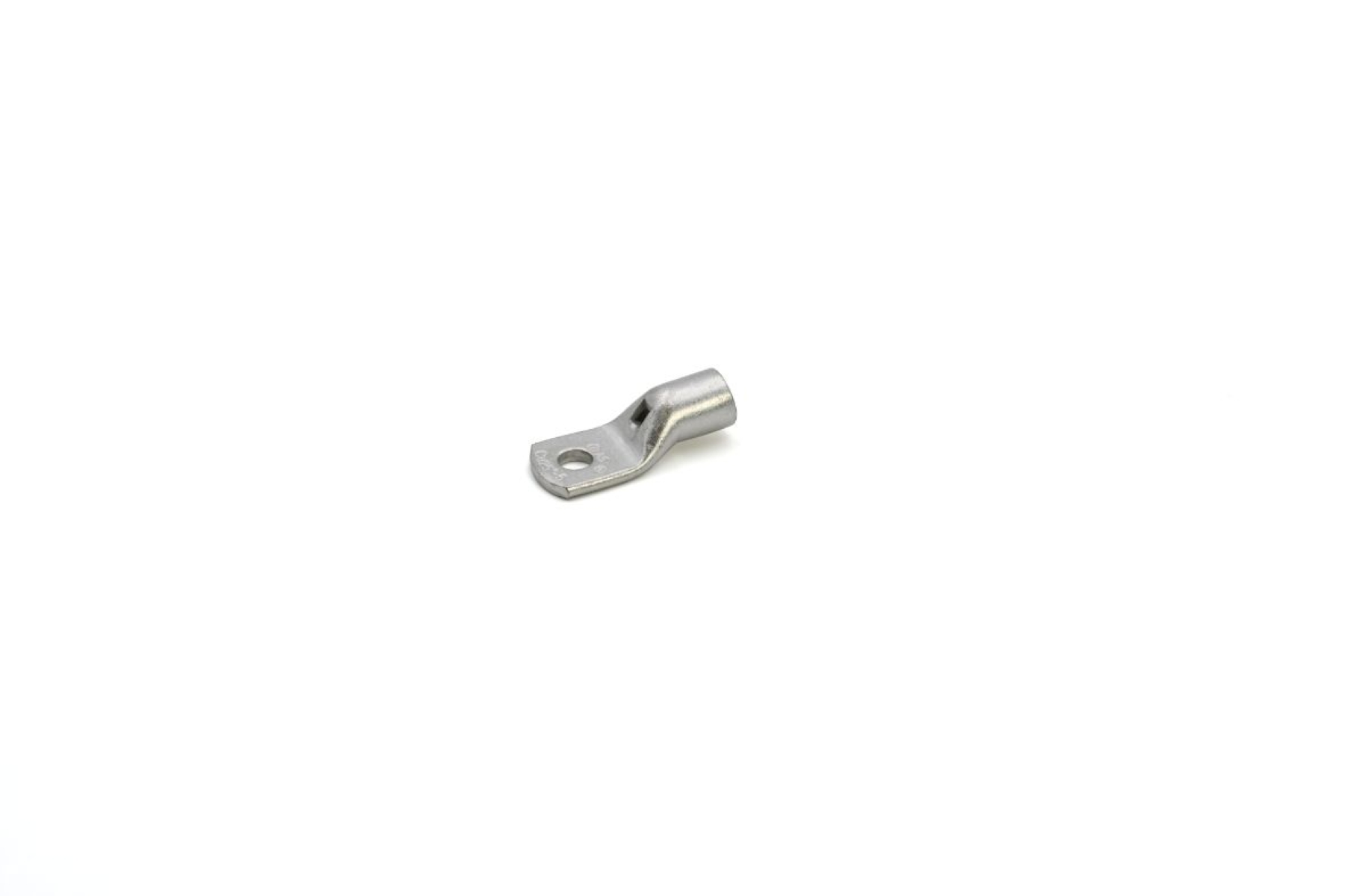

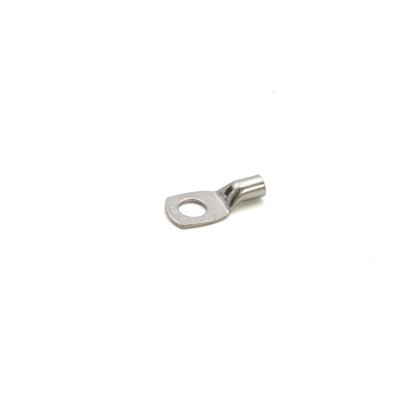

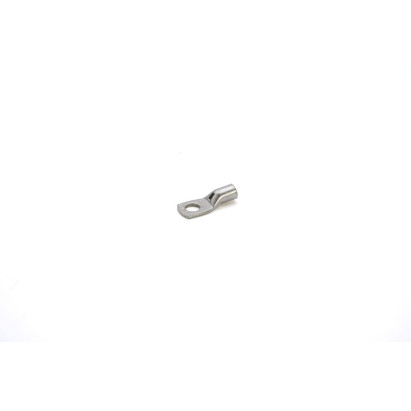

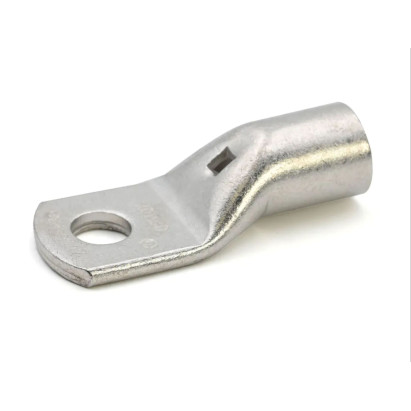

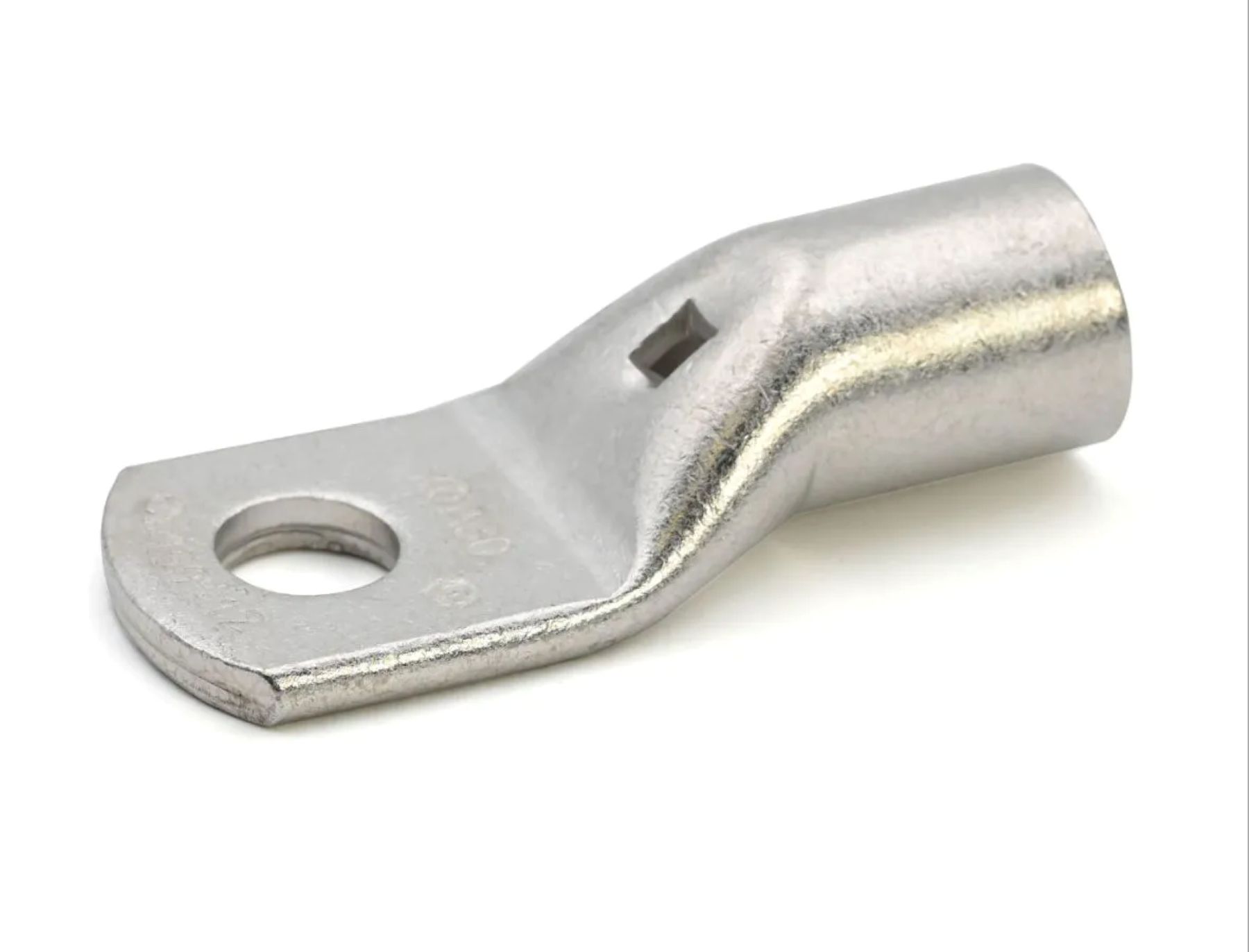

Cembre 1000v Rated LV copper tube crimping lugs

A-M series lugs are manufactured from electrolytic copper tube Cu-OF CW0008A and conform to UNI EN 13600
Lug dimensions are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out
Cembre lugs are annealed to guarantee optimum ductility which is an absolute necessity for connectors which will have to withstand sever deformation arising when compressed and any bending of the palm during installation
In applications subject to vibration, lugs must provide a reliable connection and annealing plays a vital role in avoiding cracking or breaks between the barrel and palm
The presence of an inspection hole allows for the full insertion of the conductor
The barrel length has been designed to allow easy and accurate positioning of the dies during crimping operation
Lugs are electrolytically tin plated to avoid oxidation

Technical Data

1000V Rated
Manufactured from electrolytic copper tube to EN 12735
Tested to BS EN 61238
UL Listed (up to 300mm)
CE Approved
DEF Standard 59-71 Approved

Datasheets

Copper Tube Lugs A-M Data Sheet

Order

Part number	Wolseley Code	Palm Hole Size	Conductor Size	Price Ex VATInc VAT
A03-M3.5	CJ0810	3.5mm	1.5mm2	£0.16£0.19
A03-M4	CJ0879	4mm	1.5mm2	£0.16£0.19
A03-M5	CJ0880	5mm	1.5mm2	£0.16£0.19
A03-M6	CJ0851	6mm	1.5mm2	£0.16£0.19
A06-M4	CJ0863	4mm	2.5mm2	£0.17£0.20
A06-M5	CJ0864	5mm	2.5mm2	£0.17£0.20
A06-M6	CJ0712	6mm	2.5mm2	£0.17£0.20
A06-M8	CJ0844	8mm	2.5mm2	£0.24£0.29
A1-M3.5	CJ0865	3.5mm	4-6mm2	£0.36£0.43
A1-M4	CJ0759	4mm	4-6mm2	£0.28£0.34
A1-M5	CJ0774	5mm	4-6mm2	£0.28£0.34
A1-M6	CJ0290	6mm	4-6mm2	£0.28£0.34
A1-M8	CJ0592	8mm	4-6mm2	£0.30£0.36
A1-M10	CJ0676	10mm	4-6mm	£0.34£0.41
A2-M4	CJ0704	4mm	10mm2	£0.32£0.38
A2-M5	CJ0733	5mm	10mm2	£0.32£0.38

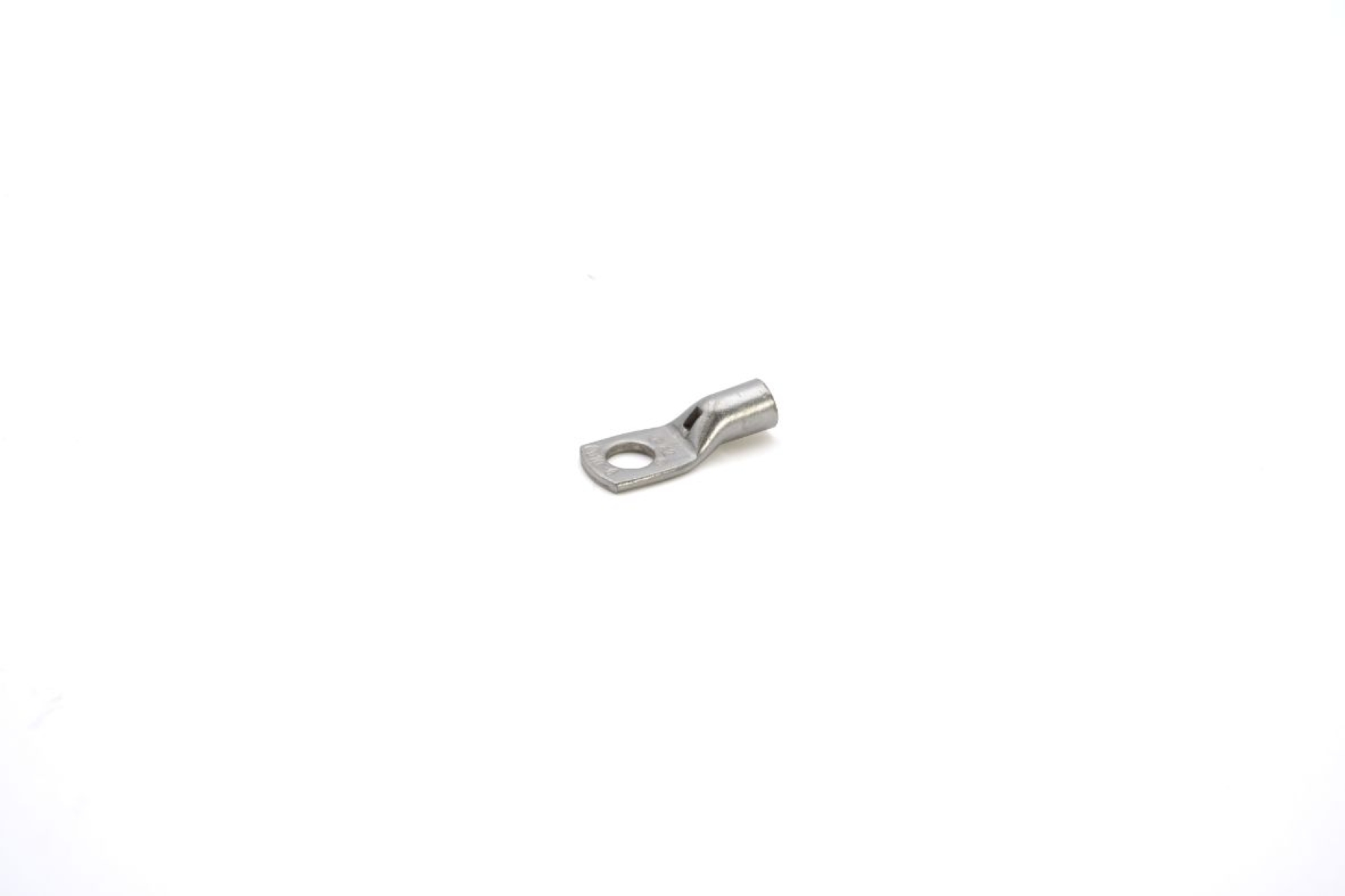

A2-M6	CJ0308	6mm	10mm2	£0.32£0.38
A2-M8	CJ0303	8mm	10mm2	£0.32£0.38
A2-M10	CJ0299	10mm	10mm2	£0.32£0.38
A2-M12	CJ0630	12mm	10mm2	£0.38£0.46
A3-M4	CJ0856	4mm	16mm2	£0.34£0.41
A3-M5	CJ0723	5mm	16mm2	£0.34£0.41
A3-M6	CJ0278	6mm	16mm2	£0.34£0.41
A3-M8	CJ0269	8mm	16mm2	£0.35£0.42
A3-M10	CJ0264	10mm	16mm2	£0.37£0.44
A3-M12	CJ0611	12mm	16mm2	£0.44£0.53
A3-M16	CJ0643	16mm	16mm2	£5.41£6.49
A5-M5	CJ0716	5mm	25mm2	£0.55£0.66
A5-M6	CJ0300	6mm	25mm2	£0.46£0.55
A5-M8	CJ0291	8mm	25mm2	£0.47£0.56
A5-M10	CJ0285	10mm	25mm2	£0.42£0.50
A5-M12	CJ0615	12mm	25mm2	£0.49£0.59
A5-M16	CJ0607	16mm	25mm2	£4.73£5.68
A7-M6	CJ0688	6mm	35mm2	£0.74£0.89
A7-M8	CJ0283	8mm	35mm2	£0.77£0.92
A7-M10	CJ0270	10mm	35mm2	£0.79£0.95
A7-M12	CJ0284	12mm	35mm2	£0.84£1.01
A7-M14	CJ0638	14mm	35mm2	£2.26£2.71
A7-M16	CJ0646	16mm	35mm2	£2.52£3.02
A10-M6	CJ0687	6mm	50mm2	£1.06£1.27
A10-M8	CJ0274	8mm	50mm2	£1.06£1.27
A10-M10	CJ0268	10mm	50mm2	£1.06£1.27
A10-M12	CJ0271	12mm	50mm2	£1.06£1.27
A10-M14	CJ0710	14mm	50mm2	£1.06£1.27
A10-M16	CJ0301	16mm	50mm2	£1.06£1.27
A14-M6	CJ0599	6mm	70mm2	£1.47£1.76
A14-M8	CJ0265	8mm	70mm2	£1.47£1.76
A14-M10	CJ0250	10mm	70mm2	£1.47£1.76
A14-M12	CJ0261	12mm	70mm2	£1.52£1.82
A14-M14	CJ0675	14mm	70mm2	£1.60£1.92
A14-M16	CJ0280	16mm	70mm2	£1.52£1.82
A14-M20	CJ0670	20mm	70mm2	£3.20£3.84
A19-M6	CJ0662	6mm	95mm2	£2.21£2.65
A19-M8	CJ0266	8mm	95mm2	£2.10£2.52
A19-M10	CJ0258	10mm	95mm2	£2.10£2.52
A19-M12	CJ0256	12mm	95mm2	£2.10£2.52
A19-M14	CJ0633	14mm	95mm2	£2.21£2.65
A19-M16	CJ0267	16mm	95mm2	£2.31£2.77
A19-M20	CJ0653	20mm	95mm2	£2.42£2.90

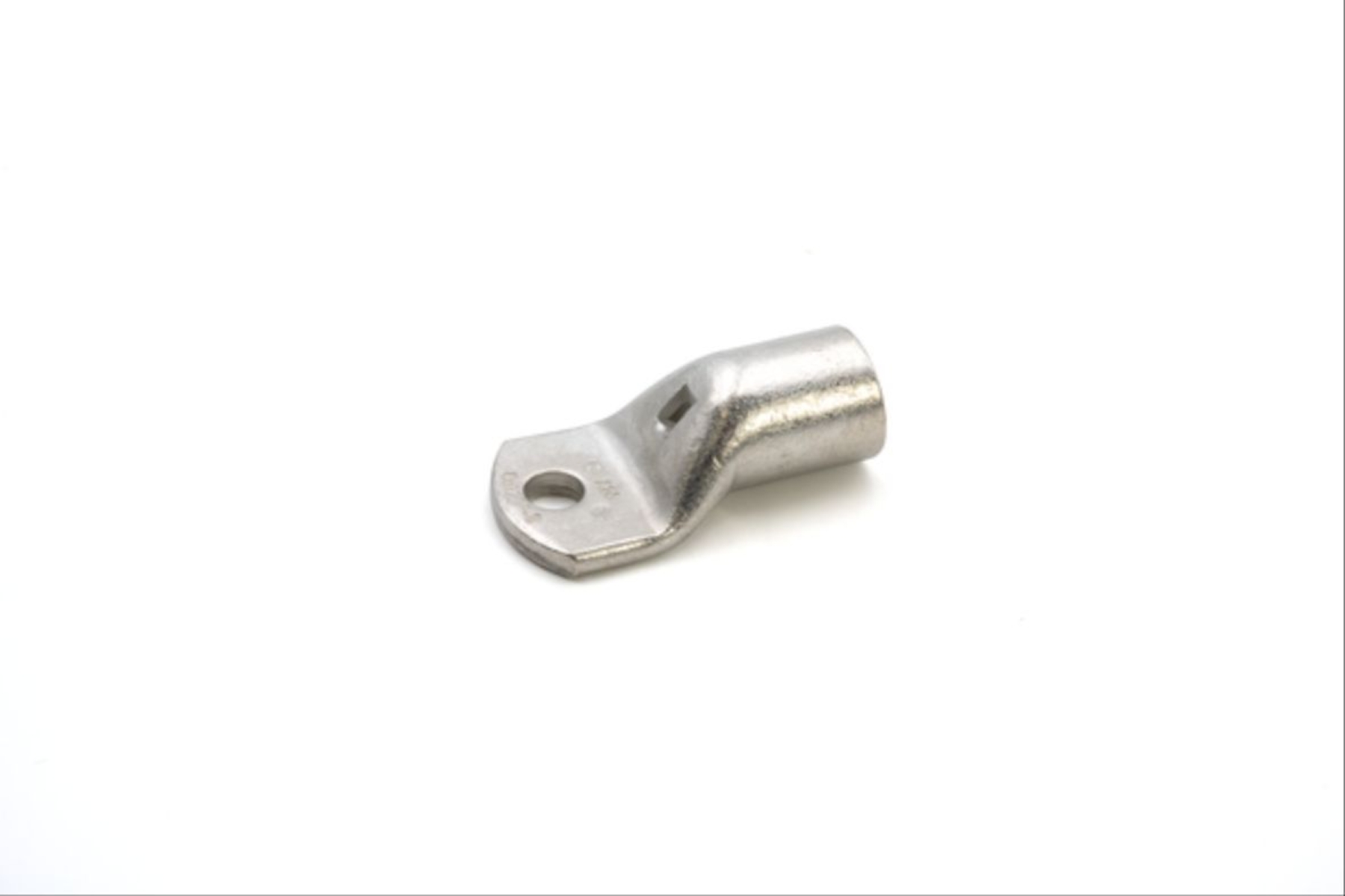

A24-M8	CJ0555	8mm	120mm2	£2.68£3.22
A24-M10	CJ0257	10mm	120mm2	£2.63£3.16
A24-M12	CJ0259	12mm	120mm2	£2.63£3.16
A24-M14	CJ0636	14mm	120mm2	£2.94£3.53
A24-M16	CJ0568	16mm	120mm2	£2.94£3.53
A24-M20	CJ0608	20mm	120mm2	£3.52£4.22

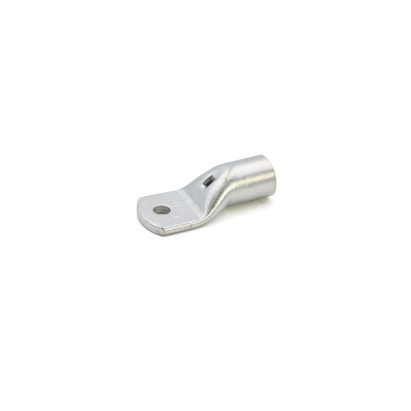

A30-M8	CJ0578	8mm	150mm2	£4.04£4.85
A30-M10	CJ0260	10mm	150mm2	£4.04£4.85
A30-M12	CJ0255	12mm	150mm2	£3.99£4.79
A30-M14	CJ0293	14mm	150mm2	£3.99£4.79
A30-M16	CJ0272	16mm	150mm2	£4.15£4.98
A30-M20	CJ0674	20mm	150mm2	£4.62£5.54
A37-M8	CJ0533	8mm	185mm2	£5.46£6.55
A37-M10	CJ0254	10mm	185mm2	£5.46£6.55
A37-M12	CJ0253	12mm	185mm2	£5.46£6.55
A37-M14	CJ0289	14mm	185mm2	£5.57£6.68
A37-M16	CJ0263	16mm	185mm2	£5.93£7.12
A37-M20	CJ0593	20mm	185mm2	£6.20£7.44
A48-M8	CJ0648	8mm	240mm2	£8.24£9.89
A48-M10	CJ0509	10mm	240mm2	£8.24£9.89
A48-M12	CJ0242	12mm	240mm2	£8.24£9.89
A48-M14	CJ0288	14mm	240mm2	£8.40£10.08
A48-M16	CJ0526	16mm	240mm2	£8.66£10.39
A48-M20	CJ0756	20mm	240mm2	£8.66£10.39
A60-M10	CJ0247	10mm	300mm2	£11.45£13.74
A60-M12	CJ0243	12mm	300mm2	£11.45£13.74
A60-M14	CJ0309	14mm	300mm2	£11.45£13.74
A60-M16	CJ0252	16mm	300mm2	£11.45£13.74
A60-M20	CJ0814	20mm	300mm2	£13.39£16.07
A80-M10	CJ0523	10mm	400mm2	£18.95£22.74
A80-M12	CJ0240	12mm	400mm2	£18.59£22.31
A80-M14	CJ0597	14mm	400mm2	£19.74£23.69
A80-M16	CJ0248	16mm	400mm2	£18.48£22.18
A80-M20	CJ0739	20mm	400mm2	£19.06£22.87
A100-M12	CJ0246	12mm	500mm2	£24.68£29.62
A100-M14	CJ0673	14mm	500mm2	£25.94£31.13
A100-M16	CJ0244	20mm	500mm2	£25.94£31.13
A100-M20	CJ0282	20mm	500mm2	£25.94£31.13
A120-M10	CJ0530	10mm	630mm2	£29.61£35.53
A120-M12	CJ0506	12mm	630mm2	£29.61£35.53
A120-M16	CJ0238	16mm	630mm2	£29.61£35.53
A120-M20	CJ0295	20mm	630mm2	£29.61£35.53
A160-M16	CJ0580	16mm	800mm2	£57.07£68.48
A160-M20	CJ0624	20mm	800mm2	£57.07£68.48
A200-M16	JZ0878	16mm	1000mm2	£70.35£84.42
A200-M20		20mm	1000mm2	£70.35£84.42
