LV Copper Pin Terminal

Show VAT

from only £1.14 Ex VAT£1.37 Inc VAT

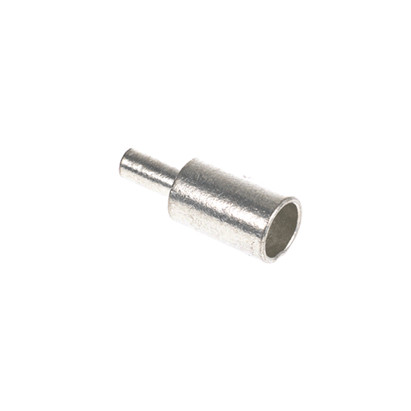

LV copper reducing pin terminal

Designed to be crimped to reduce Conductor size for termination into contact blocks
Tin Plated Copper

Technical Data

1000V Rated
Tested to BS EN 12449

Order

Part Number	Wolseley Code	Pin Diameter	Conductor Size	Price Ex VATInc VAT	Quantity
L10PIN	JZ1878	3.8mm	10mm²	£1.14£1.37
L16PIN	CJ4105	3.7mm	16mm²	£1.61£1.93
L25PIN	CJ4104	5mm	25mm²	£2.23£2.68
L35PIN	CJ4110	5mm	35mm²	£2.42£2.90
L50PIN	CJ4107	7.5mm	50mm²	£2.63£3.16
L70PIN	CJ4109	8mm	70mm²	£2.91£3.49
L95PIN	CJ4111	8mm	95mm²	£3.13£3.76
L120PIN	JZ1870	10mm	120mm²	£4.32£5.18
L150PIN	CJ4112	10mm	150mm²	£5.68£6.82
L185PIN	CJ4106	14mm	185mm²	£6.91£8.29
L240PIN	CJ4108	14mm	240mm²	£10.35£12.42
L300PIN	JZ0378	16mm	300mm²	£10.73£12.88
L400PIN		16mm	400mm²	£17.96£21.55
