  • LV Sheet Terminals

LV Sheet Terminals

from only £0.74

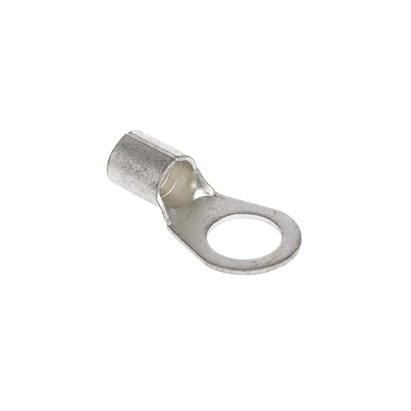

LV Medium Duty Copper Sheet Terminals

  • Designed to be crimped onto a conductor to facilitate the termination of small diameter cables via large lug holes
  • Copper lugs are electrolytically tin plated to avoid prevent corrosion, making them suitable for temperatures up to 150C
  • Each terminal has a sight hole for visual inspection of the conductor inserted
Technical Data
  • 1000V Rated
  • Manufactured from electrolytic copper tube to EN 12735
  • Tested to BS EN 61238
Order
Part Number Hole Size Conductor Size Price Quantity
ST10-6 6mm 10mm² £0.74
ST10-16 16mm 10mm² £1.42
ST10-20 20mm 10mm² £1.42
ST16-16 16mm 16mm² £1.47
ST16-20 20mm 16mm² £1.47
ST25-16 16mm 25mm² £1.58
ST25-20 20mm 25mm² £1.58
ST35-16 16mm 35mm² £1.68
ST35-20 20mm 35mm² £1.68
ST50-16 16mm 50mm² £1.79
ST50-20 20mm 50mm² £1.79
ST70-16 16mm 70mm² £1.94
ST70-20 20mm 70mm² £1.94
