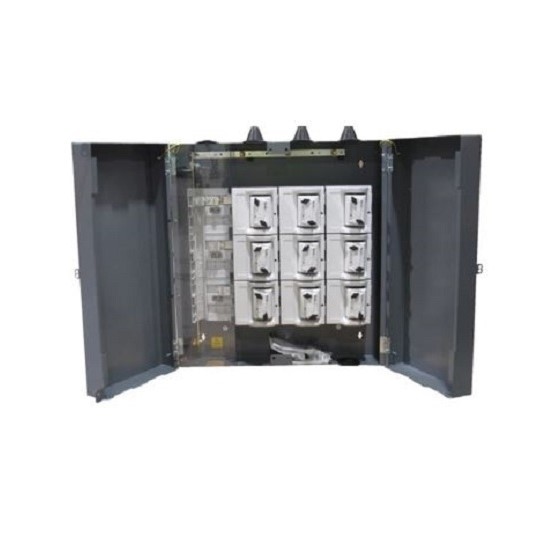

Lucy Electric Sub Mains Distribution Board (SMDB)

Show VAT

from only £2,146.02 Ex VAT£2,575.22 Inc VAT

Direct connection to 2,3,4,5 and 6 way
630A rated
Indoor surface mounting sub mains distribution boards
Accept a single incoming 3 phase supply up to 630A having 2, 3, 4, 5 or 6 triple pole outgoing BS 88 J type fuse ways with 92mm centres.
Configured for direct (single cable) connection of incomer to main busbar.
Pre galvanized mild steel cabinets finished in a durable polyester powder coating
Main incomer installed on left hand side for bottom cable entry. Units can also be installed rotated through
180 degrees to give top or bottom right hand cable entry
Standard product configured for 3 core, (4 core SNE kit available. See selection chart below)
Quick release double doors with separate Earth bonding leads fitted
Padlock facility on door
180 degree door opening
Four point fixing with stand-offs for uneven surfaces

This equipment must be installed by suitably qualified personnel according to applicable Local / National Wiring regulations currently in force.

Datasheets

Order

Part Number	Wolseley Code	Description	Price Ex VATInc VAT
THM0086654	CC5234	2 WAY Board (1 J Type Fused Incomer & 2 J Type Fused Outgoing ways c/w UT4F single bolt connectors)	£2,146.02£2,575.22
THM0024107		3 WAY Board (1 Directly Connected Incomer & 3 J Type Fused Outgoing ways c/w UT4F single bolt connectors)	£2,897.57£3,477.08
THM0024590	CC2314	3 WAY Board 3 Way Board comprising of 1 Directly Connected Incomer & 3 J Type Fused Outgoing ways C/W UT4F Single Bolt Connectors	£3,395.48£4,074.58
THM0056319	CC2867	3 Way Board comprising of 1 J Type Fused Incomer & 3 J Type Fused Outgoing ways C/W UT4F Single Bolt Connectors	£3,054.32£3,665.18
