Lucy SNE Cut Out Assembly
from only £22.52 Ex VAT

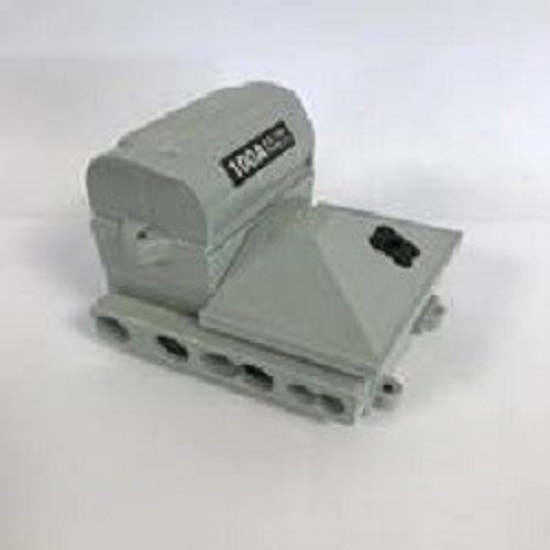

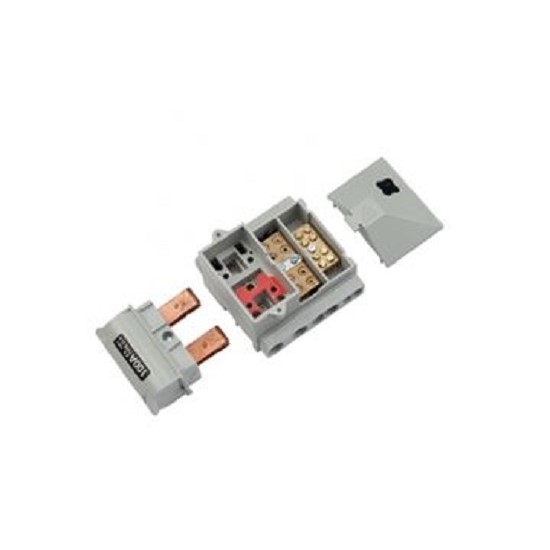

Lucy House Service Cut Out – SNE Type
Devices accepting BS 1361 cylindrical cartridge fuses having combined Neutral and Earth blocks generally fitted at the origin of the installation and interfacing directly with the meter ports to prevent unauthorized tampering.
- Accepts Side Entry earth cable. Also accepts Top or Bottom earth cable subject to cut-out
- Single Pole Separate Neutral and Earth (SNE) 60a/80a & 100a rated
- Pre-cut Phase/Neutral meter links supplied
- Two incoming and outgoing Phase and Neutral terminations which accept up to 35mm2 conductors in either copper or aluminium, stranded or solid
- Silver plated Phase terminal contact block
- Serrated bores on Phase/Neutral terminal contact blocks with two M8 hexagon drive screws per conductor
- Earth / Timer connections on N/E block accept up to 25mm2 conductors
- Safety interlocked mouldings. N/E cover moulding cannot be removed until fuse carrier has been withdrawn
- Sealing wire facility
- Blanking plugs for unused cable entries provided
- Accessories available include cable cover, cable chamber and busbar extensions
Product Conformity
• Conforms to BS 7657:2010
• Accepts fuse links in accordance with BS 1361:1991
Construction
• Body, base and cover: Glass reinforced polyester DMC in RAL 7035 colour
• Terminal blocks: Brass (silver plated on Phase)
