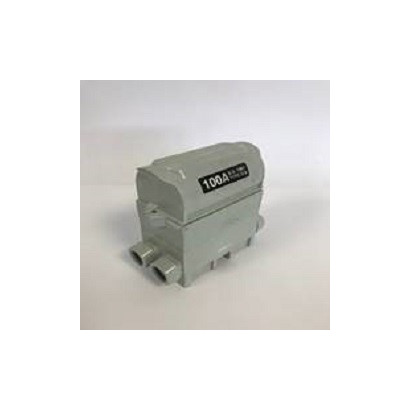

Lucy House Service Cut Out

Devices accepting BS 1361 cylindrical cartridge fuses generally fitted at the origin of the installation.

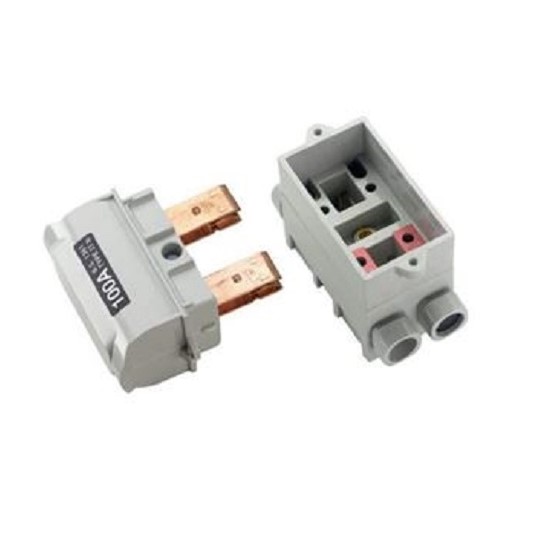

Single Pole: 60 / 80A rated, 100A rated

• Two incoming and outgoing Phase terminations which accept up to 35mm2 conductors in either copper or aluminium, stranded or solid
• Silver plated Phase terminal contact block
• Serrated bores on Phase terminal contact blocks with two M8 hexagon drive pinching screws per conductor
• Sealing wire facility
• Blanking plugs for unused cable entries provided
