MSDB Metal 7 Way
from only £594.34 Ex VAT

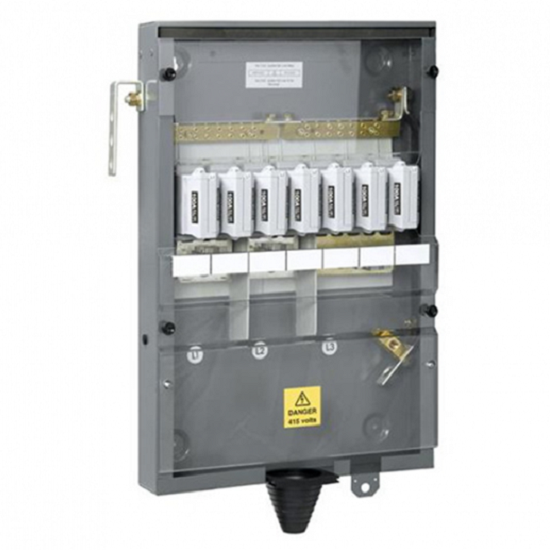

Lucy MSDB horizontal busbar 3 phase 400 V 315 A rated
Mild steel wall mounting distribution boards with a horizontal configuration suitable for direct connection to supply network. Factory fitted with 100A rated SP outgoing fuse ways.
- Completely removable cover giving full access to board internals
- Powder coated sheet steel construction
- Optional 4 core incoming cable kit
- Site configurable for CNE or SNE cable systems
- M12 fixings for incoming connections and internal busbar links
- Closed cell foam bushing to seal around outgoing cables
- Labeling facility for incoming phases and outgoing circuits
- 3 position entry for incoming supply cable
- Internal transparent screens over incoming and outgoing cable compartments
- 4 keyhole fixing points on raised bosses to compensate for surface irregularities
- Dual padlocking points on cover to prevent unauthorized access
- Optional glanding kit for different cable types eg. copper screened, aluminium or steel wire armoured
