MV Crimp Lug - CLEARANCE


from only £14.18 Ex VAT

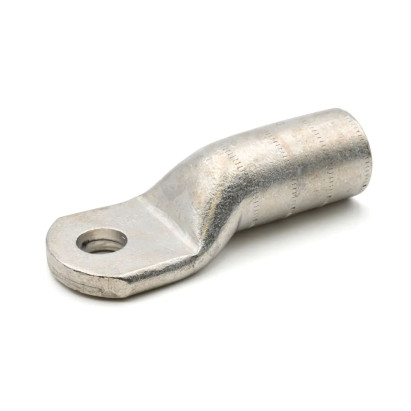

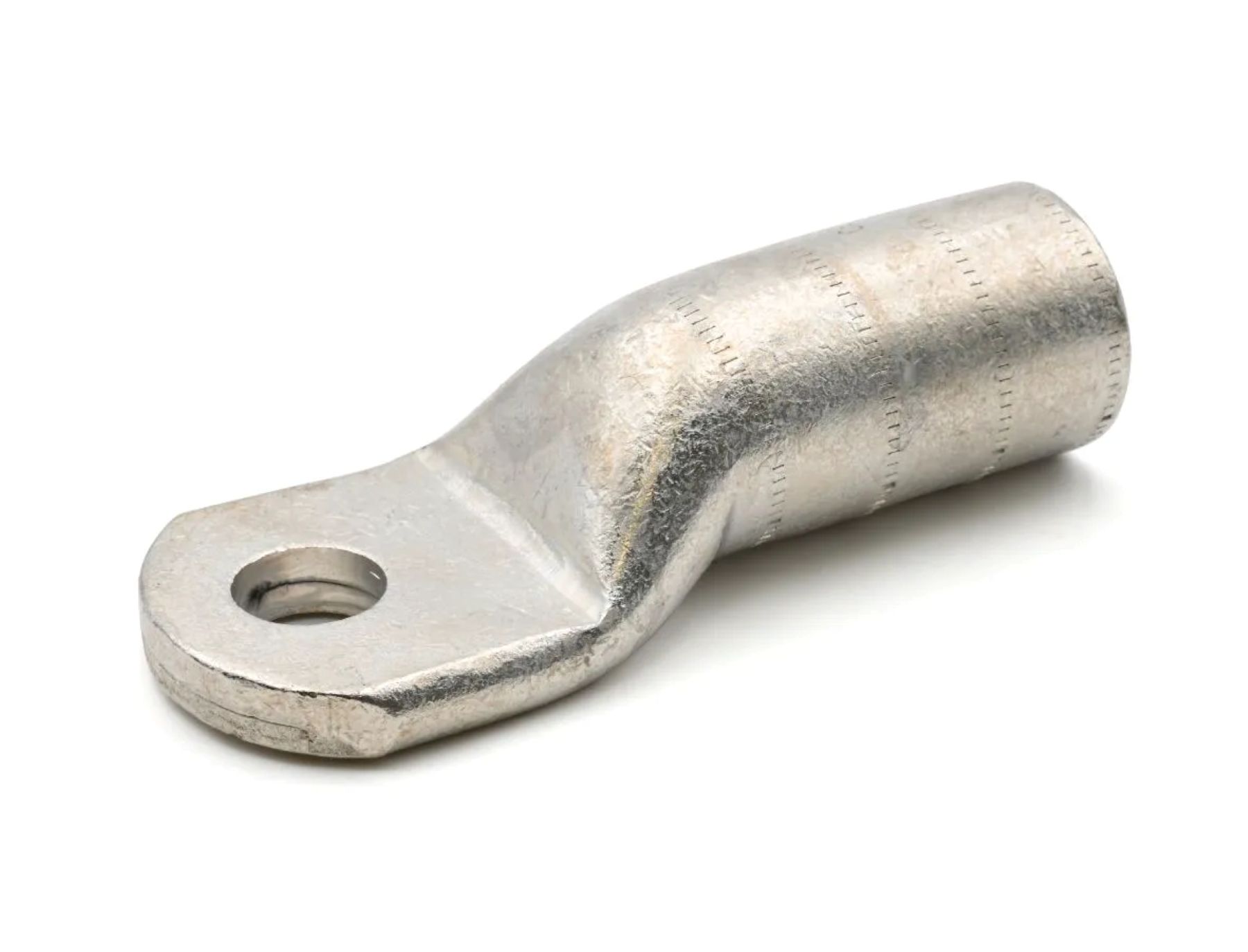

Cembre MV Waterblocked Copper Crimp Lug - Tin Plated

Series CA-M terminals are designed for medium voltage applications up to 35 kV

  • Dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out.
  • Extended barrel enhances both electrical and mechanical performance.
  • The absence of an inspection hole prevents moisture entry into the crimped joint and makes these terminals suitable for outdoor applications.
  • Lugs are electrolytically tin plated, with a minimum thickness of 3μm, to avoid oxidation.
  • CA-M series lugs are manufactured from electrolytic copper tube Cu-OF CW008A conform to UNI EN 13600:2003.
  • Lugs are electrolytically tin plated, with a minimum thickness of 3μm, to avoid oxidation

*LIMITED STOCKS AT THIS SPECIAL PRICE – WHILST STOCKS LAST*

(Stock Quantity subject to change)

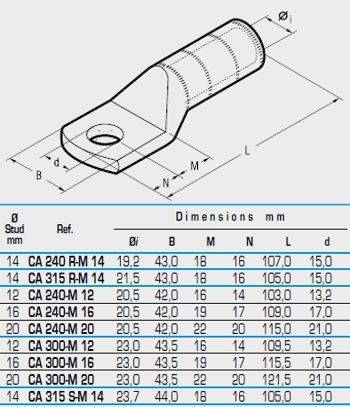

Technical Data

Order
Part Number Wolseley Code Stud Size *Current Stock Quantity Price Ex VAT Quantity
CA300-M12 CJ0663 M12 327 £14.18
CA300-M16 CJ0668 M16 1 £14.18
