Unarmoured With Connectors


from only £239.40 Ex VAT

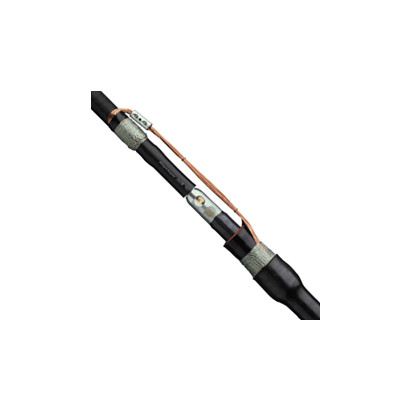

Tyco Inline heat shrink joints for single core unarmoured XLPE cables

Designed to join inline single core 33kV unarmoured XLPE cables

  • MXSU jointing system up to 36kV comes complete with mechanical connectors
  • Mechanical connectors for conductor and wire shield are included with the kit
  • Increases installation reliability
  • For polymeric insulated cables
  • Kits are widely range taking and cover most conductor constructions
  • No crimping tools or tool maintenance needed
  • Install improved by short, space saving design
  • Highly reliable U.K industry standard joint
  • Unlimited shelf life which reduces cost and material logistics needs
  • Kit contents - Stress control and insulation tubing, wire shield, outer heat shrink sleeving, mechanical connectors, void, stress and moisture tapes
  • Avoids bulky waste and expensive waste disposal
  • Pre-set shear torque provides safe and reliable installation
  • Bolt tip design delivers excellent tensile performance
  • Part of a wide range of medium voltage heat shrink joints available from Jointing Tech - contact your local office for more details!
Technical Data
  • Tested in accordance with CENELEC specification HD 629 or IEC 60502-4 for joints
  • Network Rail Approved
Order
Part Number Conductor Size Price Ex VAT Quantity
MXSU-6111 35-95mm² £239.40
MXSU-6121 70-150mm² £254.10
MXSU-6131 150-300mm² £268.80
MXSU-6141 240-400mm² £285.60
MXSU-6151 500mm² £298.20
MXSU-6161 630mm² £309.75
MXSU-6171 800mm² £336.00
MXSU-6181 1000mm² £378.00
