Multi Cleat – Stainless Steel Base

Show VAT

from only £35.28 Ex VAT£42.34 Inc VAT

Indoor/outdoor for 34mm to 110mm cable diameter for single cable and 24mm to 145mm in trefoil formation

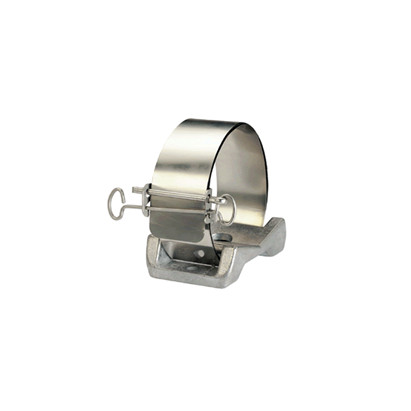

Multicleat is a stainless steel multistrap with a base
Multicleat bases are manufactured out of aluminium as standard but are available in epoxy coated aluminium, stainless steel, hot dip galvanised & coated cast iron
Can be used for all types of cable routes
Exceptional overlapping ranges
Non magnetic materials used throughout
Recommended spacing dictated by short circuit withstand (see Technical data)
Available in 26 products for each base type

Order

Part Number	Type	Cable Diameter for Singles	Cable Diameter for Trefoils	Price Ex VATInc VAT
378JB01	Standard	36-65mm	24-34mm	£35.28£42.34
378JB02	Standard	60-85mm	30-41mm	£35.28£42.34
378JB03	Standard	80-90mm	37-47mm	£36.54£43.85
378JB04	Standard	85-110mm	43-54mm	£36.54£43.85
378JB05	Standard	–	50-60mm	£39.69£47.63
378JB06	Standard	–	56-67mm	£40.32£48.38
378JB07	Standard	–	63-73mm	£42.84£51.41
378JB08	Standard	–	69-80mm	£43.47£52.16
378JB09	Standard	105-120mm	–	£39.69£47.63
378JB51	Heavy Duty	36-65mm	24-34mm	£40.95£49.14
378JB52	Heavy Duty	60-85mm	30-41mm	£40.95£49.14
378JB53	Heavy Duty	80-90mm	37-47mm	£42.84£51.41
378JB54	Heavy Duty	85-110mm	43-54mm	£42.84£51.41
378JB55	Heavy Duty	–	50-60mm	£45.99£55.19
378JB56	Heavy Duty	–	56-67mm	£47.25£56.70
378JB57	Heavy Duty	–	63-73mm	£49.77£59.72
378JB58	Heavy Duty	–	69-80mm	£50.40£60.48
378JB59	Heavy Duty	105-120mm	–	£45.99£55.19
378JB29	Heavy Duty	85-110mm	–	£53.55£64.26
378JB36	Heavy Duty	–	80-110mm	£51.35£61.62
378JB37	Heavy Duty	–	82-95mm	£52.92£63.50
378JB38	Heavy Duty	–	92-105mm	£53.55£64.26
378JB39	Heavy Duty	–	102-115mm	£53.55£64.26
378JB40	Heavy Duty	–	112-125mm	£54.81£65.77
378JB41	Heavy Duty	–	122-135mm	£56.70£68.04
378JB42	Heavy Duty	–	132-145mm	£62.37£74.84
