Multi Cleat – Aluminium Base

Show VAT

from only £10.71 Ex VAT£12.85 Inc VAT

Indoor/outdoor for 34mm to 110mm cable diameter for single cable and 24mm to 145mm in trefoil formation

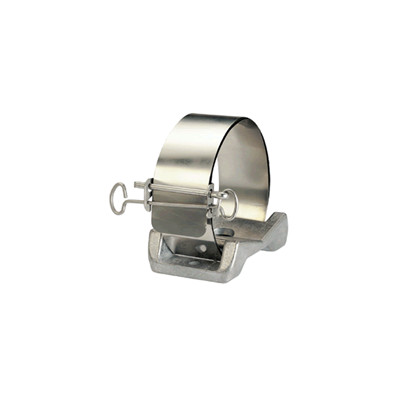

Multicleat is a stainless steel multistrap with a base
Multicleat bases are manufactured out of aluminium as standard but are available in epoxy coated aluminium, stainless steel, hot dip galvanised & coated cast iron
Can be used for all types of cable routes
Exceptional overlapping ranges
Non magnetic materials used throughout
Recommended spacing dictated by short circuit withstand (see Technical data)
Available in 26 products for each base type

Technical Data

Datasheets

Order

Part Number	Wolseley Code	Type	Cable Diameter for Singles	Cable Diameter for Trefoils	Price Ex VATInc VAT
378AB01	CJ1786	Standard	36-65mm	24-34mm	£10.71£12.85
378AB02		Standard	60-85mm	30-41mm	£10.93£13.12
378AB03		Standard	80-90mm	37-47mm	£11.94£14.33
378AB04		Standard	85-110mm	43-54mm	£12.22£14.66
378AB05		Standard	–	50-60mm	£12.76£15.31
378AB06		Standard	–	56-67mm	£13.28£15.94
378AB07		Standard	–	63-73mm	£18.64£22.37
378AB08		Standard	–	69-80mm	£19.90£23.88
378AB09	JZ0423	Standard	105-120mm	–	£14.74£17.69
378AB51		Heavy Duty	36-65mm	24-34mm	£13.56£16.27
378AB52	CJ1738	Heavy Duty	60-85mm	30-41mm	£13.91£16.69
378AB53	CJ1806	Heavy Duty	80-90mm	37-47mm	£14.75£17.70
378AB54		Heavy Duty	85-110mm	43-54mm	£14.96£17.95
378AB55		Heavy Duty	–	50-60mm	£15.23£18.28
378AB56		Heavy Duty	–	56-67mm	£16.01£19.21
378AB57		Heavy Duty	–	63-73mm	£21.89£26.27
378AB58		Heavy Duty	–	69-80mm	£22.26£26.71
378AB59		Heavy Duty	105-120mm	–	£25.41£30.49
378AB29		Heavy Duty	85-110mm	–	£30.45£36.54
378AB36		Heavy Duty	–	72-85mm	£41.48£49.78
378AB37		Heavy Duty	–	82-95mm	£42.21£50.65
378AB38		Heavy Duty	–	92-105mm	£42.53£51.04
378AB39	JZ0711	Heavy Duty	–	102-115mm	£42.89£51.47
378AB40		Heavy Duty	–	112-125mm	£43.10£51.72
378AB41		Heavy Duty	–	122-135mm	£43.42£52.10
378AB42		Heavy Duty	–	132-145mm	£43.94£52.73
