OXSU Type XLPE Cable Outdoor Termination
from only POA

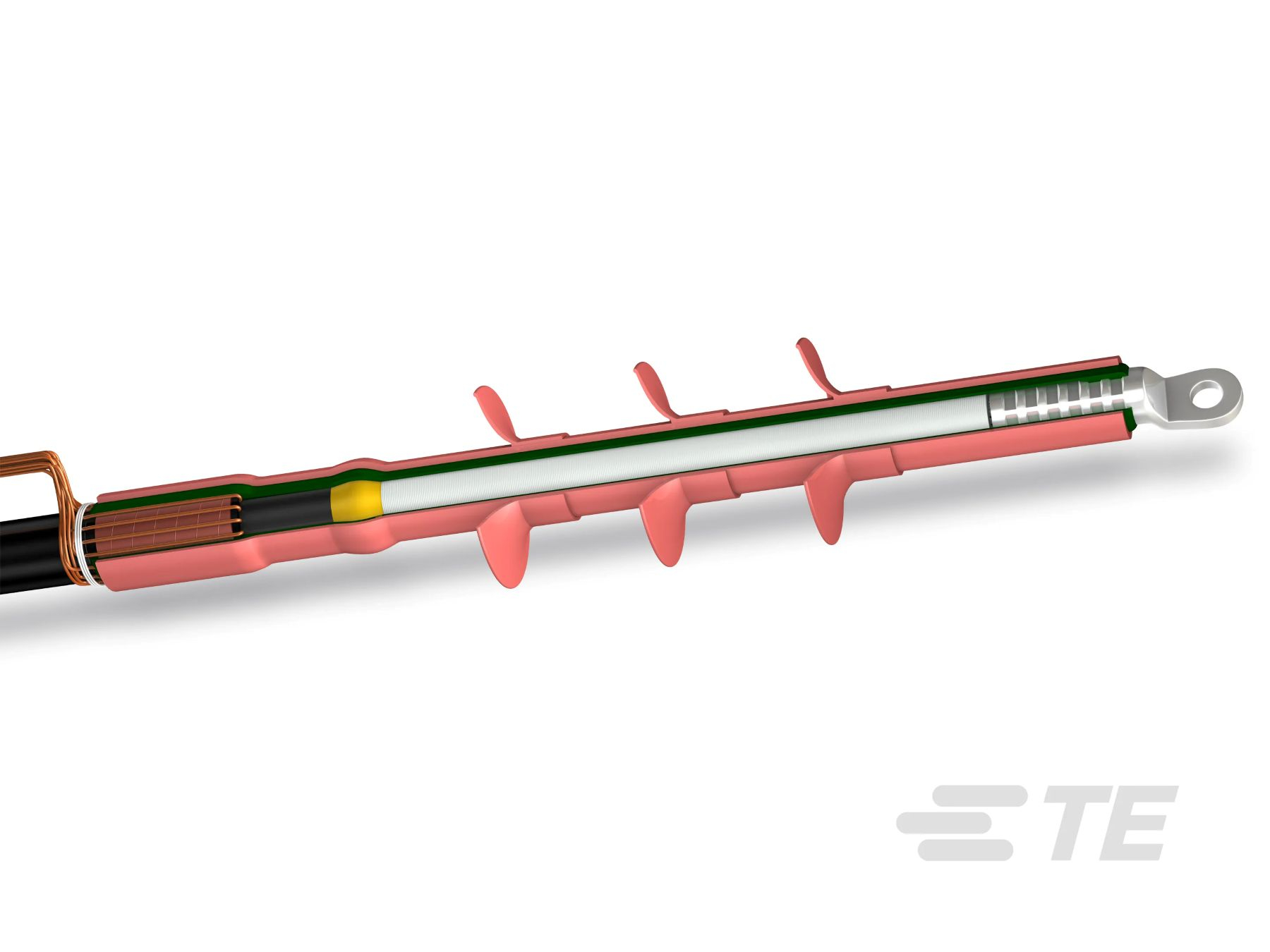

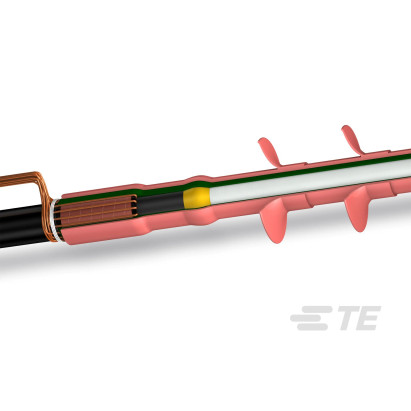

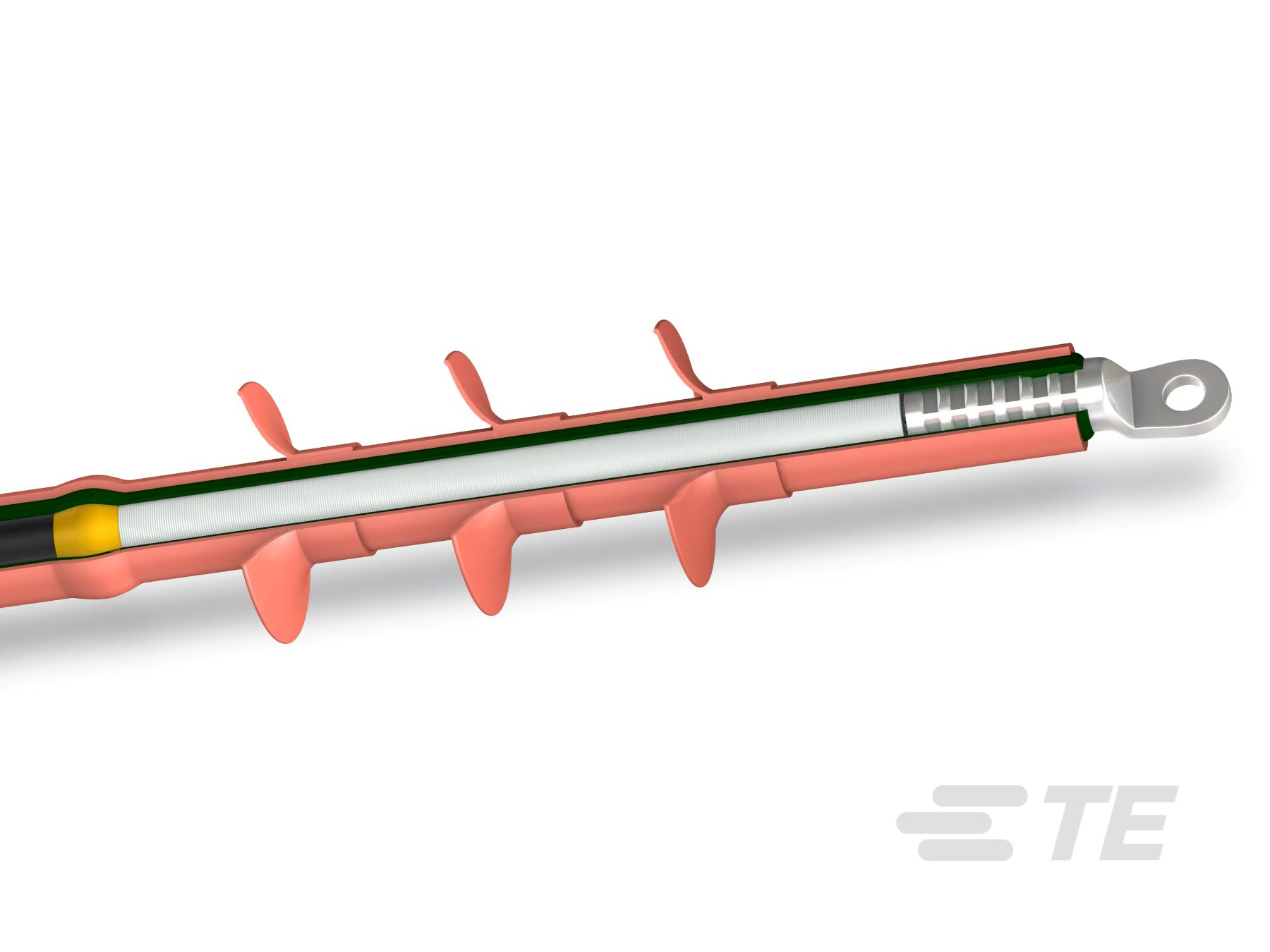

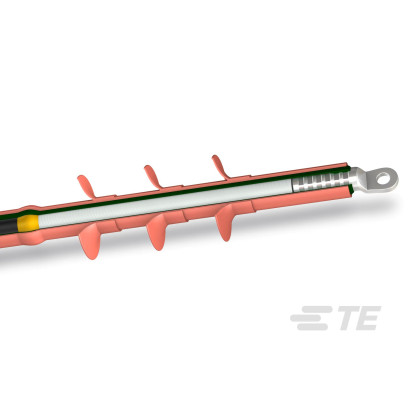

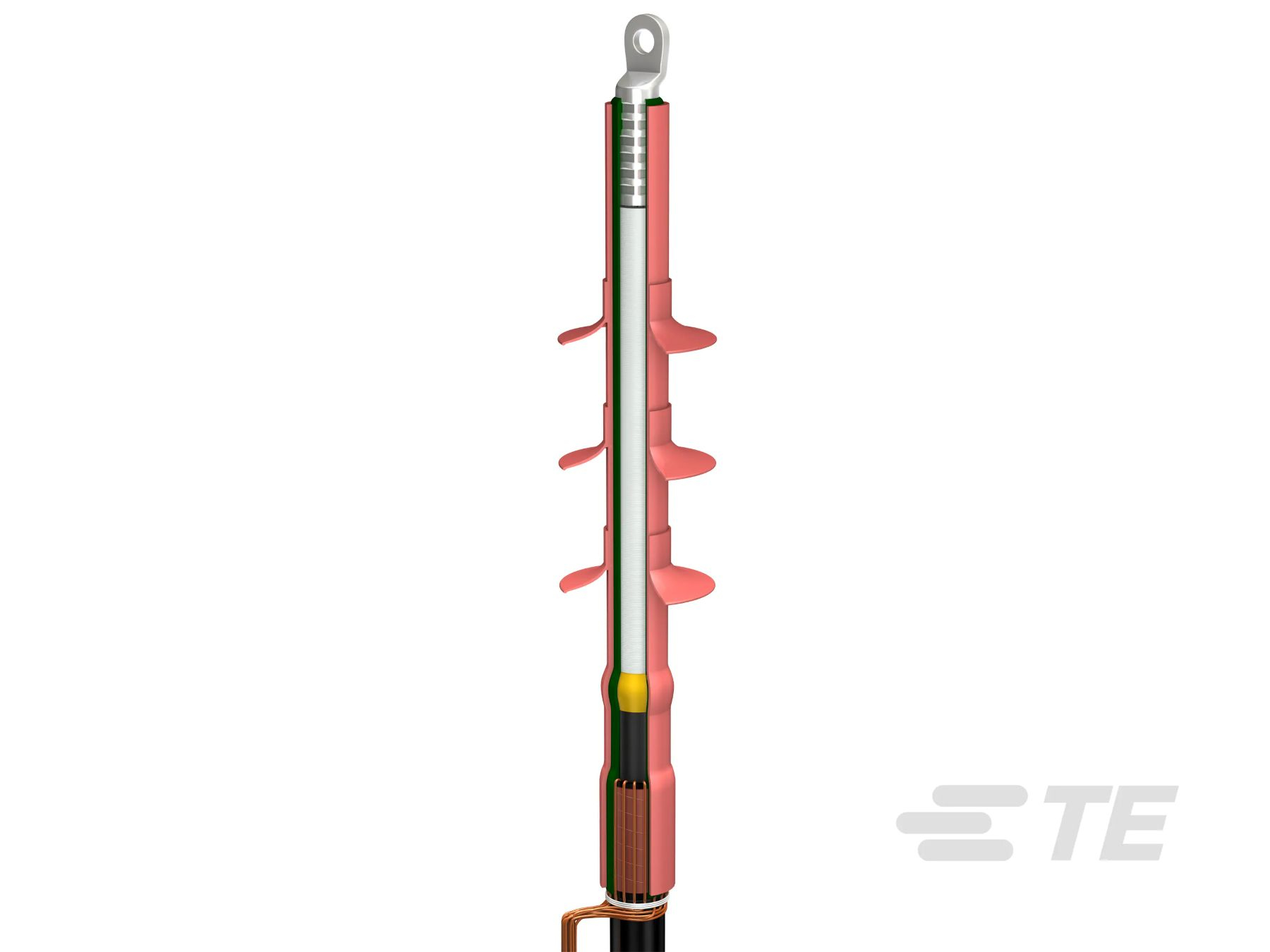

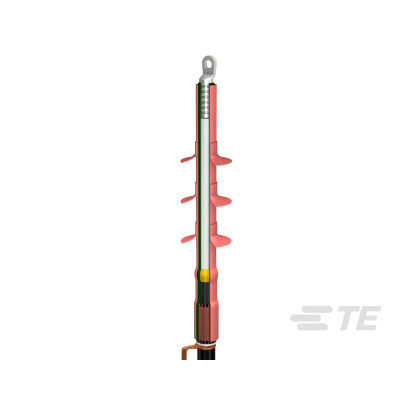

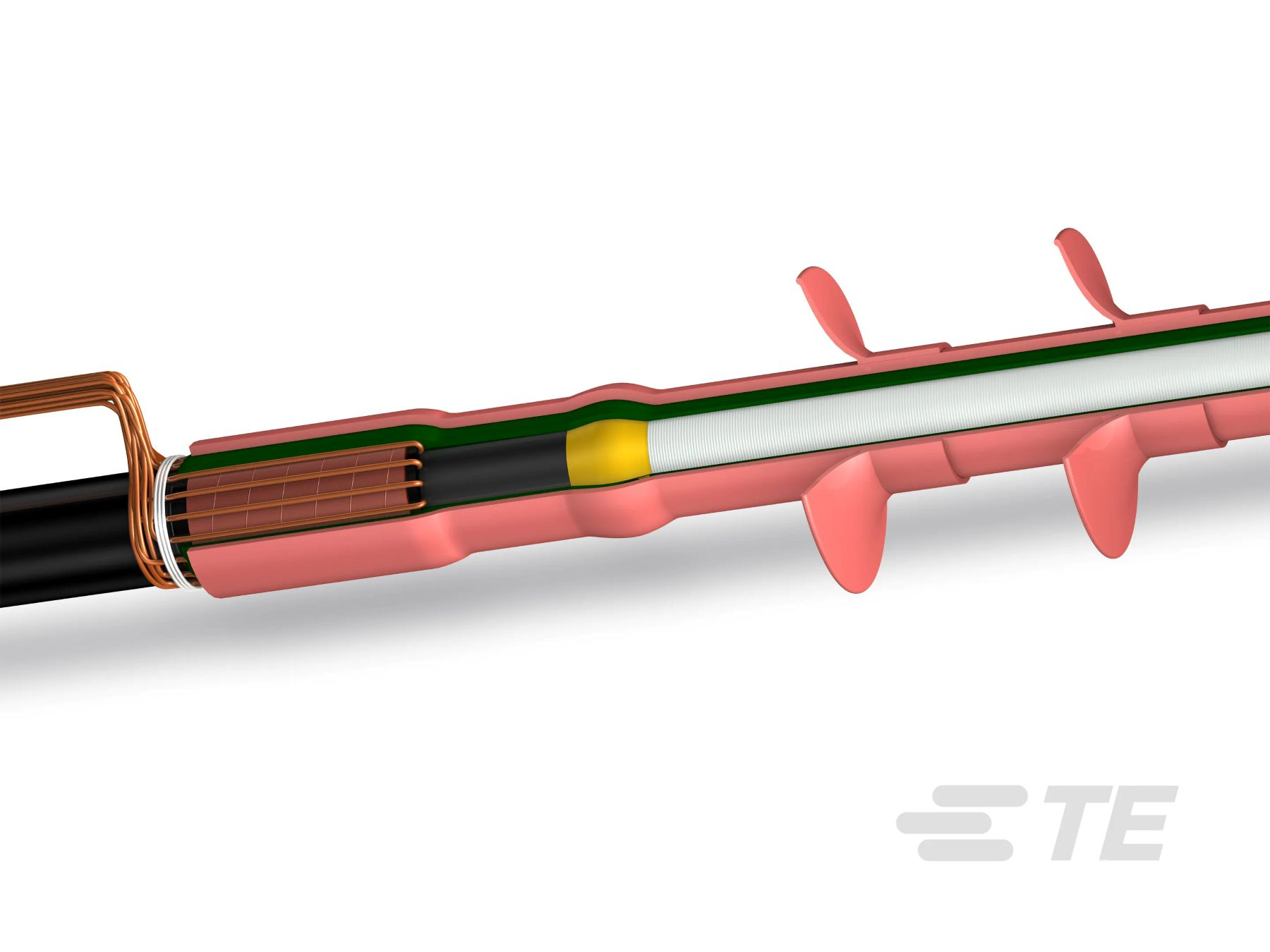

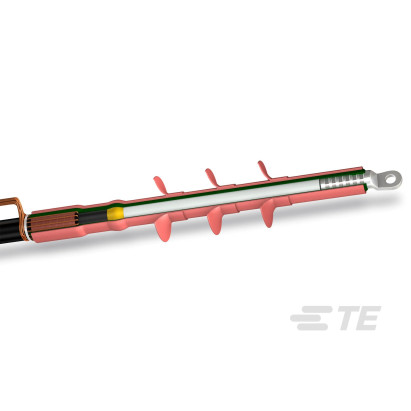

Tyco 11kV Outdoor Heat Shrink Termination (OXSU Type) - Three Core XLPE Cable
Designed to terminate three core, polymeric insulated 11kV cables in outdoor applications such as pole top assemblies
- Highly reliable U.K industry standard termination
- Range taking with few components needed
- New ceramic stress control
- Compact design
- No shelf life limitation
- Conductive tubing allows the crossing of the cores below the screen cut
- Additional tubing is available should the tail lengths need to be increased above 1200mm
- Kit contents - Insulation tubing including co-extruded stress control, sealant tapes, conductive breakouts and installation instructions
- Tested in accordance with CENELEC specification HD 629 which encompasses IEC, BS and VDE etc.
- All IXSU/OXSU components have full traceability of raw materials and manufacture according to ISO 9001 & ISO 14001
