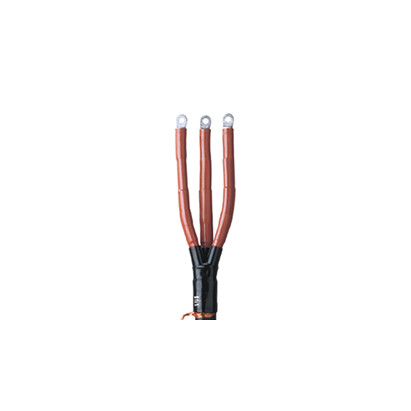

Indoor 11kV PILC Cable Termination - Three Core


from only £179.34 Ex VAT

Tyco Three core heat shrink termination for PILC cables in indoor applications

Designed to terminate three core, paper insulated 11kV cables in indoor applications to switchgear & cable end boxes

  • Kit contents - stress control tubing, sealant coated breakouts and core insulation sleeves, sealant tapes, and installation instructions
Technical Data

Tested in accordance with CENELEC specification HD 629 which encompasses IEC, BS and VDE etc

Order
Part Number Wolseley Code Conductor Size Tail Length Price Ex VAT Quantity
EPKT17A3MIH2 16- 25mm² 650mm £195.30
EPKT17A3MIH4 16- 25mm² 1200mm £232.05
EPKT17B3MIH2 CJ2441 35- 70mm² 650mm £179.34
EPKT17C3MIH2 CJ1277 95- 240mm² 650mm £275.73
EPKT17C3MIH4 CJ2444 95- 240mm² 1200mm £318.68
EPKT17D3MIH2 CJ2446 300- 400mm² 650mm £317.63
