Outdoor 11kV Heat Shrink PILC Cable Termination - Three Core

Show VAT

from only POA

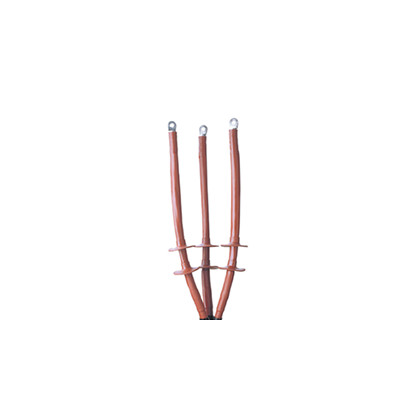

Tyco 11kV Outdoor Heat shrink Termination - Three Core PILC Cable

Designed to terminate three core, paper insulated 11kV cables in outdoor applications such as pole top assemblies

Kit contents - stress control tubing, sealant coated breakouts and core insulation sleeves, sealant tapes, and installation instructions

Technical Data

Tested in accordance with CENELEC specification HD 629 which encompasses IEC, BS and VDE etc

Datasheets

Outdoor 11kV Heat Shrink PILC Cable Termination Datasheet

Order

Part Number	Wolseley Code	Conductor Size	Tail Length	Price Ex VATInc VAT	Quantity
EPKT17A3MOH2		16-25mm²	650mm	£212.63£255.16
EPKT17A3MOH4		16-25mm²	1200mm	£267.44£320.93
EPKT17B3MOH2	JZ3101	35-70mm²	650mm	£243.81£292.57
EPKT17B3MOH4		35-70mm²	1200mm	£267.44£320.93
EPKT17C3MOH2	CJ3708	95-240mm²	650mm	£288.23£345.88
EPKT17C3MOH4		95-240mm²	1200mm	£317.52£381.02
EPKT17D3MOH2		300-400mm²	650mm	POA
EPKT17D3MOH4		300-400mm²	1200mm	POA
