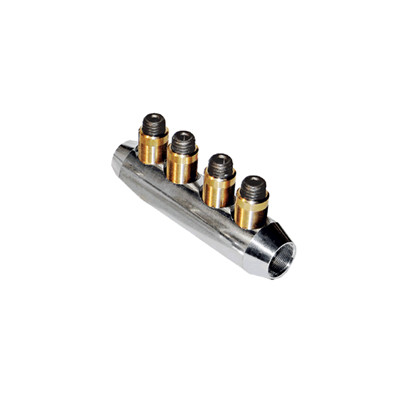

Pfisterer HV Connector Straight to 72kV


from only £15.70 Ex VAT

Pfisterer SICON HV straight mechanical connectors for copper and aluminium conductors

  • Suitable for use on copper or aluminium conductors
  • Smooth breaking of the shear bolt simplifies tightening process
  • Suitable for use with most 3M joints 11 & 33kV - contact our sales team for more information
  • Conductor size based on circular stranded copper and aluminium
Technical Data
  • 72kV Rated
  • Contact technology type tested electrically and mechanically to IEC 61238-1
  • Up to 30% increased contact force compared to conventional type terminals
Order
Part Number Wolseley Code Conductor Range Price Ex VAT Quantity
332-593- 012 (4 Bolt) 16-150mm² £15.70
332-592-012 CJ3918 50-185mm² £17.33
332-614-012 50-240mm² £20.03
332-602-012 CJ3400 95-300mm² £25.99
332-617-012 CJ3399 185-400mm² £52.24
332-603-012 JZ3230 300-630mm² £72.45
