Pfisterer HV Lugs to 72kV


from only £13.13 Ex VAT

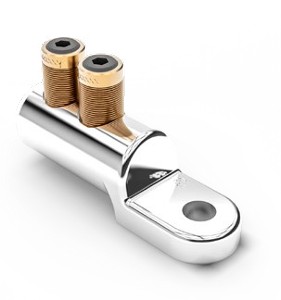

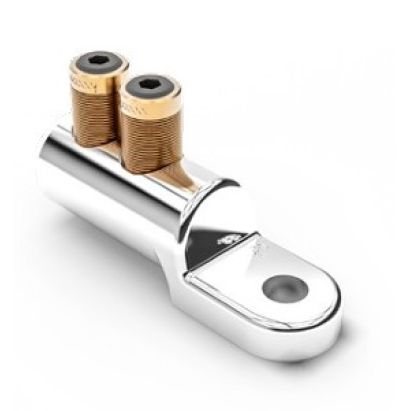

Pfisterer SICON HV mechanical lug for copper and aluminium conductor

  • Large clamping range
  • Suitable for use on copper or aluminium conductors
  • Conductor channels with transverse grooves and protection against conductor oxidisation
  • Blind hole designed as pressure-resistant oil barrier for oil cable
  • Compact design, rounded edges and at transitions, suitable for slide on and shrink sleeves
  • Contact technology type tested
  • Centring sleeves
  • Bolt base plate for uniform friction and increased contact force
  • Nothing protrudes, no need for filing
  • Up to 30% increased contact force
  • Full utilisation of the thread loading for any size of conductor
  • Suitable for fine stranded class 5 cables
  • Smooth breaking of the shear bolt simplifies tightening process
  • No need for specialist tooling
  • Suitable for use with most 3M joints 11 & 33kV - contact our sales team for more information
  • Axial type lug (centralised palm) also available
  • Conductor size based on circular stranded copper and aluminium
Technical Data
  • 72kV Rated
  • Contact technology type tested electrically and mechanically to IEC 61238-1
  • Up to 30% increased contact force compared to conventional type terminals
Order
Part Number Wolseley Code Hole Size Conductor Size Price Ex VAT Quantity
332-604-012 CJ3919 13mm 10-95mm² £13.13
332-599-012 13mm 16-150mm² £13.70
332-595-012 CJ3633 13mm 50-240mm² £17.01
332-595-022 CJ3632 16mm 50-240mm² £17.01
332-605-012 JZ1750 13mm 95-300mm² £19.53
332-605-022 SB93519 16mm 95-300mm² £21.42
332-625-012 13mm 185-400mm² £39.11
332-625-022 16mm 185-400mm² £39.11
332-606-022 JZ3163 13mm 300-630mm² £59.85
332-606-012 JZ1752 16mm 300-630mm² £66.15
332-625-052 (2 HOLE) 2 x 14mm 185-400mm² £57.75
