LV Straight Joints – Prysmian
from only £37.12 Ex VAT

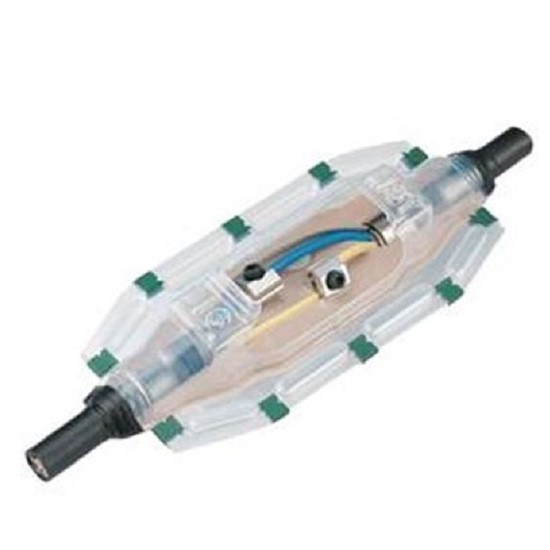

Inline Resin joints for LV armoured power cables - plastic AND paper insulated
Designed to connect LV power cables inline by encapsulating in a resin filled shell
- Excellent mechanical protection
- Low Hazard Isocynate free JEM resin
- Transparent vacuum formed shells which offer greater working dimensions & interlocking flange seals
- Large transparent, high impact resistant shells
- Large, extra wide shell design allows the use of mechanical connectors
- Clear Resin bags to aid with mixing process
- Can be used at 3.3kV with the use of mastic patches
- All resin joints kit supplied with NEW REACH compliant JEM resin
- Kit comprises mould shell, JEM resin, earth continuity kit and PVC tapes
MECHANICAL CONNECTORS NOT INCLUDED, PLEASE ORDER SEPARATELY
- 1000V Rated (or 3.3kV with Mastic Patches)
- Tested to BS EN 50393 & ENA ER C81
- Tested to Engineering Standard C81
- NEW REACH compliant JEM resin
- Low Voltage Straight Joints for 600/1000 Volt SWA cables to BS5467, BS6346 and IEC 502 - with Polymeric Insulation, aluminium or copper conductors
JEM Resin
- Easier mixing in “Twin Pack” totally enclosed mixing in a clear laminate sachet.
- Extremely low mix viscosity allows void free joint filling.
- JEM Resin is insensitive to moisture and will cure under water.
- Enhanced adhesion to XLPE, MDPE, PVC & lead.
- High flash point, non-flammable liquid - No special storage or transport requirements.
- Not classified as irritating to the skin or eyes.
- Does not cause skin sensitization
