Tyco Single Core Unarmoured XLPE Cables (Without Connectors)

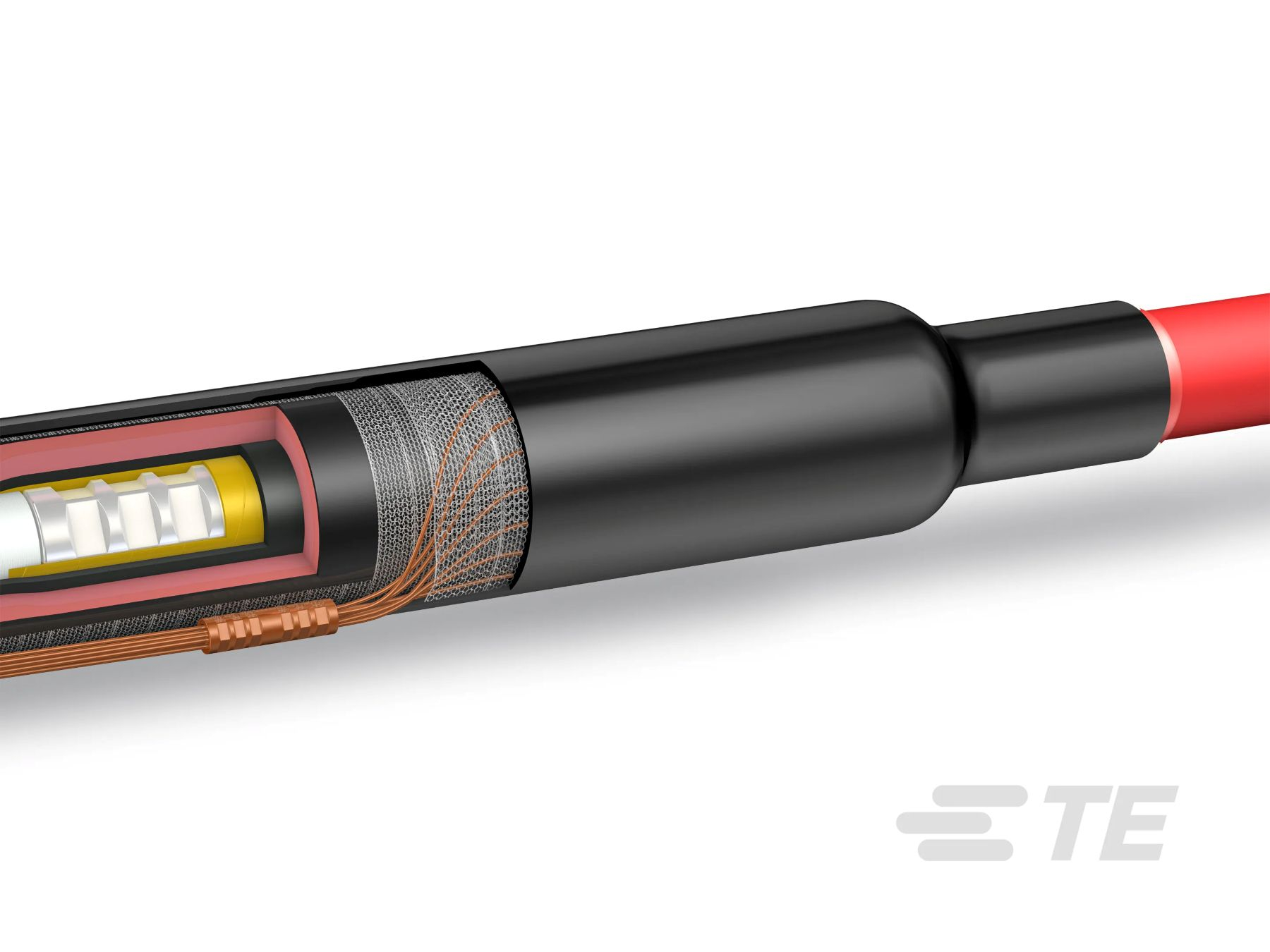

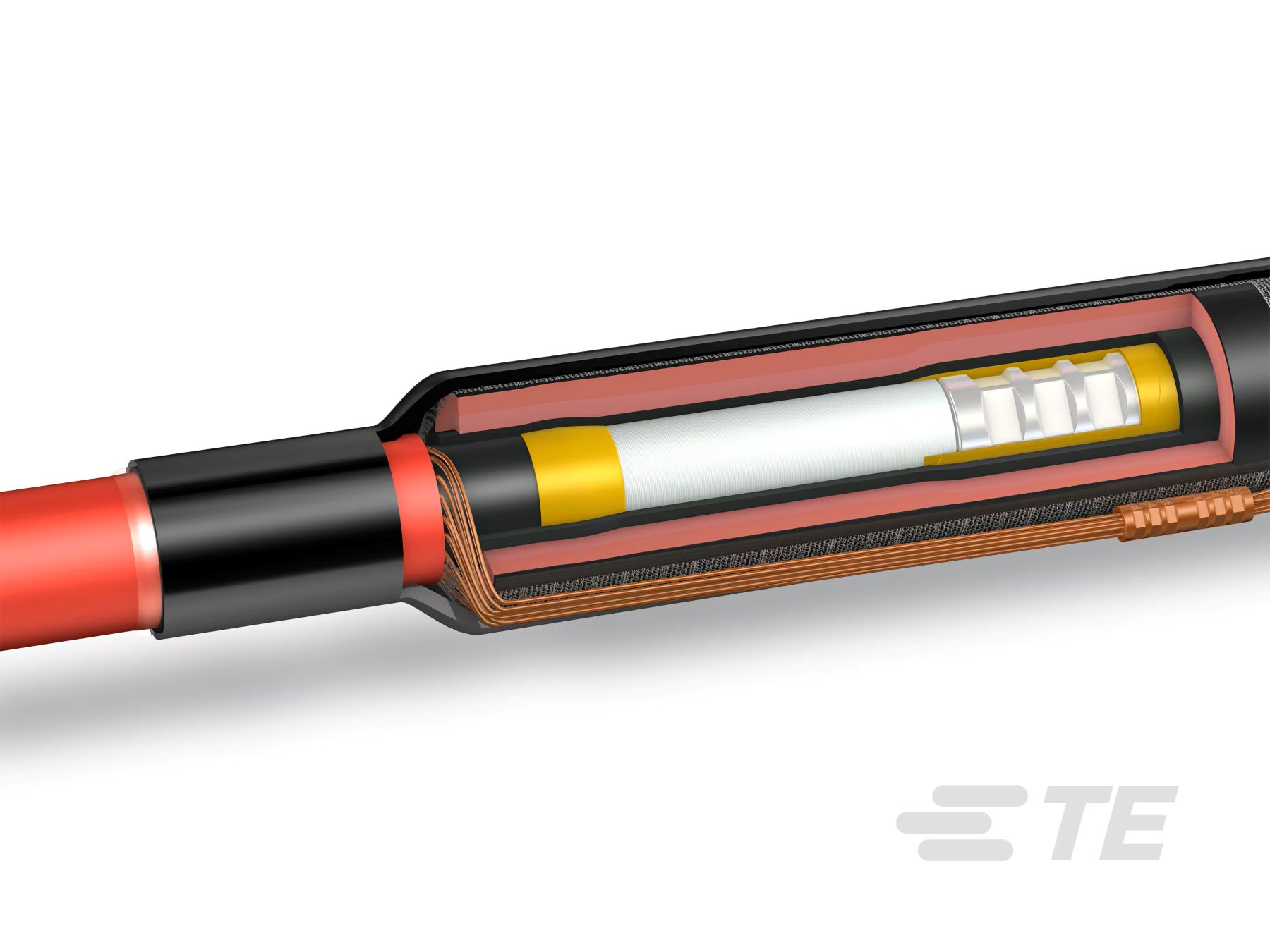

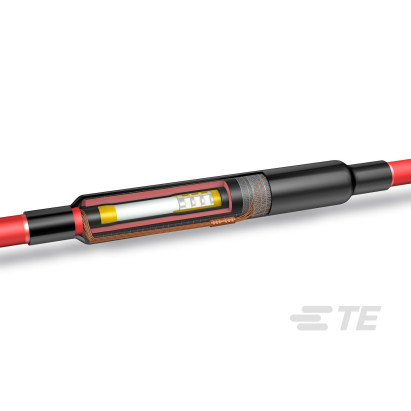

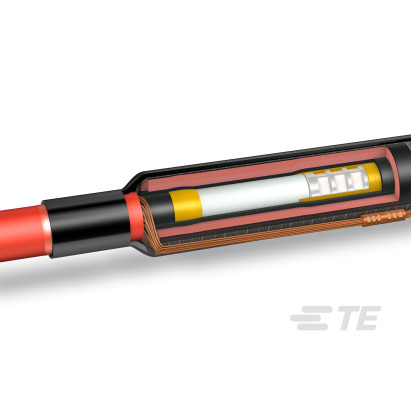

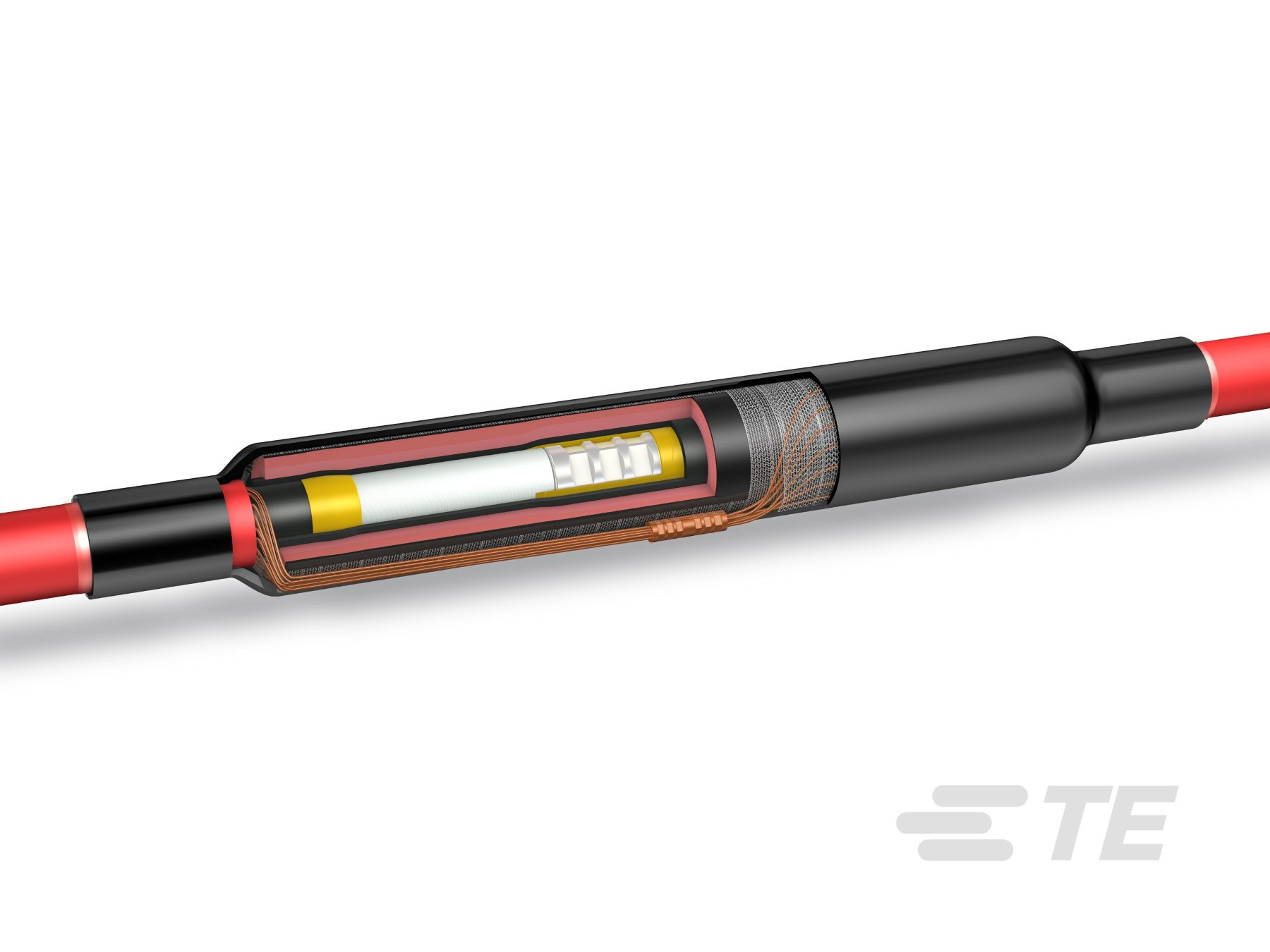

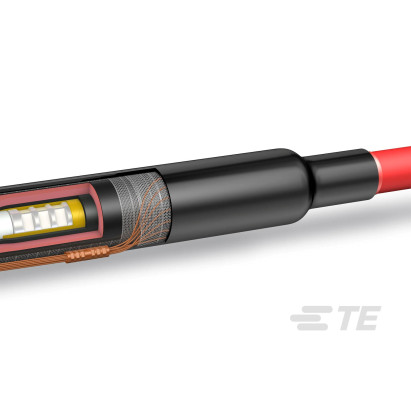

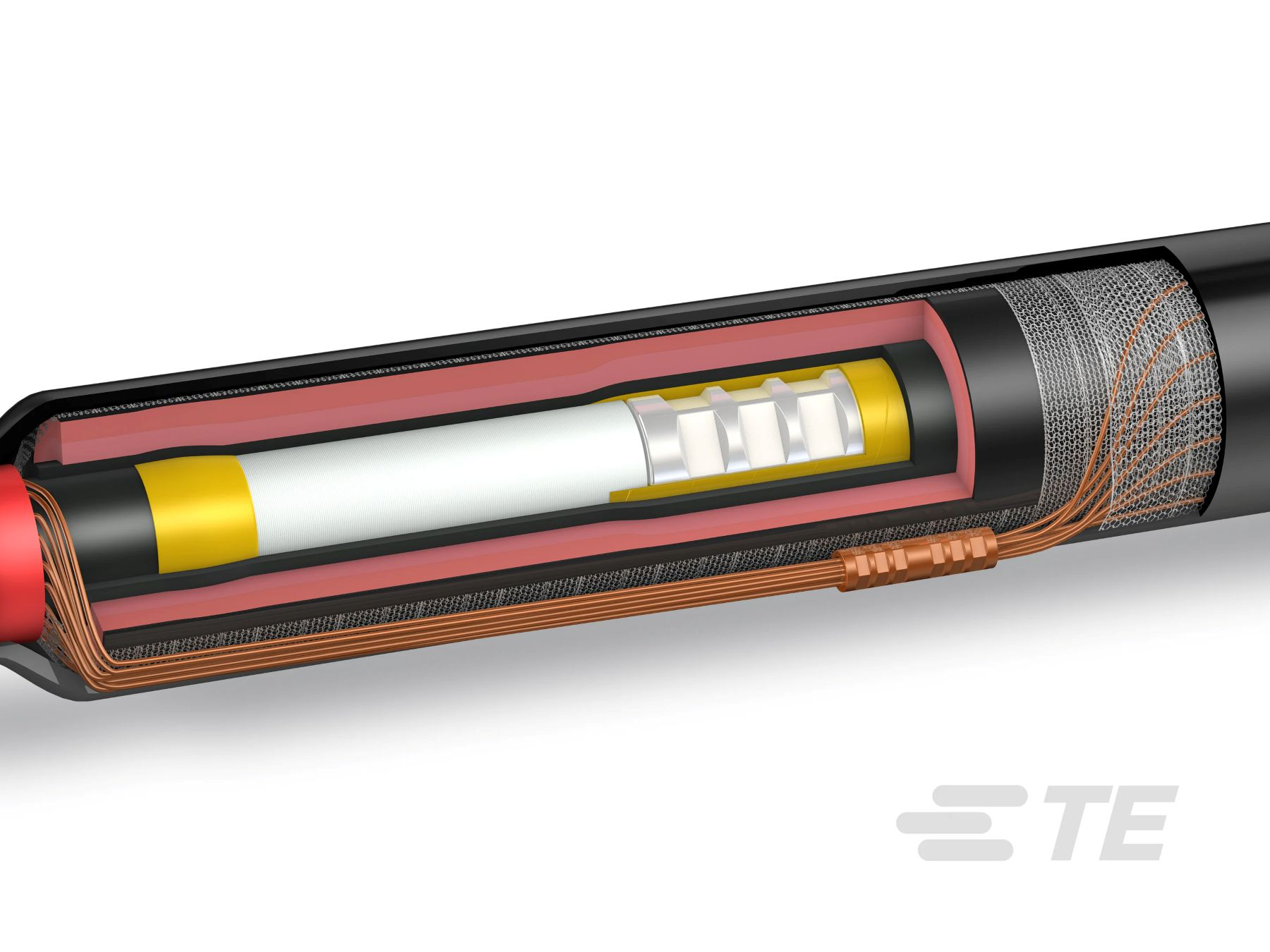

Inline heat shrink joints for single core unarmoured XLPE cables
- Designed to join inline single core 11kV unarmoured XLPE cables
- Highly reliable U.K industry standard joint
- Can be used with crimp connectors
- Triple-extruded body provides a pre-engineered joint unit with fewer kit components
- Advanced shrink behaviour and profile-following are combined with a significant reduction in shrink time
- High recovery forces result in tight electrical interfaces and perfect sealing ability
- Optimised heat transfer due to reduced thermal capacity
- The reduced overall joint diameter provides a slimmer and space- saving profile
- As an alternative to crimp connectors, kits can be selected with mechanical shear bolt connectors for conductor and shield continuity
- Unlimited shelf-life simplifies material logistics and reduces cost
- Kit contents - Stress control and insulation tubing, wire shield, outer heat shrink sleeving, void, stress and moisture tapes
*EXCLUDES CONNECTORS*
- Tested in accordance with CENELEC specification HD 629 or IEC 60502-4 for joints
-
Exceeds international performance standards including CENELEC
-
HD 629 and IEC 60502 for joints and IEC 61238 for Tyco BSM type mechanical connectors
- Network Rail Approved
