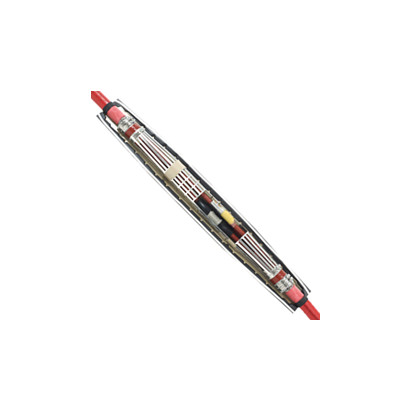

11kV Three Core Inline Shrinkset Joint


from only £31.45 Ex VAT

Tyco ShrinkSet Universal jointing system for 12 kV 3-core polymeric and paper cables

Tyco Inline universal jointing system for any combination of three core XLPE/PILC/PICAS cables

  • Designed to provide a universal system for three core 11kV inline and transition jointing of polymeric or paper cables in one kit
  • Highly reliable U.K industry standard joint
  • 1402 FR resin can be added to this kit for petrochemical environments
  • Proven in service with UK RECs since 1991
  • Based on Raychem high voltage heat-shrinkable insulation materials
  • Kit includes - stress control tubes, mechanical connectors, insulating sleeves, armour continuity & plastic shell
Technical Data
  • Tested in accordance with CENELEC specification HD 629 or IEC 60502-4 for joints
  • Approved to Electricity Association specification ER C90
Order
Part Number Wolseley Code Resin Included Conductor Size To Suit Price Ex VAT Quantity
SHSS-12A-IND CJ1303 35-185mm² Poly / 70-185mm² Paper – YES £485.10
SHSS-12B-IND CJ1304 185-300mm² Poly / 185-300mm² Paper – YES £656.25
SMOE61745 CJ2663 16-25mm² Poly / 16-50mm² Paper Use with SHSS-12-A - £31.45
SMOE61760 CJ2665 95-150mm² Poly / 95-150mm² Paper Use with SHSS-12-B - £34.02
SMOE61798 CJ2666 16-70mm² Poly / 16-70mm² Paper Use with SHSS-12-B - £43.79
