Ring Terminals – HALOGEN FREE


from only £8.40 Ex VAT

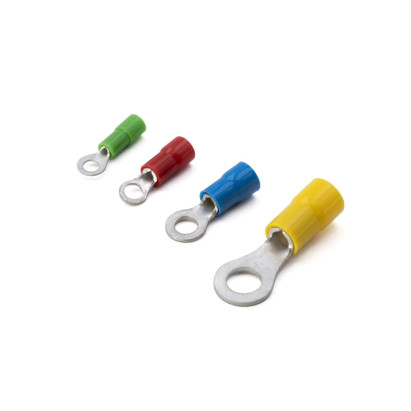

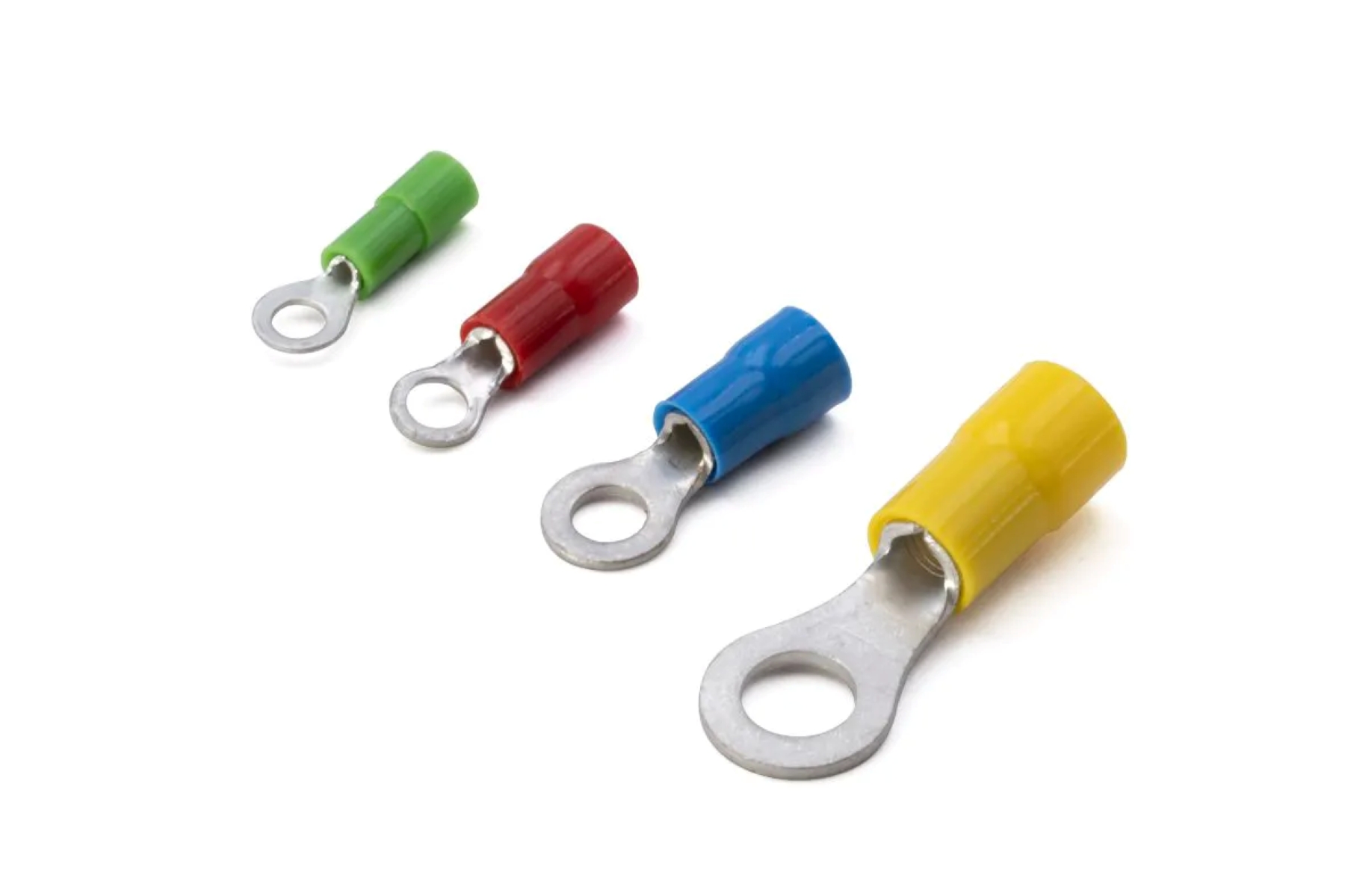

Cembre Ring Terminals Halogen Free Red, Blue & Yellow

The 'P' range of terminals has been designed to meet the increasing demands for safety and reliability of electrical connectors

  • Halogen free polycarbonate insulation
  • Self extinguishing thermoplastic material class VO (UL 94)
  • Unique funnel shaped entry guarantees total insertion of the conductor strands into the terminal barrel creating a secure and reliable electrical and mechanical connection
Technical Data
  • Operating temperature range: -20 to +115 C
Order
Part Number Wolseley Code Colour Hole Size Conductor Size Price Ex VAT Quantity
RP-L4/3 (90 DEG ELBOW) Red 4mm 0.25-1.5mm² £11.55
RP-M3 Red 3.2mm 0.25-1.5mm² £9.14

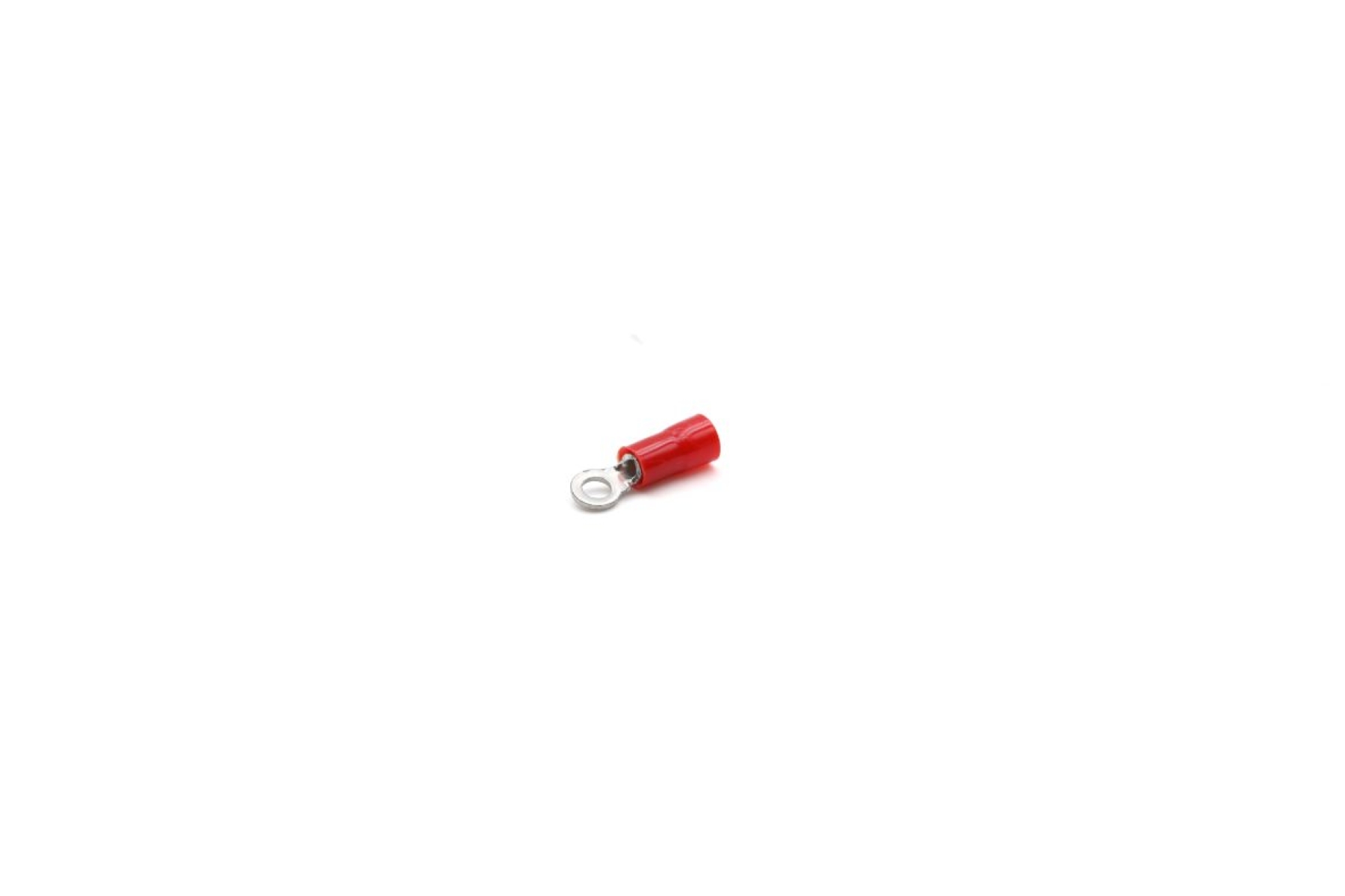

RP-M3.5 Red 3.7mm 0.25-1.5mm² £9.14
RP-M4 JZ0356 Red 4mm 0.25-1.5mm² £9.14
RP-M5 CJ3799 Red 5mm 0.25-1.5mm² £8.40
RP-M6 Red 6mm 0.25-1.5mm² £8.51

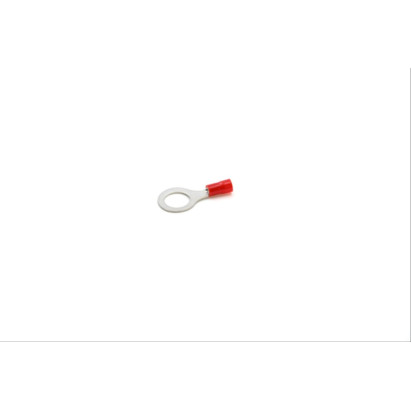

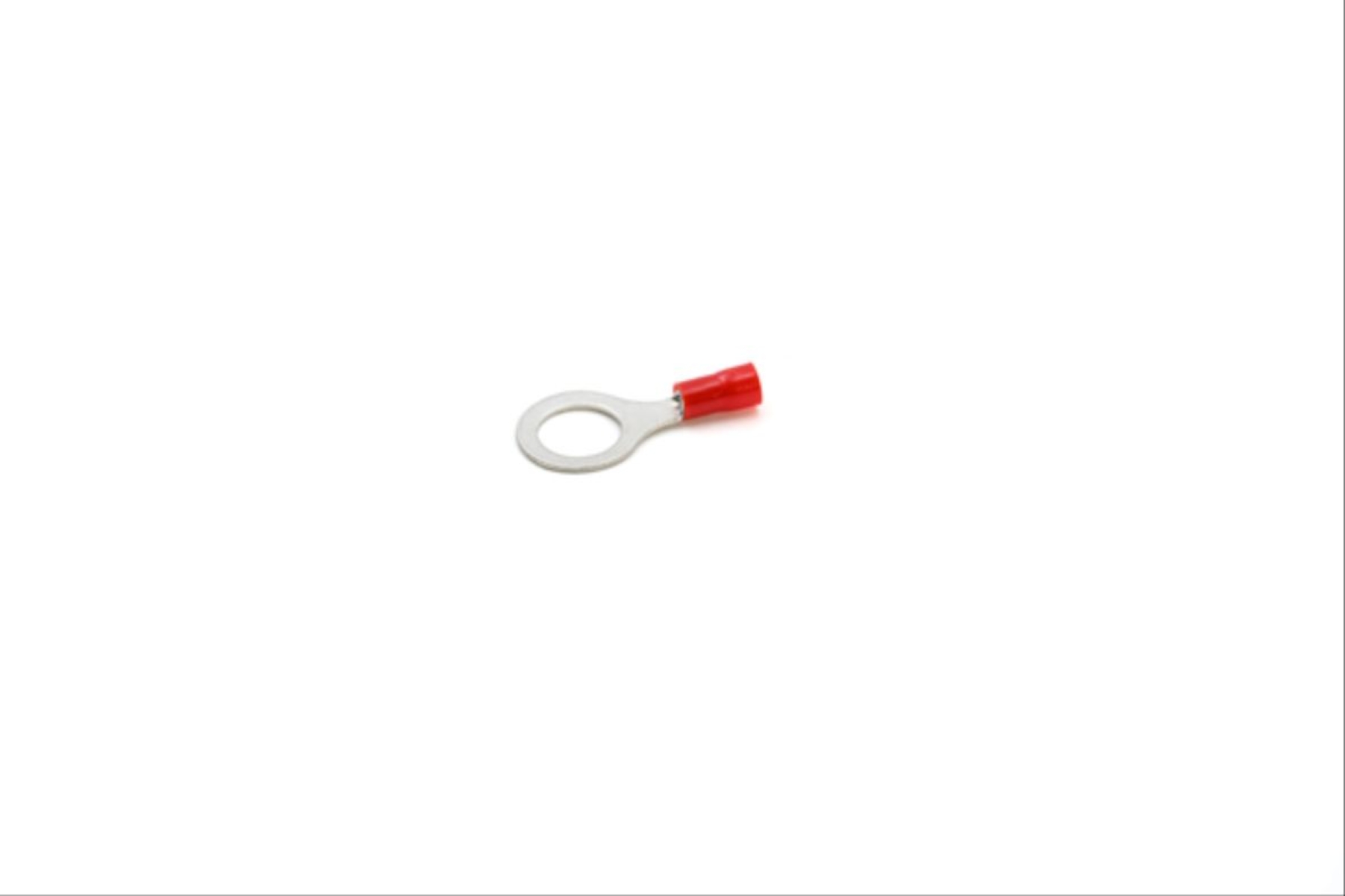

RP-M8 Red 8mm 0.25-1.5mm² £12.50
RP-M10 Red 10mm 0.25-1.5mm² £23.10
BP-L4 (90 DEG ELBOW) Blue 4mm 1.5-2.5mm² £11.55
BP-M3 JZ0470 Blue 3mm 1.5-2.5mm² £11.34
BP-M3.5 Blue 3.2mm 1.5-2.5mm² £11.34
BP-M4 Blue 4mm 1.5-2.5mm² £8.93
BP-M5 Blue 5mm 1.5-2.5mm² £8.93

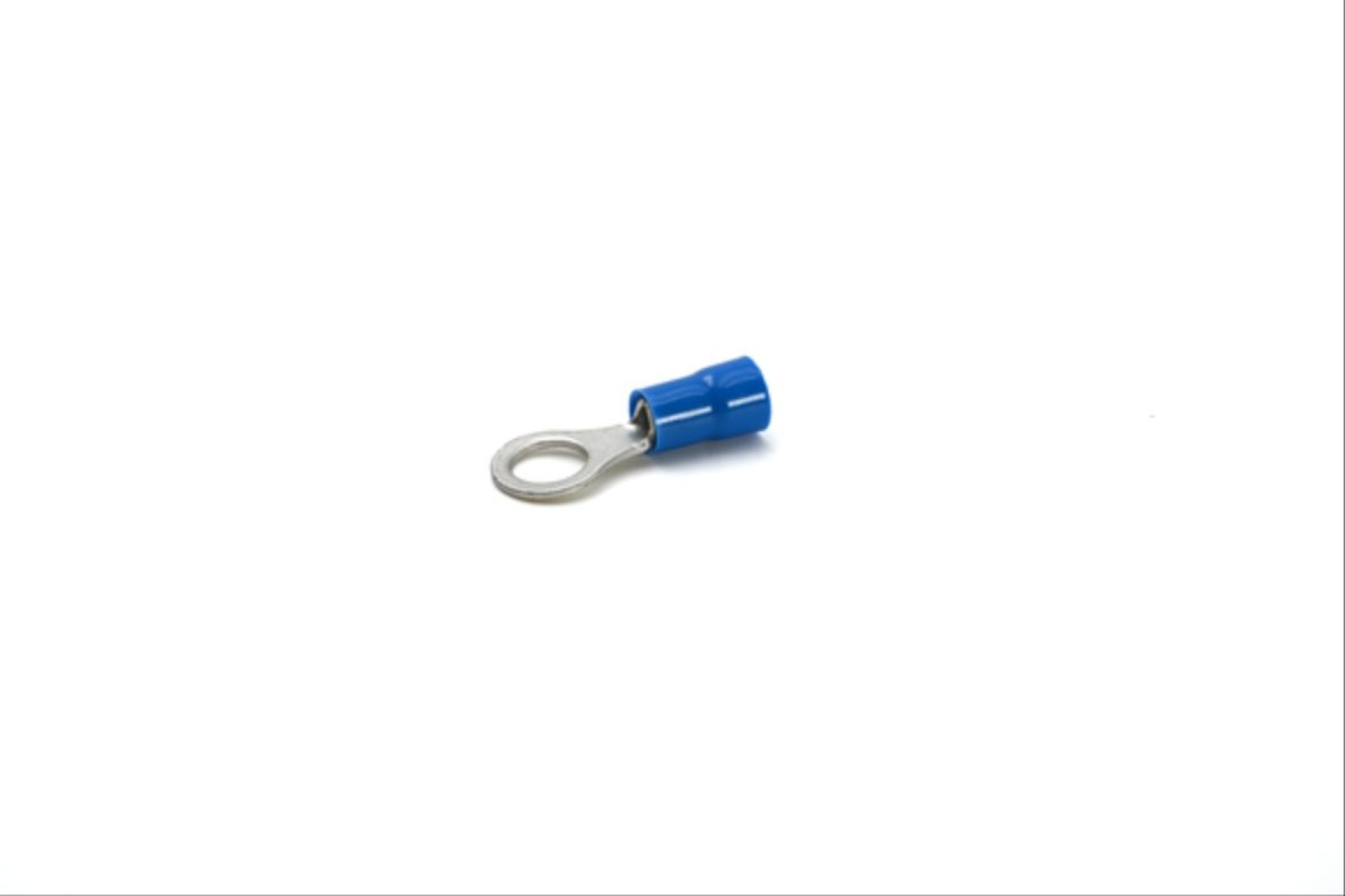

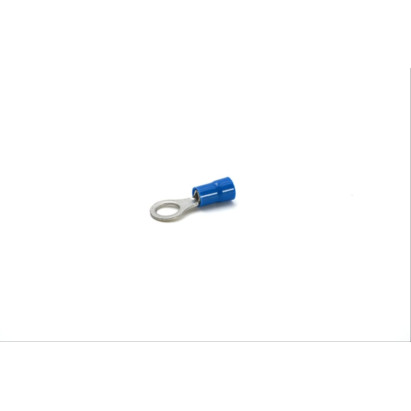

BP-M6 CJ3726 Blue 6mm 1.5-2.5mm² £8.93
BP-M8 JZ0567 Blue 8mm 1.5-2.5mm² £17.96
BP-M10 JZ0616 Blue 10mm 1.5-2.5mm² £20.48
BP-M12 JZ0601 Blue 12mm 1.5-2.5mm² £22.58
GP-M4 Yellow 4mm 4-6mm² £14.81
GP-M5 Yellow 5mm 4-6mm² £14.81
GP-M6 CJ0694 Yellow 6mm 4-6mm² £15.65
GP-M8 CJ0817 Yellow 8mm 4-6mm² £16.38

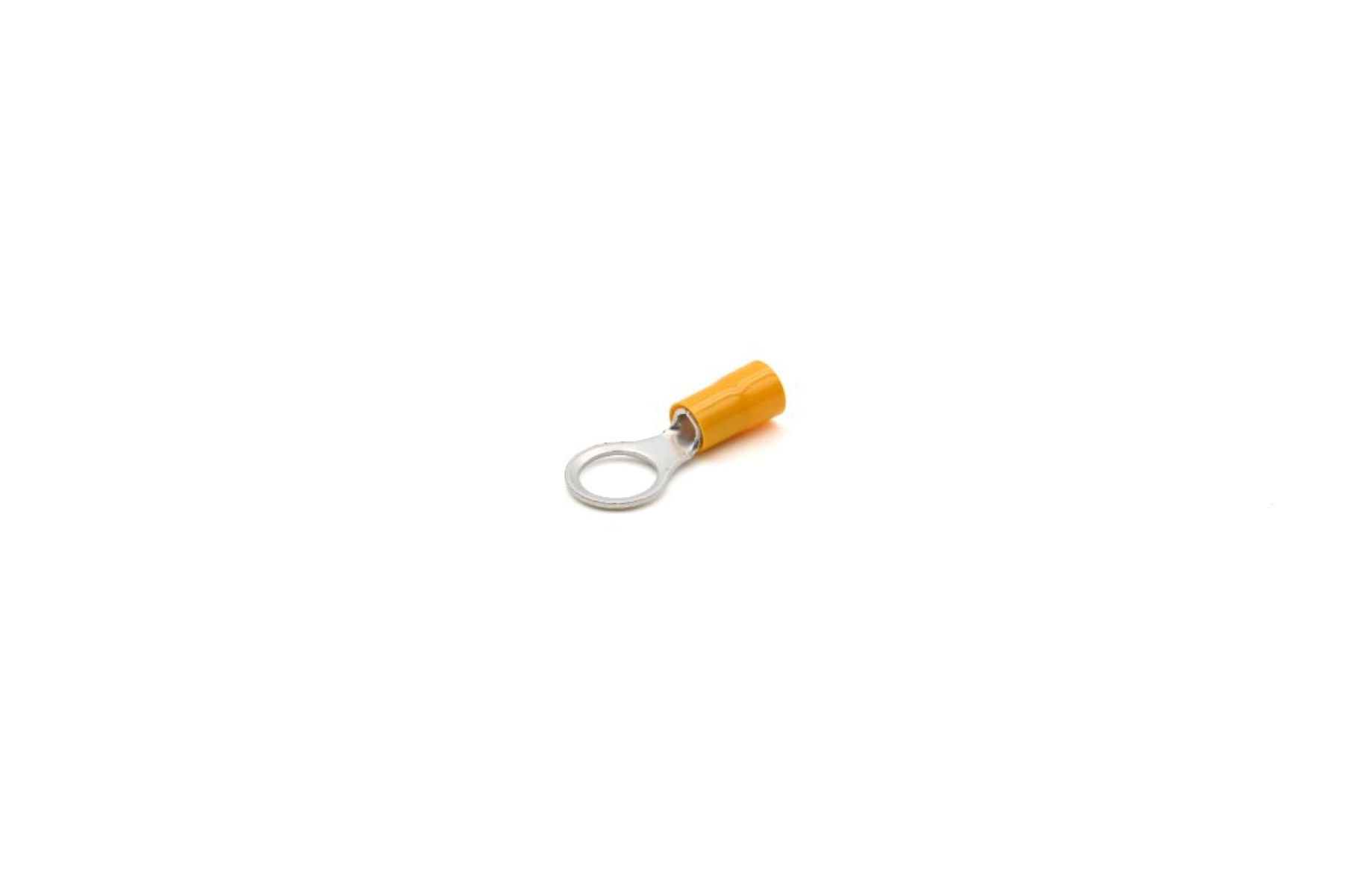

GP-M10 CJ0860 Yellow 10mm 4-6mm² £17.80
GP-M12 JZ0676 Yellow 12mm 4-6mm² £30.45
