  • Ring Terminals-PVC

Ring Terminals-PVC

from only £4.73 Ex VAT

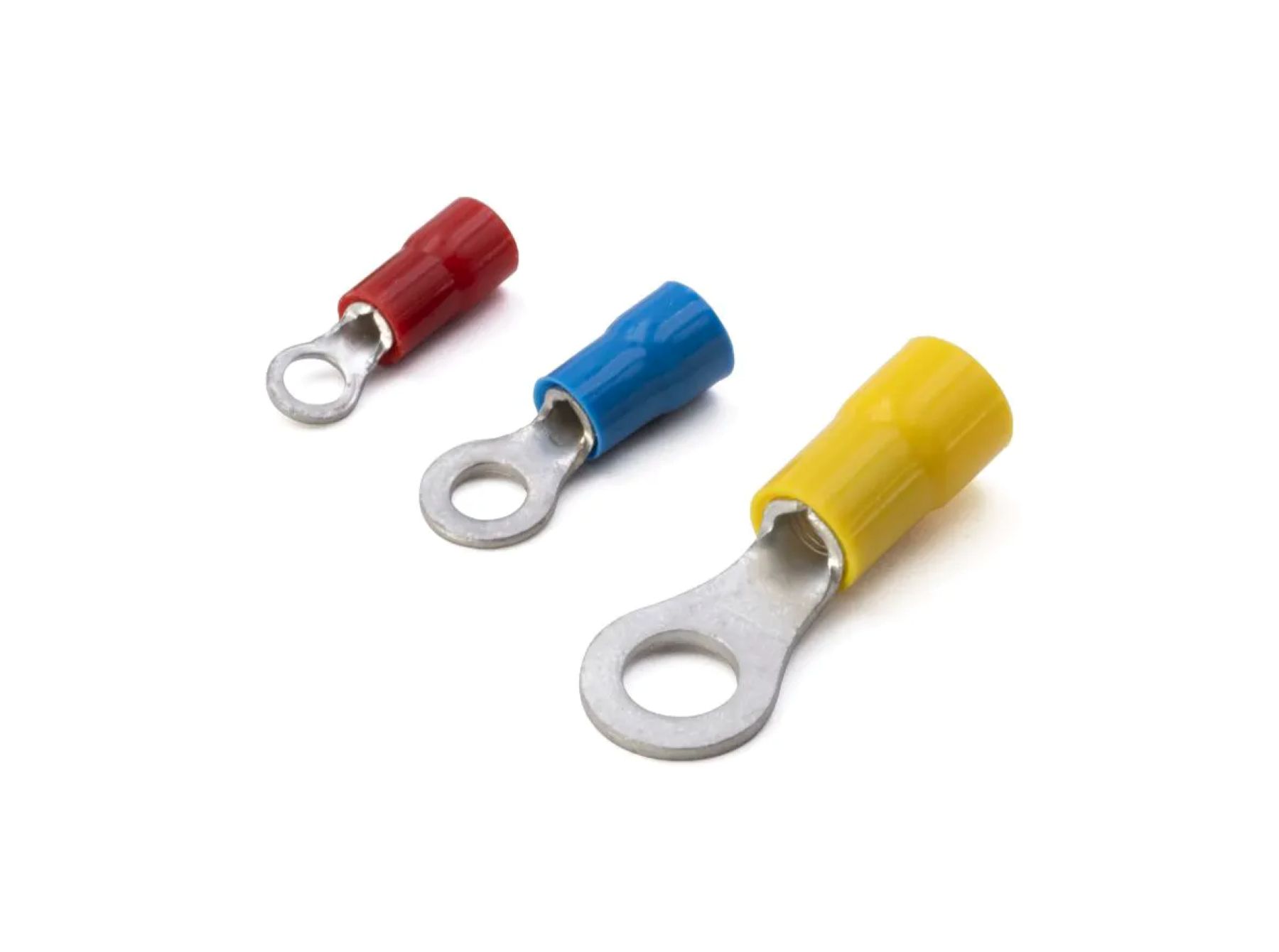

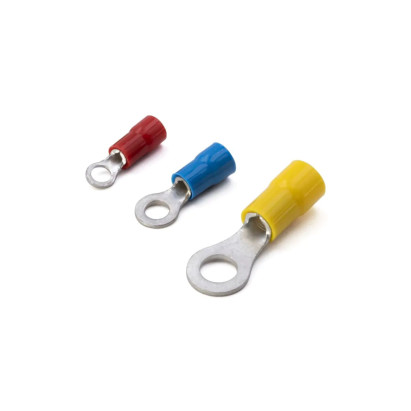

Cembre Ring Terminals PVC Red, Blue & Yellow

Unique funnel shape guaranteeing total insertion of the conductor strands into the terminal barrel, creating a secure and reliable electrical and mechanical connection.

  • The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and aid to increase tensile strength
  • Pre-insulated PVC
  • Terminals with funnel entry
  • Manufactured by Cembre
  • Manufactured from tin plated electrolytic copper
  • Price per 100

OTHER SIZES AVAILABLE – PLEASE CONTACT YOUR LOCAL OFFICE TO RECEIVE A QUOTATION

Datasheets
Order
Part Number Wolseley Code Colour Hole Size Conductor Size Price Ex VAT Quantity
RP-L4/3 (90 DEG ELBOW) CJ0645 Red 4mm 0.25-1.5mm² £11.55
RF-M3 CJ0807 Red 3.2mm 0.25-1.5mm² £5.88
RF-M3.5/1 CJ3885 Red 3.7mm 0.25-1.5mm² £6.35

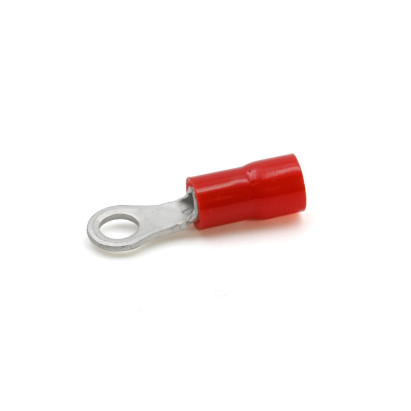

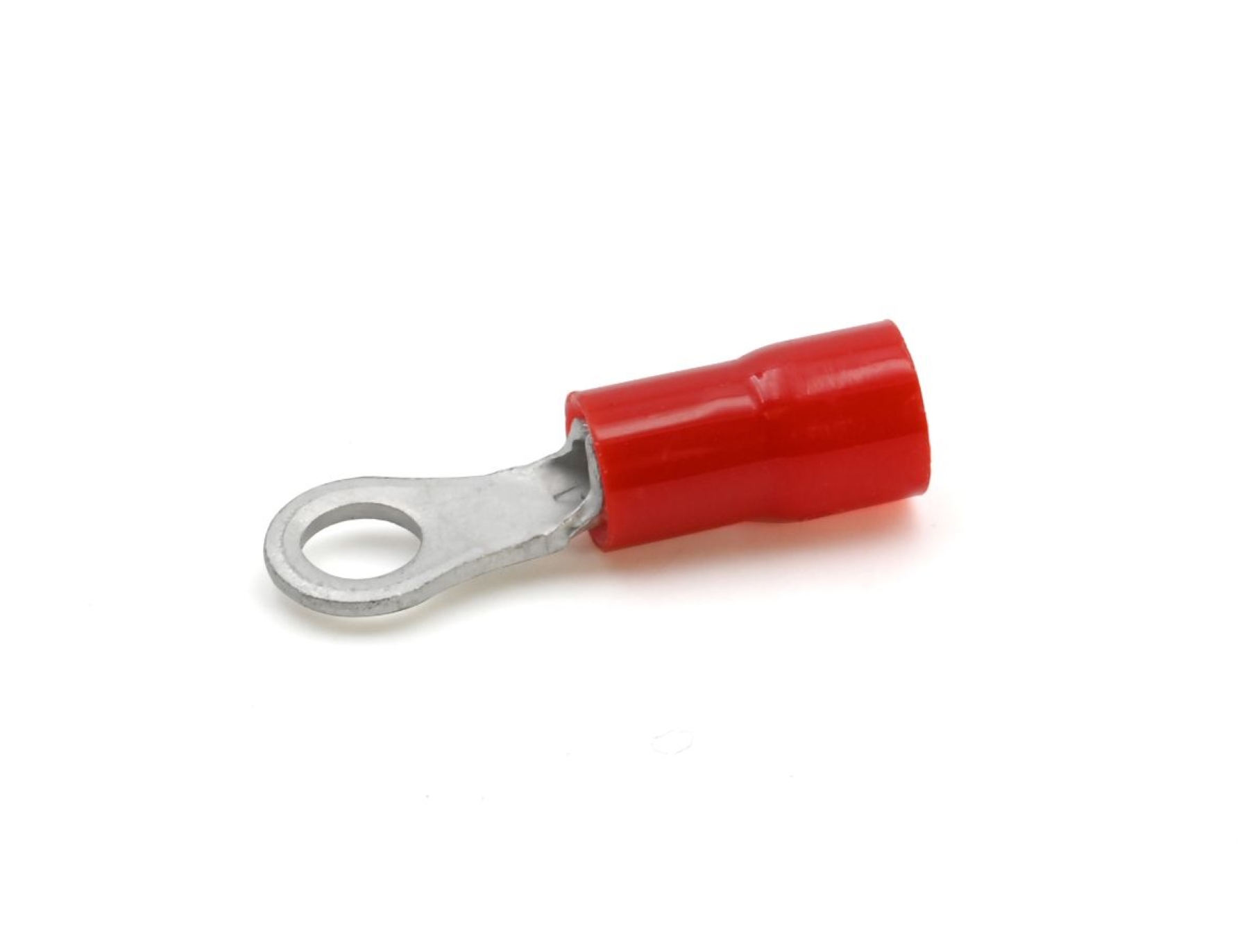

RF-M4 CJ0867 Red 4mm 0.25-1.5mm² £4.73
RF-M5 CJ0884 Red 5mm 0.25-1.5mm² £5.41
RF-M6 CJ0847 Red 6mm 0.25-1.5mm² £5.46
RF-M8 CJ0845 Red 8mm 0.25-1.5mm² £9.71
RF-M10 CJ0842 Red 10mm 0.25-1.5mm² £17.96

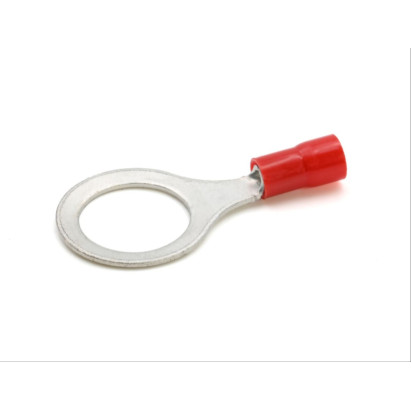

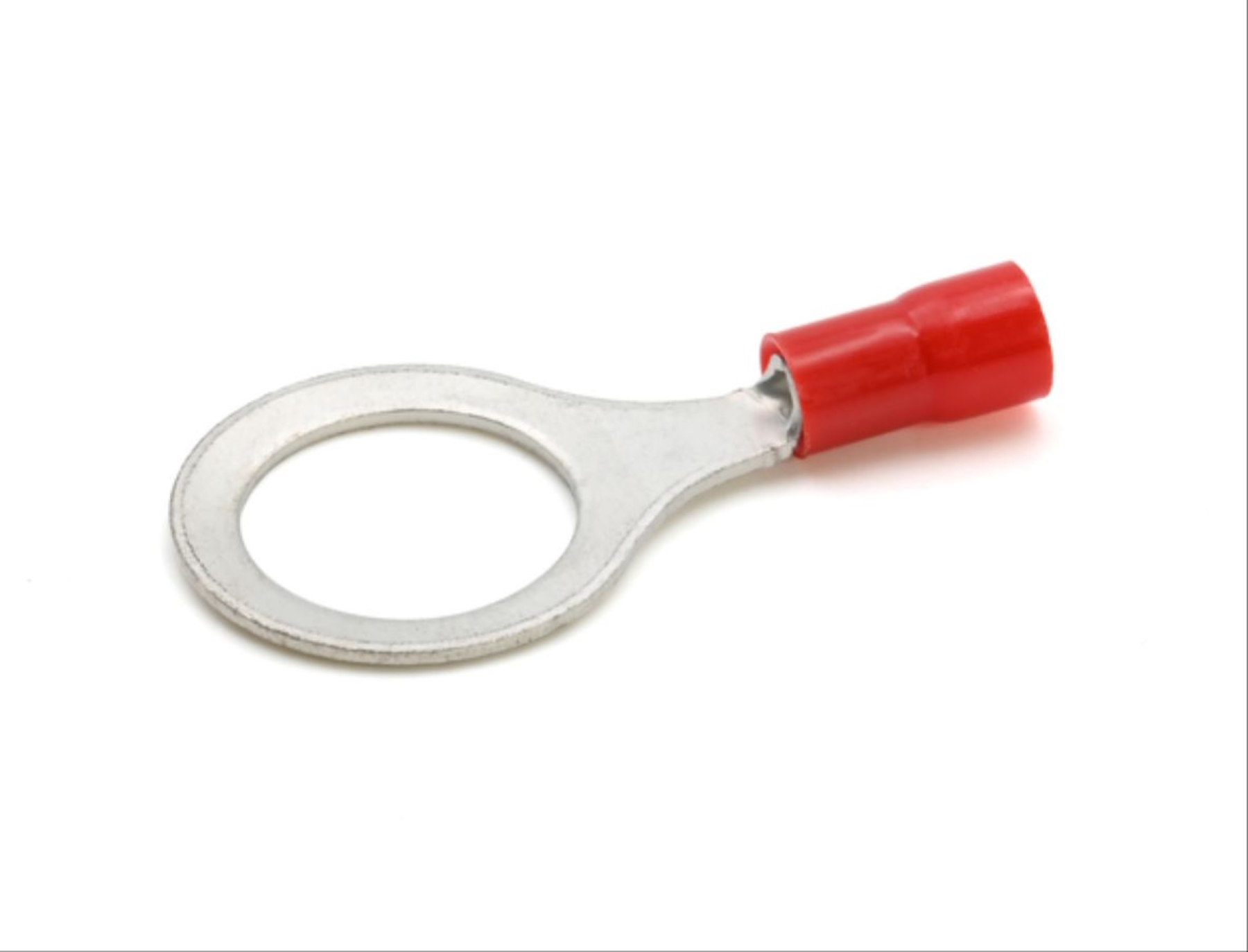

RF-M12 CJ0837 Red 13mm 0.25-1.5mm² £19.01
BP-L4 (90 DEG ELBOW) CJ0635 Blue 4mm 1.5-2.5mm² £12.60

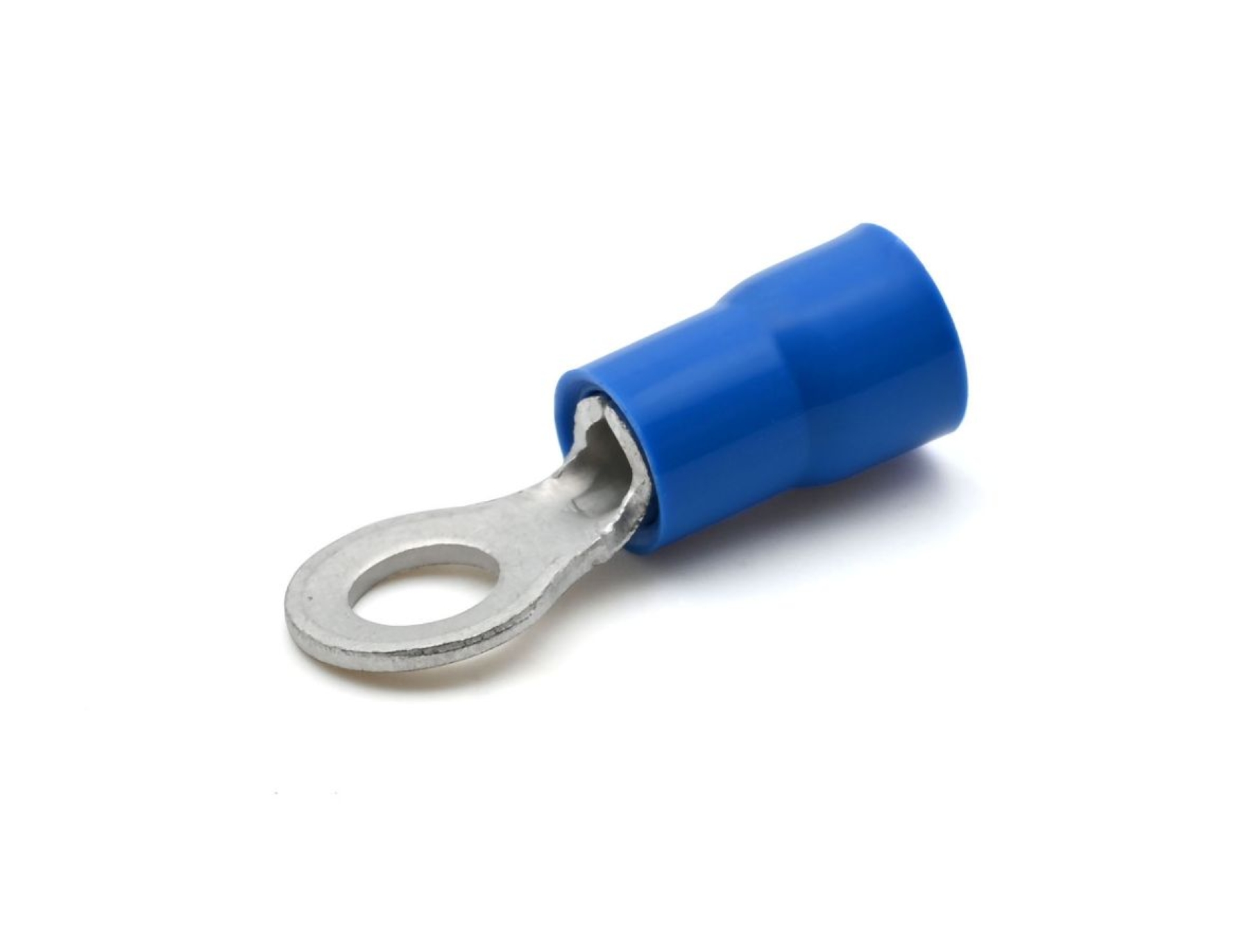

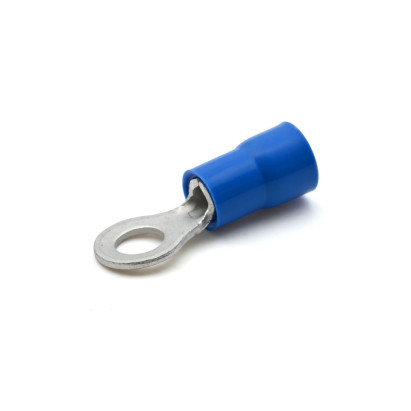

BF-M3 JZ0283 Blue 3mm 1.5-2.5mm² £5.88
BF-M3.5/1 CJ3886 Blue 3.2mm 1.5-2.5mm² £6.72
BF-M4 CJ0794 Blue 4mm 1.5-2.5mm² £5.20
BF-M5 CJ0695 Blue 5mm 1.5-2.5mm² £5.41
BF-M6 CJ0298 Blue 6mm 1.5-2.5mm² £5.46
BF-M6/1 CJ3887 Blue 6mm 1.5-2.5mm² £7.88
BF-M8 CJ0892 Blue 8mm 1.5-2.5mm² £7.61
BF-M10 CJ0781 Blue 10mm 1.5-2.5mm² £17.96

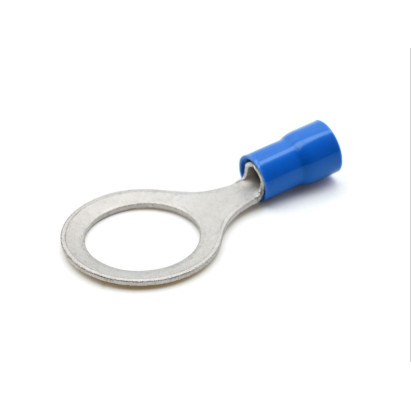

BF-M12 CJ0803 Blue 12mm 1.5-2.5mm² £19.01
GF-M3 JZ0396 Yellow 3mm 4-6mm² £9.98
GF-M4 CJ0836 Yellow 4mm 4-6mm² £8.30
GF-M5 CJ3888 Yellow 5mm 4-6mm² £8.61
GF-M6 CJ0622 Yellow 6mm 4-6mm² £9.19
GF-M6/1 CJ3889 Yellow 6mm 4-6mm² £10.87
GF-M8 CJ0702 Yellow 8mm 4-6mm² £10.61

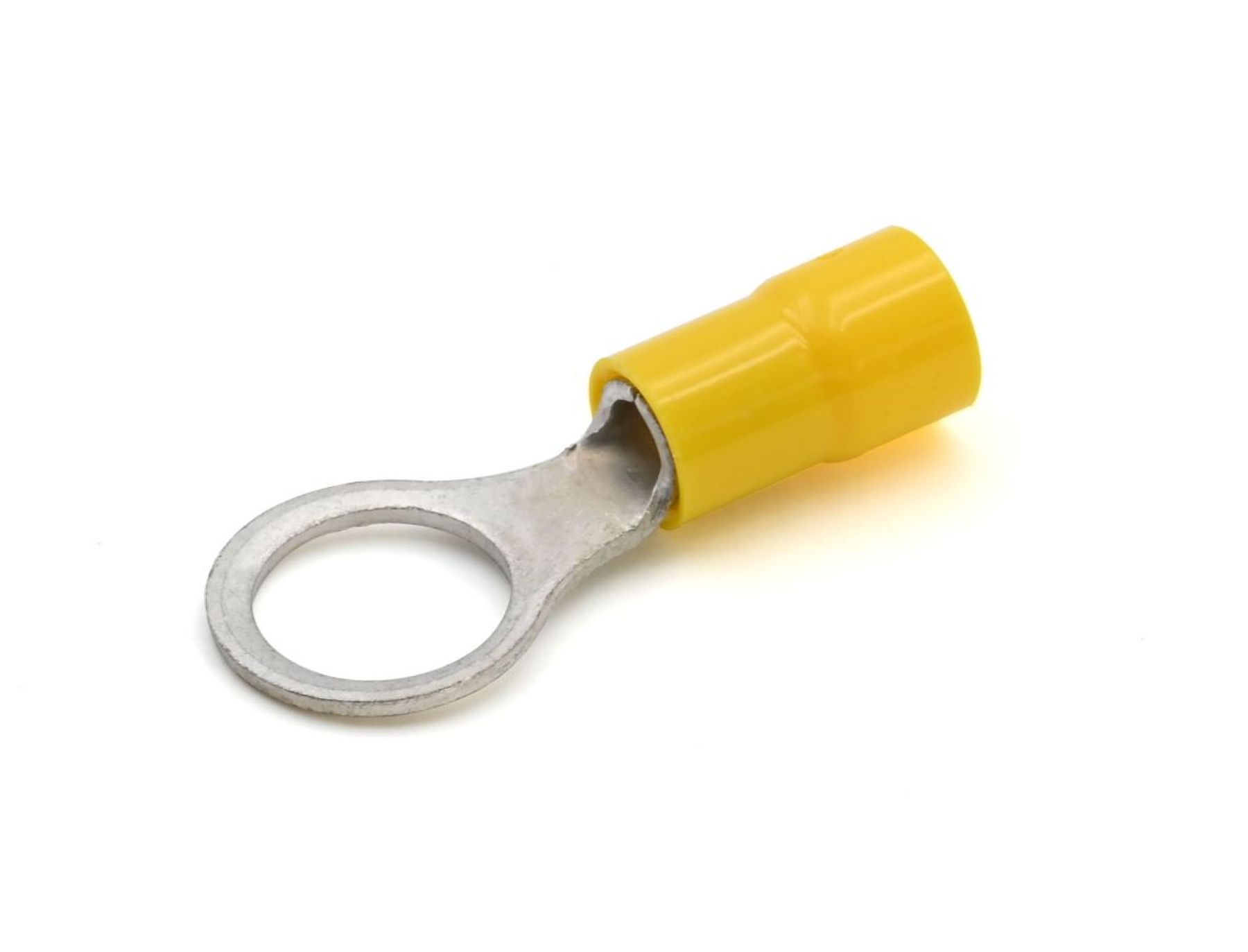

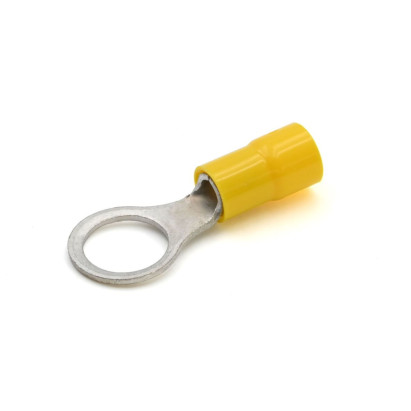

GF-M10 CJ0711 Yellow 10mm 4-6mm² £14.23
GF-M12 CJ0736 Yellow 12mm 4-6mm² £25.67
