Rod To Cable Type GUV


from only £10.47 Ex VAT

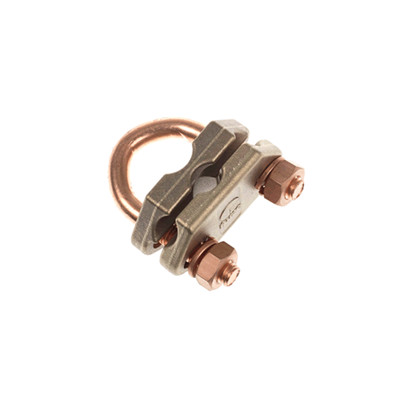

Furse Rod to Cable Clamp (Type GUV)

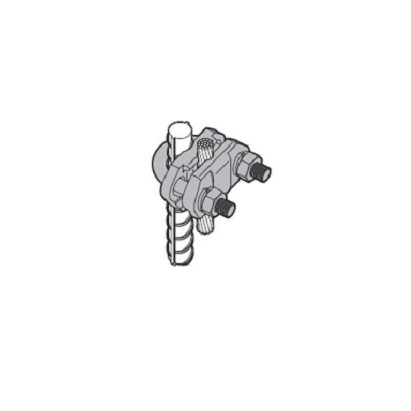

  • Designed to facilitate the connection of rod or rebar to larger sizes of copper cable
  • Manufactured from high quality copper & aluminium alloys
  • Phosphor bronze fittings
Technical Data

Material:  Copper alloy

CR700

  • Conductor diameter: 16-95mm square 16-70mm
  • Weight: 0.39kg
  • Nominal Rod/Rebar Diameter 5/8-3/4 Inch (16-20mm)

CR705

  • Conductor diameter: 70-185mm
  • Weight: 0.39kg
  • Nominal Rod/Rebar Diameter 5/8-3/4 Inch (16-20mm)

CR710

  • Conductor diameter: 16-70mm
  • Weight: 0.39kg
  • Nominal Rod/Rebar Diameter 1 Inch (25mm)

CR730

  • Conductor diameter: 150-300mm
  • Weight: 0.62kg
  • Nominal Rod/Rebar Diameter 5/8-3/4 Inch (16-20mm)
Order
Part Number Wolseley Code Rod Diameter Conductor Range U-Bolt Material Price Ex VAT Quantity
CR700 CJ0041 5/8” (16mm) 16-95mm² 37mm £10.47
CR705 CJ2082 5/8” (16mm) 70-185mm² 37mm £10.53
CR710 CJ3460 1” (25mm) 16-70mm² 37mm £17.27
CR730 CJ4191 5/8” (16mm) 150-300mm² 37mm £20.79
CR740 CJ4078 1” (25mm) 70-150mm² 37mm £27.83
CR750 1” (25mm) 150-300mm² Copper £36.75
